- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the Ranger 2212, to which this declaration relates, is in conformity with European Standard EMC EN-55022:2006+A1:2007 Class B, EN 61000- 3-2:2006, EN 61000-3-3:2003, and EN 55024:1998+A2:2003.
-
Page 3: Table Of Contents
Contents Introduction ..........................................Ranger Product Contents ..........................Requirements ......................... About the Ranger Installation guide ..........................................Installing the LEX unit ........................Installing the REX unit ..................Connecting the LEX unit to the REX unit ......................Checking the Installation ......................Connecting a USB Device Troubleshooting .................... -

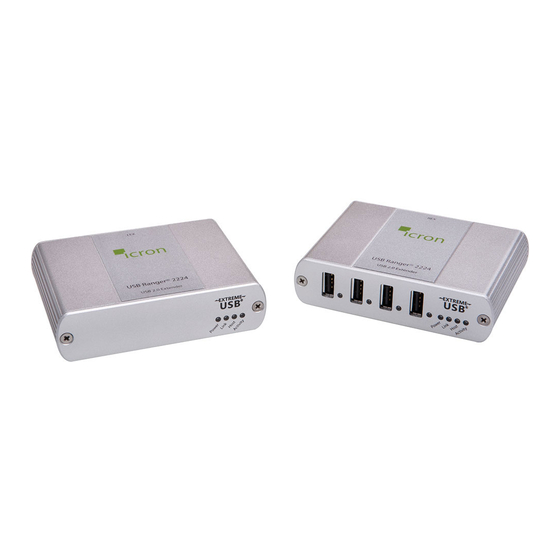

Page 4: Introduction
Quick Start Guide and Warranty Information An additional AC power adapter may be purchased for the LEX unit in the event that your USB port can not supply the required 500mA current. Please contact an Icron Sales representative for further details (See Page 13). Requirements... - Page 5 The LEX unit The LEX unit connects to the computer using a standard USB cable. Power for this unit is provided by the USB on the host computer. Front View Rear View ITEM TYPE DESCRIPTION LED turns on when power is supplied. Off when no power is Power LED (Blue) supplied.
- Page 6 The REX Unit The REX unit provides USB Type A ports for standard USB devices. The REX unit allows you to connect up to four USB devices directly. Additional devices may be connected by attaching USB hubs to the REX unit. The REX unit is powered by an external AC adapter and can supply up to 500mA to each USB port.
-
Page 7: Installation Guide
Installation guide Fiber Optic Link Cabling 50/125 m (500m) MMF or 62.5/125 m (275m) MMF cabling are required. The cabling subsystem must provide a duplex connection with crossover, and must be terminated with Duplex LC connectors at both ends. Installing the Ranger 2224 System Before you can install the Ranger 2224, you need to prepare your site: Determine where the computer is to be located and set up the computer. -
Page 8: Connecting The Lex Unit To The Rex Unit
Connecting the LEX unit to the REX unit To ensur 500 meters. The cabling must provide a duplex connection with crossover and must be terminated with Duplex LC connectors at both ends. With Surface Cabling With Premise Cabling Plug one end of the 2 Plug the other end of the 2 Checking the Installation On the LEX and REX units, check that the Power, Host, and Link LEDs are on and that the Activity LED... -
Page 9: Connecting A Usb Device
Connect the USB device to the device port on the REX unit. Check that the device is detected and installed properly in the operating system. Compatibility However, Icron Technologies Corporation does not guarantee that all USB devices are compatible with the over extended distances. Troubleshooting The following table provides troubleshooting tips. - Page 10 PROBLEM CAUSE SOLUTION Link LED on LEX/ 1. Disconnect all USB devices from the REX unit. REX units are on, powered on. Host LED on LEX/ 2. Disconnect the LEX unit from the computer. REX units are off. connected to the computer 3.
- Page 11 USB device is 1. Install the required USB device driver on the attached to REX appropriate driver installed on computer operating system prior to attaching the USB port but the computer operating system. USB device to the REX unit. Please see your USB REX device LED device manufacturer’s website for details.
-
Page 12: Specifications
Frequently Asked Questions Please visit Icron’s website for answers to FAQs: http://www.icron.com/products/usb/faq.php Specifications 1640 feet (500 meters) over 50/125 m MMF Range 902 feet (275 meters) over 62.5/125 m MMF High-speed devices (480 Mb/s) (USB 2.0) USB device support Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 &... -
Page 13: Limited Hardware Warranty
Icron Technologies Corporation product or service, even if Icron Technologies Corporation, its suppliers or licensors have been advised of the possibility of such damages. -
Page 14: Obtaining Warranty Service
The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty days after Icron Technologies Corporation receives the defective product. -
Page 15: Technical Glossary
Technical Glossary USB Cables USB cables have two distinct connectors. The Type A connector is used to connect the cable from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB cable to a USB device. - Page 16 Icron Technologies Corporation 4664 Lougheed Highway, Suite 221 Burnaby, BC, V5C 5T5 Canada Tel: 604-638-3920 Fax: 604-638-3930 www.icron.com...
