Model
Description
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code

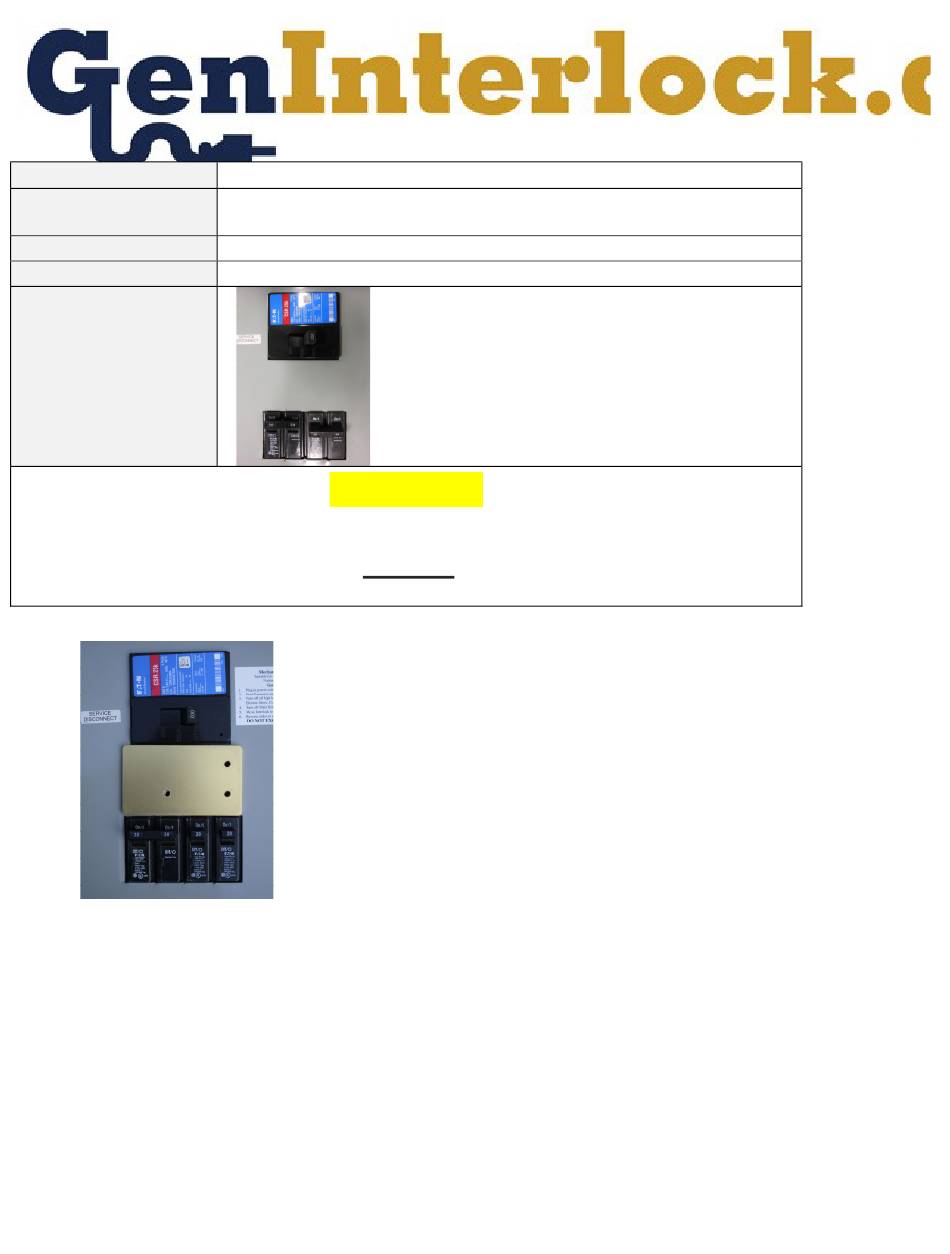

Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the branch breakers and mark holes.
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws and install
retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator breaker.
EAT-TB200
Cutler Hammer BR Series 150 & 200 Feed Thru Panel, Trailer panel
2 3/8 spacing between main and branch breakers
150 or 200 amp single handle Horizontal throw left (on) to right (off)
Top right side 2 positions
WARNING

Advertisement

loading
Need help?

Need help?

Do you have a question about the EAT-TB200 and is the answer not in the manual?

Questions and answers

Summary of Contents for GenInterlock EAT-TB200

  • Page 1 EAT-TB200 Model Cutler Hammer BR Series 150 & 200 Feed Thru Panel, Trailer panel Description 2 3/8 spacing between main and branch breakers 150 or 200 amp single handle Horizontal throw left (on) to right (off) Main Breaker Top right side 2 positions...
  • Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
