Summary of Contents for Proactive PROTEKT AKRA BARIATRIC PMBAB48

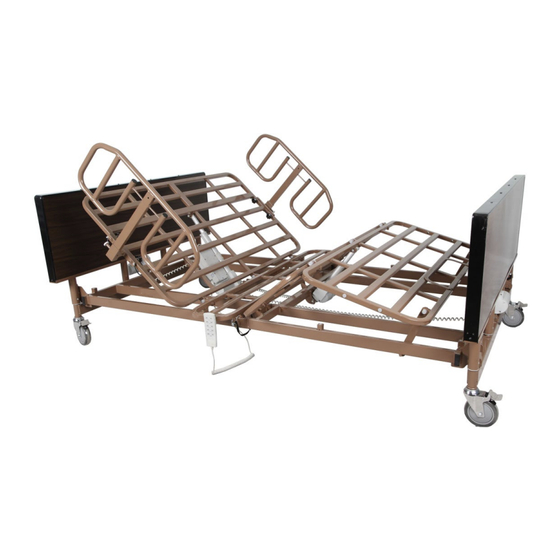

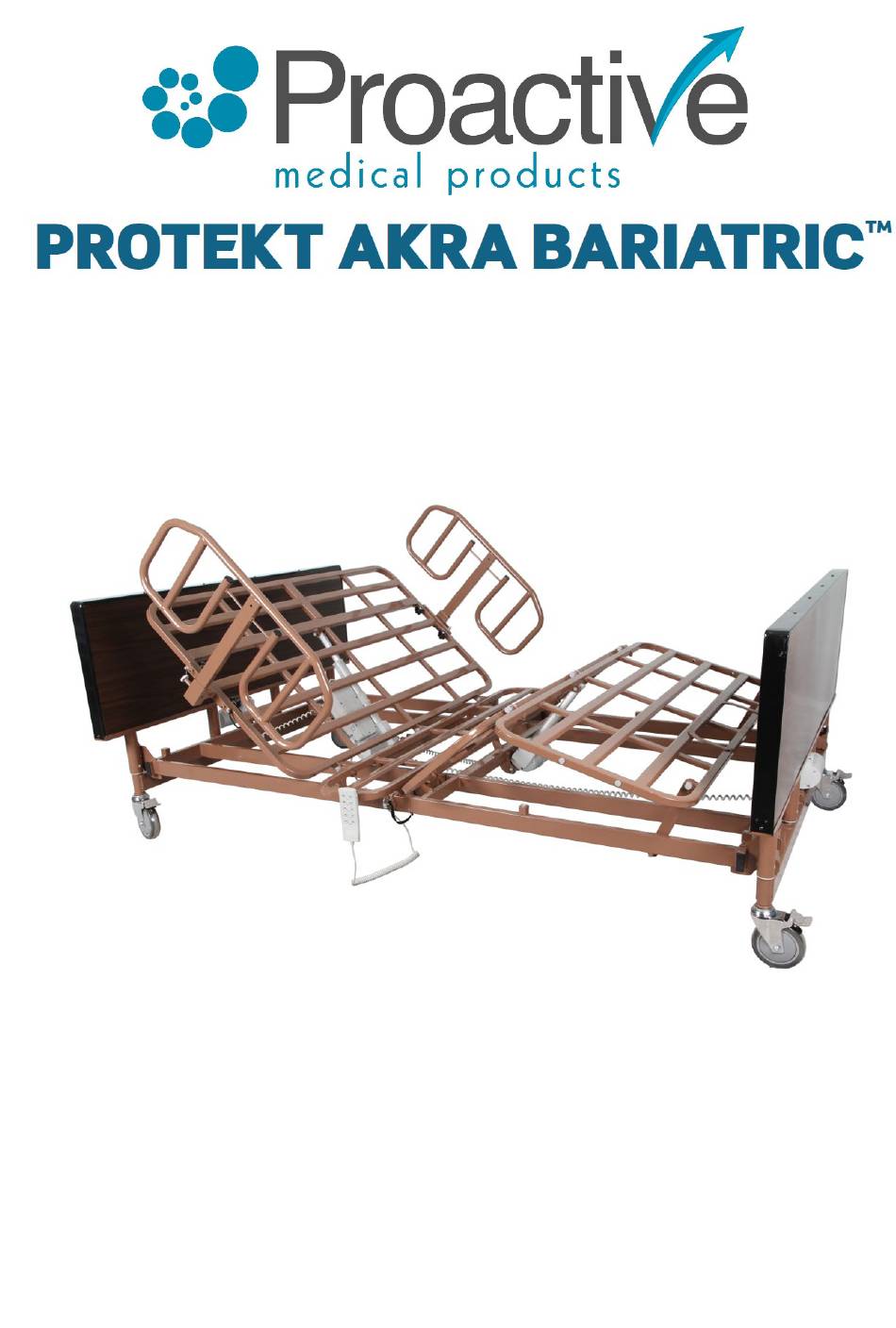

- Page 1 Full Electric Bed w/Half Rails 48” Width / 54” Width Model: PMBAB48 / PMBAB54 User Manual 590 Franklin Avenue Mount Vernon, NY 10550 855-237-7622 www.proactivemedical.com...
- Page 2 Proactive Medical Products. Proactive Medical Products reserves the right to make changes to the design, characteristics and models without prior notice. The only warranty provided by Proactive Medical Products is the express written warranty offered upon the sale of its products.
- Page 3 Table of Contents General Information ..................1 Symbol definitions .................. 1 Intended Use ................... 2 Safety Precautions ................. 2 Unpacking the Bed ..................2 Assembling the Bed ..................2 Operating the Bed ..................3 Performing Maintenance ................4 Electrical and Earthing................4 Radio Frequency and Interference ............
- Page 4 General Information Symbol definitions Signal words with symbols are used in this manual to improve readability and increase understanding of its content. These symbols are also designed to highlight hazards or unsafe practices which could result in personal injury or property damage.
- Page 5 Intended Use The PROTEKT AKRA BARIATRIC™ Full Electric Bariatric Bed is intended for use within an institutional healthcare environment, i.e., nursing homes, rehabilitation care, assisted living. The bed is not a transport device. The wheels on the bed are for positioning the bed only.
- Page 6 Operating the Bed WARNING Do not operate your bed until it is fully assembled and checked. Do not exceed maximum weight limitations of the bed. Always make sure the power cable is clear of any moving parts of the bed before switching on the power.
- Page 7 For maximum resident safety, casters should be locked at all times, except when moving the bed. Performing Maintenance WARNING Only qualified personnel should carry out the bed maintenance. Do not attempt to open the pre-sealed actuator or obtain local service. Doing such will void the warranty and might result in damage.
- Page 8 Radio Frequency and Interference WARNING Most electronic equipment is influenced by Radio Frequency Interference (RFI). Caution should be exercised with regard to the use of portable communication equipment in the area around such equipment. If RFI causes erratic behavior, switch the power off immediately. Do not turn the power switch on while transmission is in progress.
- Page 9 Reducing the Risk of Entrapment WARNING The Hospital Bed Safety Workgroup (HBSW) in partnership with the FDA has recognized potential entrapment zones in hospital bed systems and has developed dimensional guidance to reduce the risk of entrapment. They have identified seven zones in the bed system where there is a potential for patient entrapment.
- Page 10 Steps to Prevent Bed Fires Inspect the bed’s power cord for damage. Connect the power cord directly into a wall-mounted outlet that is in good working order, with no cracks or chips. The plug should fit tightly into the outlet.
- Page 11 Technical Specifications These are average values, which may vary according to manufacturing tolerances. Model PMBAB48 Bed Height 13” – 24.5” Back Rest Angle 0° - 70° Knee Break Angle 0° - 40° Additional Manual Leg Lift Trendelenburg / Reverse Trendelenburg Safe Working Load (SWL) 750 LBS Sleeping Surface Dimension...
- Page 12 Model PMBAB54 Bed Height 13” – 24.5” Back Rest Angle 0° - 70° Knee Break Angle 0° - 40° Additional Manual Leg Lift Trendelenburg / Reverse Trendelenburg Safe Working Load (SWL) 1000 LBS Sleeping Surface Dimension 54” x 80” Width x Length Caster Size 5”...
- Page 13 Equipment Assembly CAUTION Use only parts supplied by Proactive Medical Products for assembly to ensure correct alignment of all parts for safe operation. Handling Procedures Check for any obvious damage to the carton. If damage is evident, notify the carrier and the dealer.
- Page 14 Components Components Description Piece Head Deck with Control Box Foot Deck with Mattress Retainer 1 Head/Footboard with Motor Half Rail Caster Head Deck with Control Box x 1 Foot Deck with Mattress Retainer x 1 Head/Footboard with Motor x 2 Half Rail x 2 Caster x 4...
- Page 15 Assembling the Bed Assembling the Frame 1. Place both the head deck and foot deck on the ground and make sure the sleep surface of each deck is facing upwards. 2. Align the four flanges with the receptacles. Connect the two decks by sliding the two sides together.
- Page 16 3. Secure the head deck and foot deck with the cotter pin. Lock the cotter pin with the attached clasp. 4. Repeat the same procedures on the opposite side.
- Page 17 Installing the Casters 1. Take the headboard and lay it flat on the ground. 2. Take two casters and align the flanges with the receptacles at the bottom of the headboard frame. Insert the flange all the way up to the receptacle.
- Page 18 Assembling the Head/Footboard 1. The head/footboards are side specific. Assemble the headboard and footboard on respective sides according to the labeling. 2. Install the headboard by aligning the frame mounting hooks over the bed end mounting pins and push the frame down to secure in place. 3.
- Page 19 Installing the Rails 1. Before installing the rails, the bed should be in a flat position. 2. Remove the rubber cover for the appropriate holes. INFORMATION The holes are pre-cast on the outer side of the bed frame and plastic washers are pre-installed on the corresponding inner side.
- Page 20 3. Loosen the turn knobs pre-fastened on the rail. 4. The rails are side specific. Place right and left rails on respective sides according to the labeling. 5. Take the rail and insert the studs into precast holes. 6. Fasten the turn knob to secure the rail in place. 7.
- Page 21 Connecting the Control Box (Item# BP-BAR-CB) Upon opening the control box, each motor connection port is color coded for ease of identification. 1. DC Port 2. Back Motor (Green) 3. Foot Motor (Red) 4. Head Hi-Lo Motor (Yellow) 5. Foot Hi-Lo Motor (Yellow) 6.
- Page 22 Equipment Operation Positioning the Bed 1. To lock the bed, step on the lever at the front and rear casters. 2. To unlock the casters, step on the “OFF” lever at the rear of the bed. CAUTION Head end caster must be unlocked when raising and lowering the bed. Using the Mattress Retainer 1.
- Page 23 Using the Hand Pendant (Item# BP-BAR-PNDT) The up arrow (▲) indicates raising the corresponding parts of the bed. The down arrow (▼) indicates lowering the corresponding parts of the bed. 1. Use button 1 and 2 to adjust the backrest up or down. 2.
- Page 24 Operating the Bedrails (Optional Accessory) INFORMATION Installation refers to page 16 and 17. Half Rail (Item# BP-HRBA) Raise bed rail: While holding onto the top part of the rail, raise the rail upwards until it is securely locked in place. ...
- Page 25 Troubleshooting Guide Symptoms Possible Faults Possible Solutions Bed idle when hand Adjustment may be at Check if other buttons pendant buttons are the maximum or are working. pressed. minimum position. Power cord not Ensure the power cord is connected or damaged. properly connected to the electrical socket and the bed.
- Page 26 The warranty does not extend to nondurable components, such as rubber accessories, casters and etc. which are subject to normal wear and need periodic replacement. If you have a question about your Proactive Medical device or this warranty; please contact an authorized Proactive Medical dealer.
- Page 27 Appendix Service record Date Performed by Condition Report...
- Page 28 Date Performed by Condition Report...
- Page 29 590 Franklin Avenue Mount Vernon, NY 10550 855-237-7622 www.proactivemedical.com...
