32500
MODEL
OWNER'S MANUAL
AND INSTRUCTION GUIDE
BEFORE USE:
Ensure the product has been assembled according to the
instructions in this manual.
All operators should have received or read and understood
the instructions for safe and proper operation of the
Protekt® Dash.

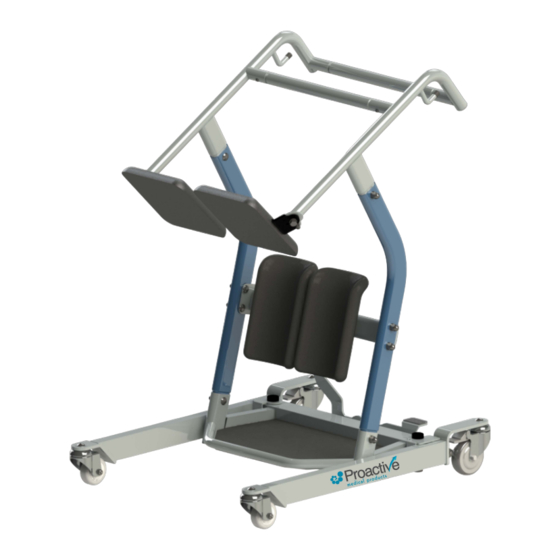

PROTEKT® DASH
STANDING TRANSFER
-
m -a
"Tl ,,
!t
0
CD
C
:;a
mn
-
en
-I
,.
en
en
m
I:
-
m
�
-
io
-a
-I
::a m
�!
-I -
-
-z
i
C,
tA
:e ,.
-a
z
Advertisement
Related Manuals for Proactive PROTEKT DASH 32500
Summary of Contents for Proactive PROTEKT DASH 32500
- Page 1 PROTEKT® DASH Proacti� STANDING TRANSFER medical products 32500 MODEL OWNER'S MANUAL m -a "Tl ,, AND INSTRUCTION GUIDE � ::a m �! -I - :e ,. BEFORE USE: Ensure the product has been assembled according to the instructions in this manual. All operators should have received or read and understood the instructions for safe and proper operation of the Protekt®...
- Page 2 Thank you for choosing Proactive! To better serve you, please record the following information: Supplier Name: Telephone: Serial #: Date of Purchase: INSPECT YOUR MERCHANDISE ® Upon receipt of your Protekt Dash , verify that all merchandise is complete and free from any shipping damage.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS FAILURE to use this device according to instructions may cause serious injury. NEVER attempt to transfer a patient or resident whose weight exceeds the indicated maximum capacity for this device or any accessory. NEVER leave a patient unattended during transfer DO NOT use without complete understanding of safe and correct operation DO NOT use for the purpose of transportation over... -
Page 4: Product Features
PRODUCT FEATURES DESCRIPTION & APPLICATIONS from Proactive represent a class of medical devices Protekt® Dash Protekt® Dash collectively referred to a standing transfer aid. The standing transfer aid is positioned between a traditional walker or wheelchair and the common electric stand assist patient lift. The Protekt®... - Page 5 SPECIFICATIONS & OPTIONS Protekt® Dash Maximum Capacity Minimum Base Width 26.8 Maximum Base Width 37”* Open Base Width 37”* Closed Base Width 26.7” Base opens Overall Height 43.3” Base Height 4.5” Minimum Seat Height 26.7”** Seat Width 20” Overall Length 35.4”...
- Page 6 ASSEMBLY Prior to assembly, unpack all parts from the shipping carton and check for any missing parts. Contact your dealer immediately if a part is missing. Parts List 1. Cross Bar x 2 2. Right Side Arm 3. Left Side Arm 4.
- Page 7 STEP BY STEP ASSEMBLY Place the base assembly on the ease of assembly. Insert the kneepads into the support bar and secure them in place with bolts and washers (A2 + A5 + A4) as indicated below. Cover the two bolt heads with black plastic caps (A7) to complete kneepad assembly.
- Page 8 Line up the small holes on the underside of the tubes with the Insert the two cross bars into holes in the support units. the holes on the seat and handle bar support units. Use the 4 hex screws (A3) with Allen key (T2) to tighten the completed assembly.
- Page 9 Use the remaining 4 carriage bolt assemblies to securely fasten the two sub assemblies to the base unit. All of the square shoulders of the bolts should be on the inside and the washers and lock nuts on the outside. (A1 + A4 +A5 +A6)
- Page 10 Protekt® Dash as shown Protekt® Dash allows...
- Page 11 Lock the casters by stepping on the caster clip and pushing down as shown below. Have the patient grasp the cross bar closest to them and using their own strength pull themselves up into a standing position firmly on the platform as shown.
- Page 12 Have the patient lower themselves down onto the seat while keeping their knees/shins in the knee/shin pads and while still holding the cross bar with both hands as shown. Unlock the casters and place both hands on the cross bar furthest from the patient and move the standing transfer aid to the new surface.
-
Page 13: Maintenance And Inspection
MAINTENANCE & INSPECTION Protekt® Dash standing transfer is a manual unit and therefore requires minimal maintenance on an ongoing basis. However to insure safety and proper use the following steps should be taken on a monthly basis. Check all bolt/nut assemblies to make sure they are tight and no wear and tear is evident. - Page 14 ACCESSORIES Protekt® Dash standing ransfer is designed to fully support a seated patient for transport. For patients requiring some upper body support or additional security a safety belt may be used. he designed to work with the Protekt® Dash. See the pictures below for the use of th Support Strap Seat Lock...
- Page 15 Protekt® Dash Proactive Proactive Proactive This warranty shall not apply to any product which has been repaired or altered in any way so as, in our judgment, to affect its functionality and durability, nor to any product subject to abuse,...
- Page 16 270 Washington Street, Mount Vernon, NY 10553 Tel: 855-237-7622 www.proactivemedical.com...
