Acromag LNX-0702G-SFP-T

7-Port Gigabit Ethernet Switch with SFP Fiber Ports

A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .

• C r i t i c a l a n d e x p e d i t e d s e r v i c e s

• I n s t o c k / R e a d y - t o - s h i p

Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.

Limited Availability

Used and in Excellent Condition

Buy Today!

https://www.artisantg.com/57476-1

• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t

• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Need help?

Do you have a question about the LNX-0702G-SFP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ANTAIRA LNX-0702G-SFP Series

Page 1 Acromag LNX-0702G-SFP-T 7-Port Gigabit Ethernet Switch with SFP Fiber Ports Limited Availability Used and in Excellent Condition Buy Today! https://www.artisantg.com/57476-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s . •...
Page 2 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 LNX-0702G-SFP Series 7-Port Industrial Gigabit Unmanaged Ethernet Switches 5*10/100/1000Tx + 2*100/1000 SFP Slots User Manual Version 1.0...
Page 3 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
Page 4 Industrial Grade Gigabit Unmanaged Ethernet Switches User Manual Version 1.0 (August 2014) This manual supports the following models:  LNX-0702G-SFP  LNX-0702G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
Page 5 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 Table of Contents 1.Overview ............... 1 1.1 Key Features ............ 1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimension .......... 3 2.2 Front Panel ............
Page 6 In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNX-0702G-SFP series includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.
Page 7 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0  1 - User manual  1 - Product CD  2 - Wall mounting Bracket and Screws  1 - DC cable –18 AWG and DC jack 5.2x2.1mm 1.3 Safety Precaution...
Page 8 LNX-0702G-SFP Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimension Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-0702G-SFP series: 7-Port industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx and 2*100/1000SFP slots. (W x D x H) is 30mm x 99mm x 142mm Figure 2.1...

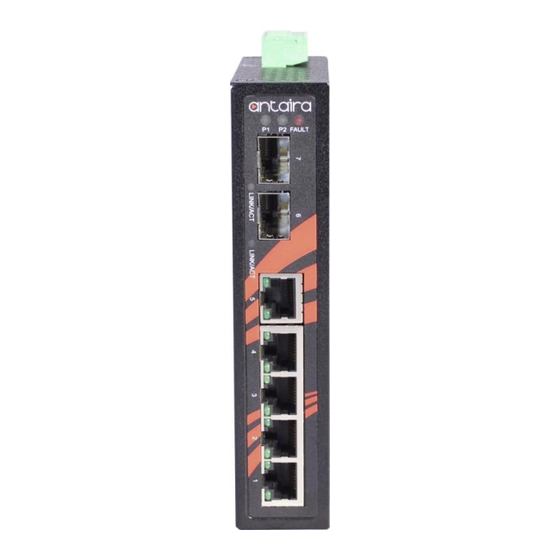

Page 9 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 2.2 Front Panel The front panel of the LNX-0702G-SFP series industrial Ethernet switch is shown below in Figure 2.2. Figure 2.2 Front Panel of the LNX-0702G-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-0702G-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Page 10 Flashing Networking is active (Right LED) Not connected to network Table 2.1 LED Indicators for the LNX-0702G-SFP Series 2.5 Ethernet Ports  RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T device connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling.
Page 11 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0  RJ-45 Pin Assignments (Table 2.2) Pin Number Assignment Table 2.2 RJ45 Pin Assignments “+” and “-” signs represent the polarity of the wires that make up each wire pair. Note All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation.
Page 12 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 The following figures show the 10, 100, and 1000 Ethernet RJ-45 pin outs. Figure 2.6 RJ45 Ethernet Port Pin Outs Figure 2.7 Figure 2.8 Straight-Through Cable Schematic Crossover Cable Schematic 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections.
Page 13 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 To connect the transceiver and LC cable, please follow the steps below. First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.9. Notice that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows SFP transceiver module was inserted.
Page 14 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 To remove the LC connector from the transceiver, please follow the steps shown below. 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.12.
Page 15 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 2.7 Wiring the Power Inputs To insert the power wire, please follow the steps below. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.14.
Page 16 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit.
Page 17 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch.
Page 18 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet switch. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Page 19 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
Page 20 LNX-0702G-SFP Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LNX-0702G-SFP series: 7-port industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx and 2*100/1000 SFP slots. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box.
Page 21 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 5. Network Application This segment provides an example of an industrial Ethernet switch application (Figure 5.1). Figure 5.1 Industrial Ethernet Switch Application Reference...
Page 22 If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ...
Page 23 Antaira Industrial Ethernet Switches LNX-0702G-SFP Series User Manual V1.0 7. Technical Specification Table 7.1 has the technical specifications for Antaira’s LNX-0702G-SFP series: 7-port industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx and 2*100/1000 SFP slots. IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX fast Ethernet Standard IEEE 802.3ab 1000BaseT...
Page 24 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
