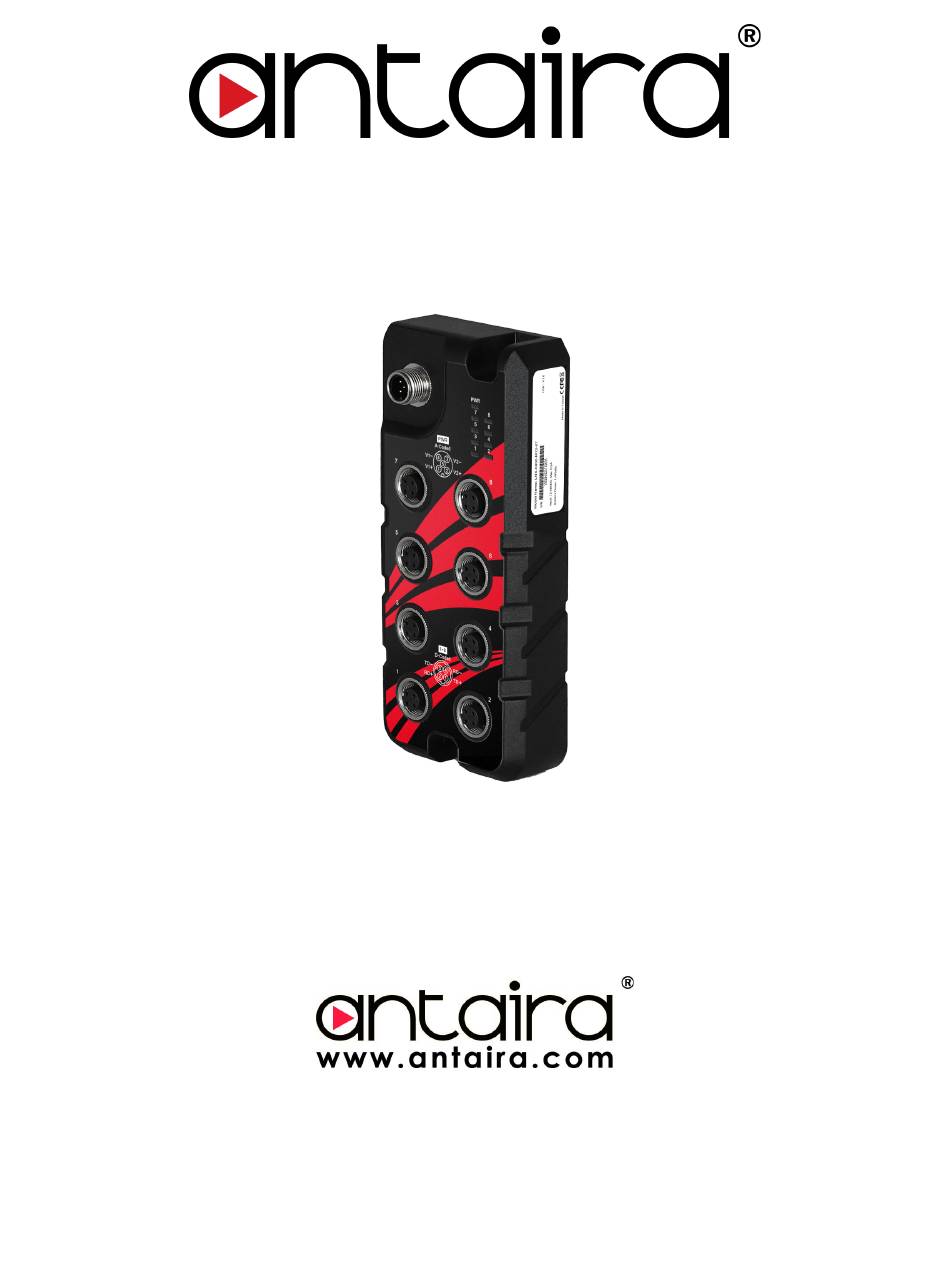

- Page 1 LNX-0800-M12-67 Series 8-Port Industrial M12 IP67 Waterproof Unmanaged Ethernet Switch, with 8*10/100TX M12 Connectors, 12~48VDC Power Input Hardware Manual Version 1.0 (February 2025)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators 2.4 Ethernet Ports... -
Page 6: Overview
Being able to operate under the standard temperature range from -10°C to 65°C or the extended temperature range from -40°C to 75°C, the LNX-0800-M12-67 Series is designed to meet any needs for industrial application and harsh environment. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 8*M12 Protective Caps 1*M12 Protective Cap for Power Input 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 66mm x 27.5mm x 152mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 11: Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 Caution: Use conductors with insulation rated for at least 60/75°C. Attention: Utilisez des conducteurs dont l'isolation est d'au moins 60/75°C. Caution: Base the conductor ampacity on a maximum termination temperature of 60/75°C. - Page 12 Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 Figure 2.3 - Grounding Screw Caution: Using a shielded cable achieves better electromagnetic compatibility. Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique...
-
Page 13: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. -
Page 14: Din-Rail Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 3.2 DIN-Rail Mounting Follow the steps below to learn how to install the DIN-Rail on the industrial Ethernet switch and how to hang the switch. Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch as shown in Figure 3.2. - Page 15 Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 Step 2. After the DIN-Rail bracket is installed on the rear side of the switch, see Figure 3.3 to mount the switch. 1. Insert the top of the DIN-Rail onto the track.
-
Page 16: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 17: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LNX-0800-M12-67 Series - Hardware Manual - v1.0 4.2 Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. ● The initial installation should be done in a way that makes this as convenient as possible. -
Page 18: Troubleshooting
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’...
