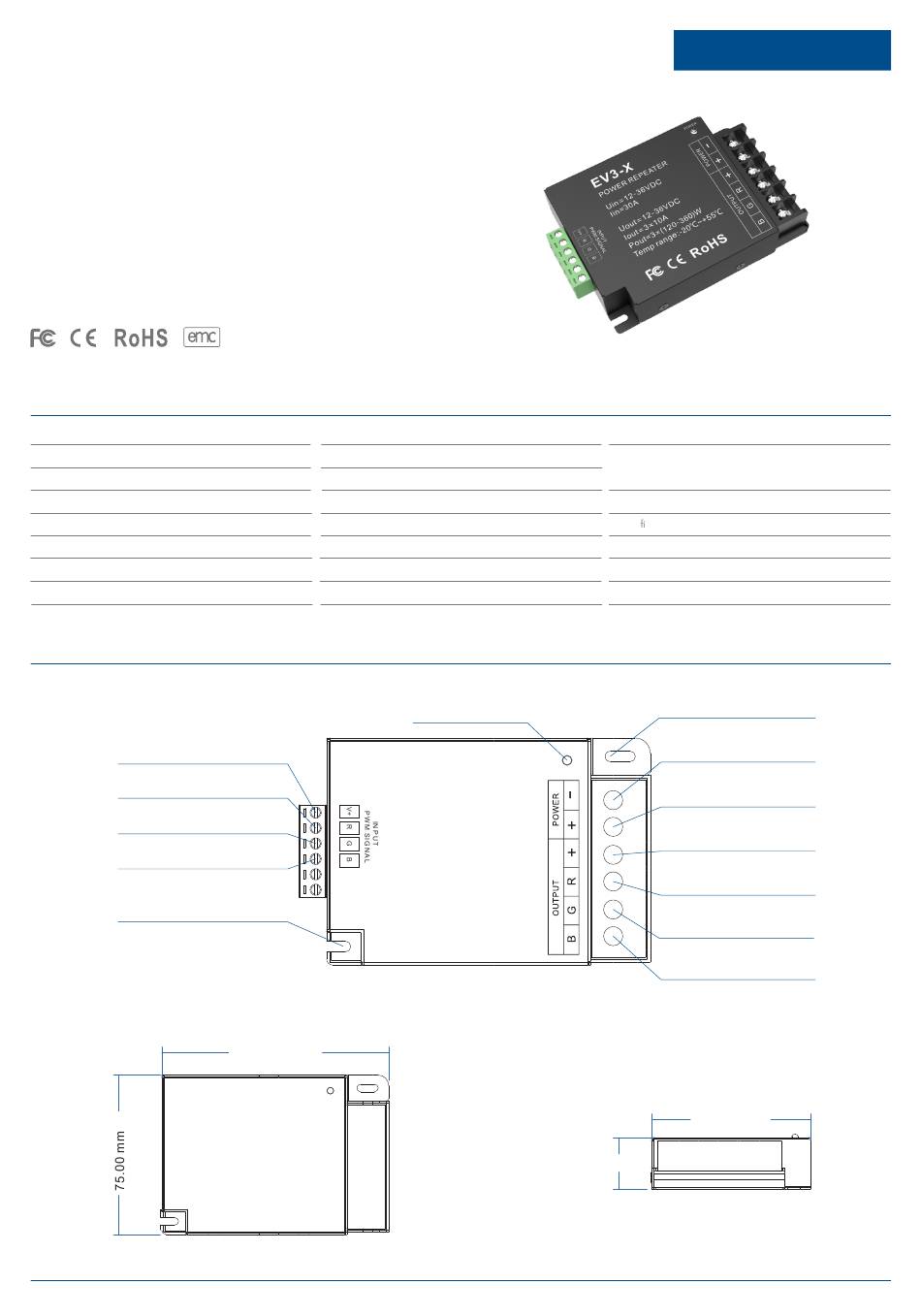

SKYDANCE EV3-X Quick Start Manual

EV3-X
3 Channel Constant Voltage Power Repeater
● 12-36V constant voltage power repeater.
● 3 channel, 10A per channel.
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color or RGB constant voltage LED strip or module.
Technical Parameters
Input and Output
Input voltage
12-36VDC
Input current 30.5A
Input signal PWM
Output voltage 3 x (12-36)VDC
Output current 3CH,10A/CH
Output power 3 x (120-360)W
Output type Constant voltage
Mechanical Structures and Installations
PWM input +
CH1/R PWM input -
CH2/G PWM input -
CH3/B PWM input -
Installation rack
User Manual Ver 1.0.5
2024.7
LVD
Warranty and Protection
Warranty
Protection
Environment
Operation temperature
Case temperature (Max.)
IP rating
107.00 mm
5 years
Reverse polarity
O O
Ta: -20 C ~ +55 C
O
Tc: +85 C
IP20
Power indicator
POWER
24.50 mm
Power Repeater
Safety and EMC
EN IEC 55015:2019+A11:2020
EN 61547:2009
EMC standard (EMC)
EN IEC 61000-3-2:2019+A11:2021
EN 61000-3-3:2013+A11:2019
EN 61347-1:2015+A1:2021
Safety standard(LVD)
EN 61347-2-13:2014+A1:2017
Certi cation CE,EMC,LVD
Package
Size L120 x W90 x H30mm
Gross weight 0.270kg
Installation rack
Power input -
Power input +
LED output +
CH1/R LED output -
CH2/G LED output -
CH3/B LED output -
75.00 mm
Page 1
