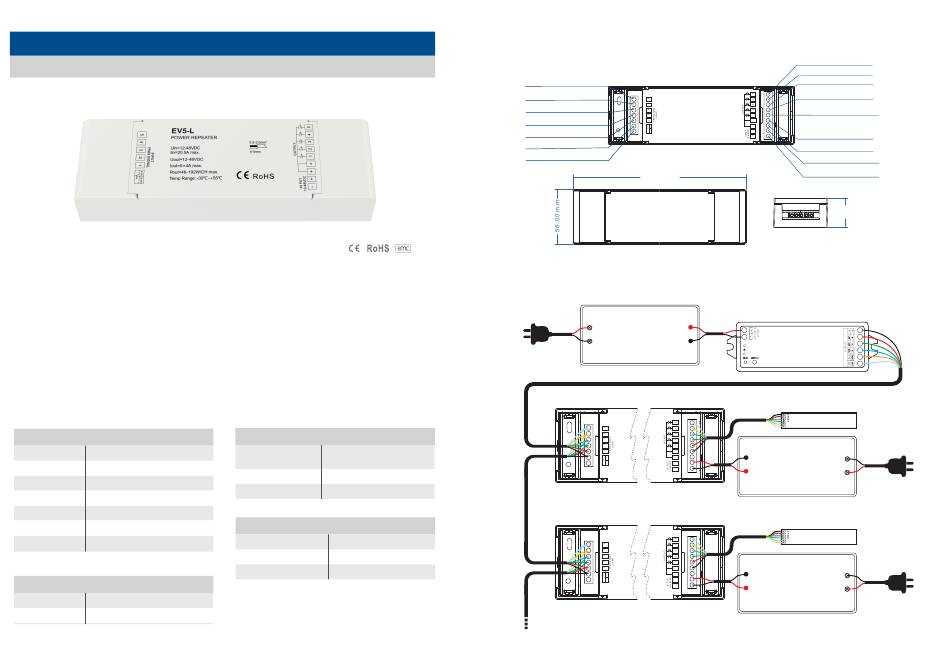

SKYDANCE EV5-L Quick Start Manual

5 Channel 12-48V Constant Voltage Power Repeater
Model No.: EV5-L
5 Channel/12-48V/PWM signal input/Constant voltage output/3KV optoelectronic isolation
Features
● 12-48V constant voltage power repeater.
● 5 channel , 4A max. per channel .
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color, dual color, RGB or RGBW or RGB+CCT constant voltage LED strip or module.
Technical Parameters
Input and Output
Input voltage
12-48VDC
Input current 20.5A max
Input signal
PWM(5CH, 5-24V or 36-48V)
Output voltage 5 x (12-48)VDC
Output current 5CH, 4A max./CH
Output power
5 x (48-192)W max.
Output type
Constant voltage
Warranty and Protection
5 years
Warranty
Protection Reverse Polarity
User Manual Ver 1.0.0
LVD
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
CE,EMC,LVD
Certification
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature ( Max. ) O
T c: +85 C
IP rating
IP20
Mechanical Structures and Installations
CH5/CW PMW input-
CH4/WW PWM input -
CH3/B PWM input -
CH2/G PWM input -
CH1/R PWM input -
PWM input + (5-24V)
PWM input + (36-48V)
179.00 mm
Wiring Diagram
● Parallel connection
Power Supply
12-24VDC
Constant Voltage
AC100-240V
+
+
+
+
+
+
EV5-L 5 Channel 12-48V Constant Voltage Power Repeater
CH5/CW LED output -
CH4/WW LED output -
CH3/B LED output -
CH2/G LED output -
CH1/R LED output -
+
+
+ LED output +
LED output +
Power input +
Power input -
30.00 mm
V5- M
+
RGB+CCT LED strip
WW
CW
Power Supply
12-48VDC
Constant Voltage
AC100-240V
RGB+CCT LED strip
WW
CW
Power Supply
12-48VDC
Constant Voltage
AC100-240V
