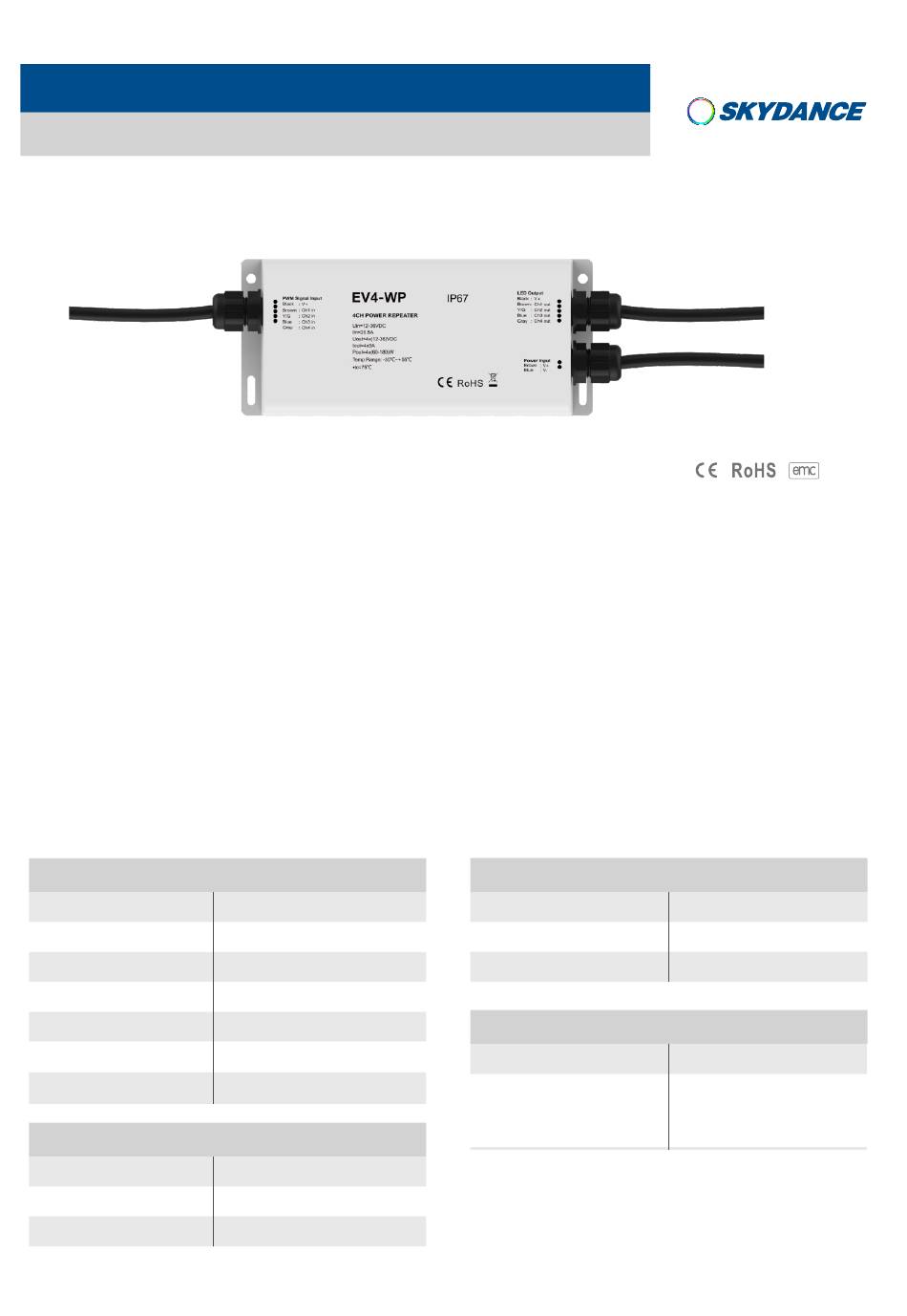

4 Channel Constant Voltage Waterproof Power Repeater
Model No.: EV4-WP
IP67 waterproof/4 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation
Features
Waterproof 12-36V constant voltage power repeater with I 67 rating, suitable for outdoor and damp environment.
●
● 4 channel , 5A per channel .
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color, dual color, RGB or RGBW constant voltage LED strip or module.
Technical Parameters
Input and Output
Input voltage
Input current
Input signal
Output voltage
Output current
Output power
Output type
Environment
Operation temperature
Case temperature
Max.
(
IP rating
User Manual Ver 1.0.2
12-36VDC
20.5A
PWM
4 x (12-36)VDC
4CH,5A/CH
4 x (60-180)W
Constant voltage
O
O
Ta: -30
C ~ +55
C
O
)
T c: +85
C
IP67
P
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
Warranty and Protection
Warranty
Protection
www.iskydance.com
LVD
EN301 489,EN 62479
EN60950
CE,EMC,LVD
5 years
Reverse Polarity
Over-heat
Over-load
Short circuit
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE EV4-WP
Summary of Contents for SKYDANCE EV4-WP
- Page 1 4 Channel Constant Voltage Waterproof Power Repeater Model No.: EV4-WP IP67 waterproof/4 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation Features Waterproof 12-36V constant voltage power repeater with I 67 rating, suitable for outdoor and damp environment. ● ● 4 channel , 5A per channel .
- Page 2 EV4 -WP 4 Channel Constant Voltage Waterproof Power Repeater Mechanical Structures 176.0 mm 38.0 mm Wiring Diagram ● Parallel connection AC100-240V Power Supply 12-36VDC Constant Voltage LED Output EV4-WP IP67 PWM Signal Input Black ：V+ Black ：V+ Brown ：Ch1 out RGBW LED strip ：Ch1 in ：Ch2 out...
- Page 3 EV4 -WP 4 Channel Constant Voltage Waterproof Power Repeater ● Series connection AC100-240V Power Supply 12-36VDC Constant Voltage RGBW LED strip LED Output EV4-WP IP67 PWM Signal Input Black ：V+ Black ：V+ Brown ：Ch1 out ：Ch1 in ：Ch2 out Brown 4CH POWER REPEATER ：Ch3 out...
- Page 4 EV4 -WP 4 Channel Constant Voltage Waterproof Power Repeater Safety & Warnings 1. The product shall be installed and serviced by a qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. 3. Good heat dissipation will prolong the working life of the controller,Please ensure good ventilation. 4.
