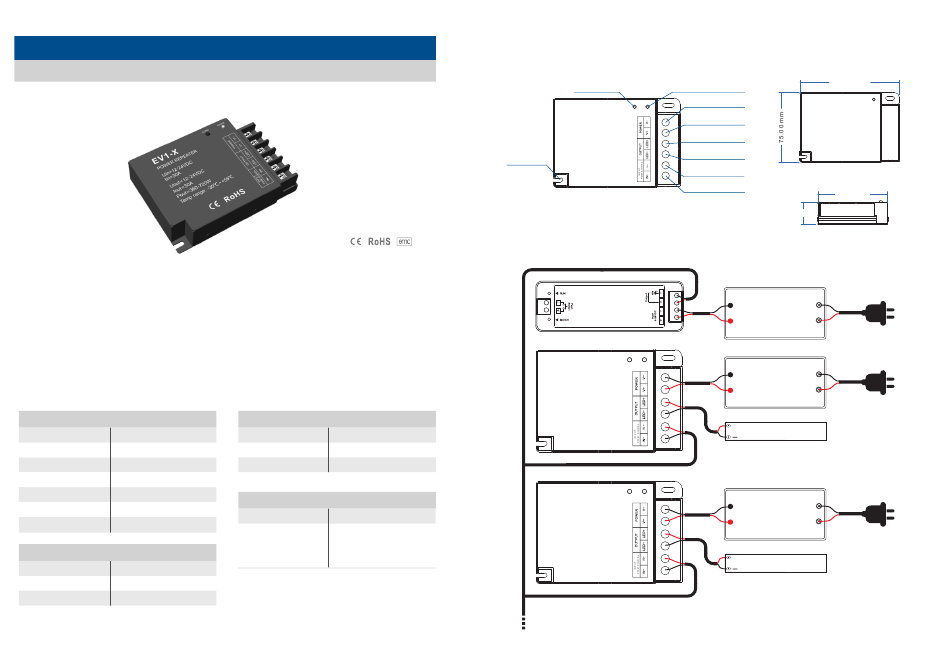

SKYDANCE EV1-X User Manual

1 Channel Constant Voltage Power Repeater
Model No.: EV1-X
1 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation
Features
● 12-24V constant voltage power repeater.
● 1 channel, 30A per channel.
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color constant voltage LED strip or module.
Technical Parameters
Input and Output
Input voltage
12-24VDC
Input current
30A
Input signal
PWM
Output voltage
12-24VDC
Output current 30A
Output power
360-720W
Output type
Constant voltage
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +85 O
C
IP rating
IP20
User Manual Ver 1.0.2
LVD
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
CE,EMC,LVD
Certification
Warranty and Protection
Warranty 5 years
Reverse polarity
Over-heat
Protection
Over-load
Short circuit
Mechanical Structures and Installations
Alarm indicator
ALARM POWER
Installation rack
Wiring Diagram
V1
ALARM POWER
EV1-X
ALARM POWER
EV1-X
Note: If the power repeater is over heat, over load or short circuit, the ALARM LED indicator will blink.
EV 1-X 1 Channel Constant Voltage Power Repeater
107.00 mm
Power indicator
Power input -
Power input +
LED output +
LED output -
PWM input +
PWM input -
75.00 mm
24.50 mm
Power Supply
5-36VDC
Constant Voltage
AC100-240V
Power Supply
12-24VDC
Constant Voltage
AC100-240V
+
Single color LED strip
Power Supply
12-24VDC
Constant Voltage
AC100-240V
+
Single color LED strip
