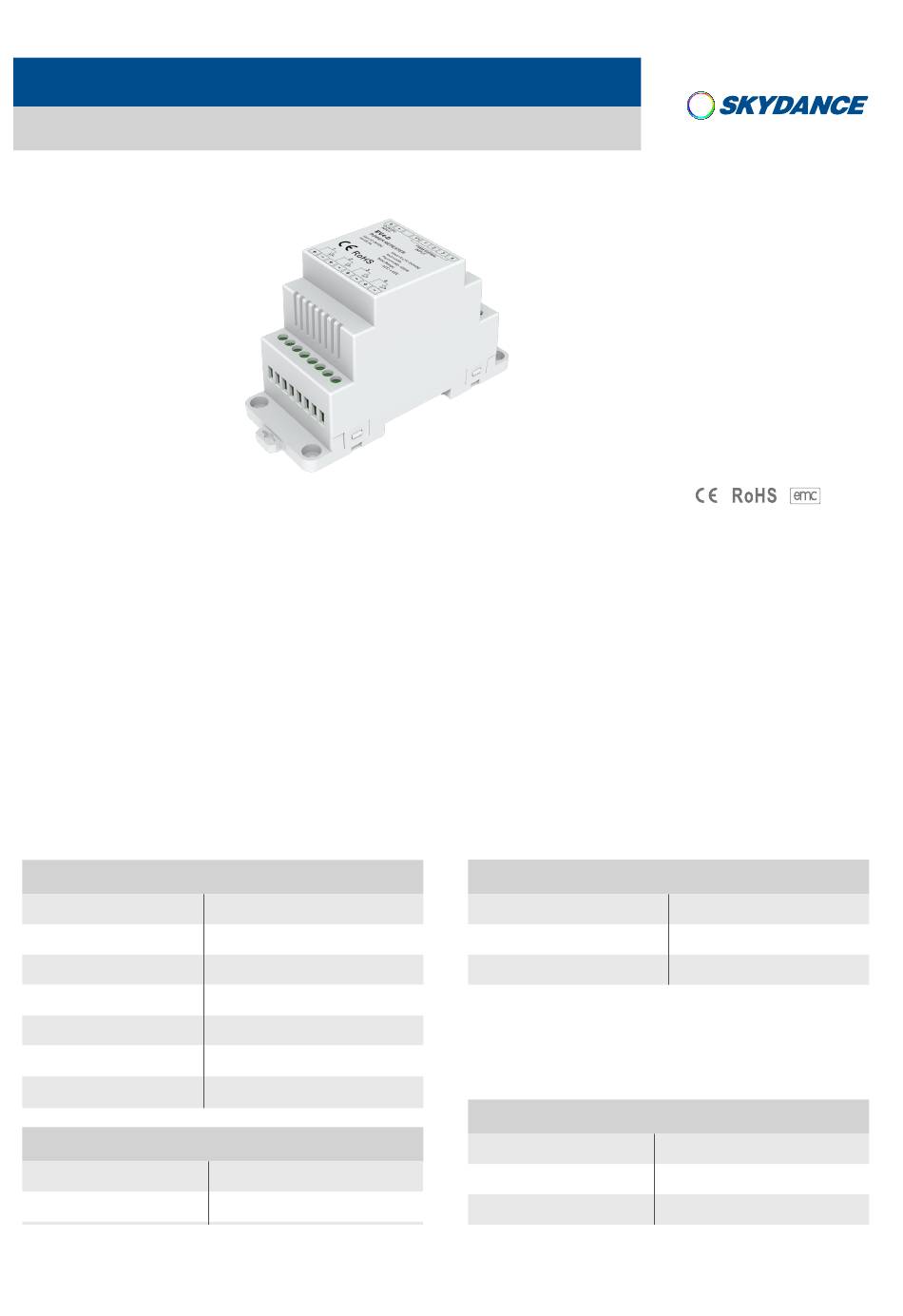

4 Channel Constant Voltage Power Repeater
Model No.: EV4-D
4 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation
Features
● 12-24V constant voltage power repeater.
● 4 channel, 5A per channel .
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
Technical Parameters
Input and Output
Input voltage
Input current
Input signal
Output voltage
Output current
Output power
Output type
Warranty and Protection
Warranty
Protection
User Manual Ver 1.0.2
12-24VDC
20.5A
PWM
4 x (12-24)VDC
4CH,5A/CH
4 x (60-120)W
Constant voltage
5 years
Reverse Polarity
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
Environment
Operation temperature
Case temperature
IP rating
www.iskydance.com
EN301 489,EN 62479
EN60950
CE,EMC,LVD
O
Ta: -30
C ~ +55
Max.
O
(
)
T c: +85
C
IP20
LVD
O
C
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE EV4-D
Summary of Contents for SKYDANCE EV4-D
- Page 1 4 Channel Constant Voltage Power Repeater Model No.: EV4-D 4 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation Features ● 12-24V constant voltage power repeater. ● 4 channel, 5A per channel . ● To receive PWM signal control. ● Power repeater in series or in parallel to expand output unlimitedly.
- Page 2 Installation rack DIN Rail Mounting Size: Wiring Diagram TS-35/7.5 or TS-35/15 DMX Master POWER IN 12-24VDC 12-24VDC DMX IN DMX OUT INPUT INPUT EV4-D EV4-D POWER OUT 1/WW 2/CW 3/WW 4/CW AC100-240V If connect with RGBW LED strip www.iskydance.com Page 2...
- Page 3 EV 4-D 4 Channel Constant Voltage Power Repeater Malfunctions analysis & troubleshooting Malfunctions Troubleshooting Causes 1. No power. 1. Check the power. No light 2. Wrong connection or insecure. 2. Check the connection. 1. Wrong connection of R/G/B/W wires. Wrong color 1.
