SKYDANCE EV1-S Installation Manual

EV1-S
1 Channel Constant Voltage Power Repeater
Installation Guide
Technical Parameters
Input and Output
Input voltage 12-24VDC
Input current 15.5A
Input signal PWM
Output voltage 12-24VDC
Output current 15A
Output power 180-360W
Output type Constant voltage

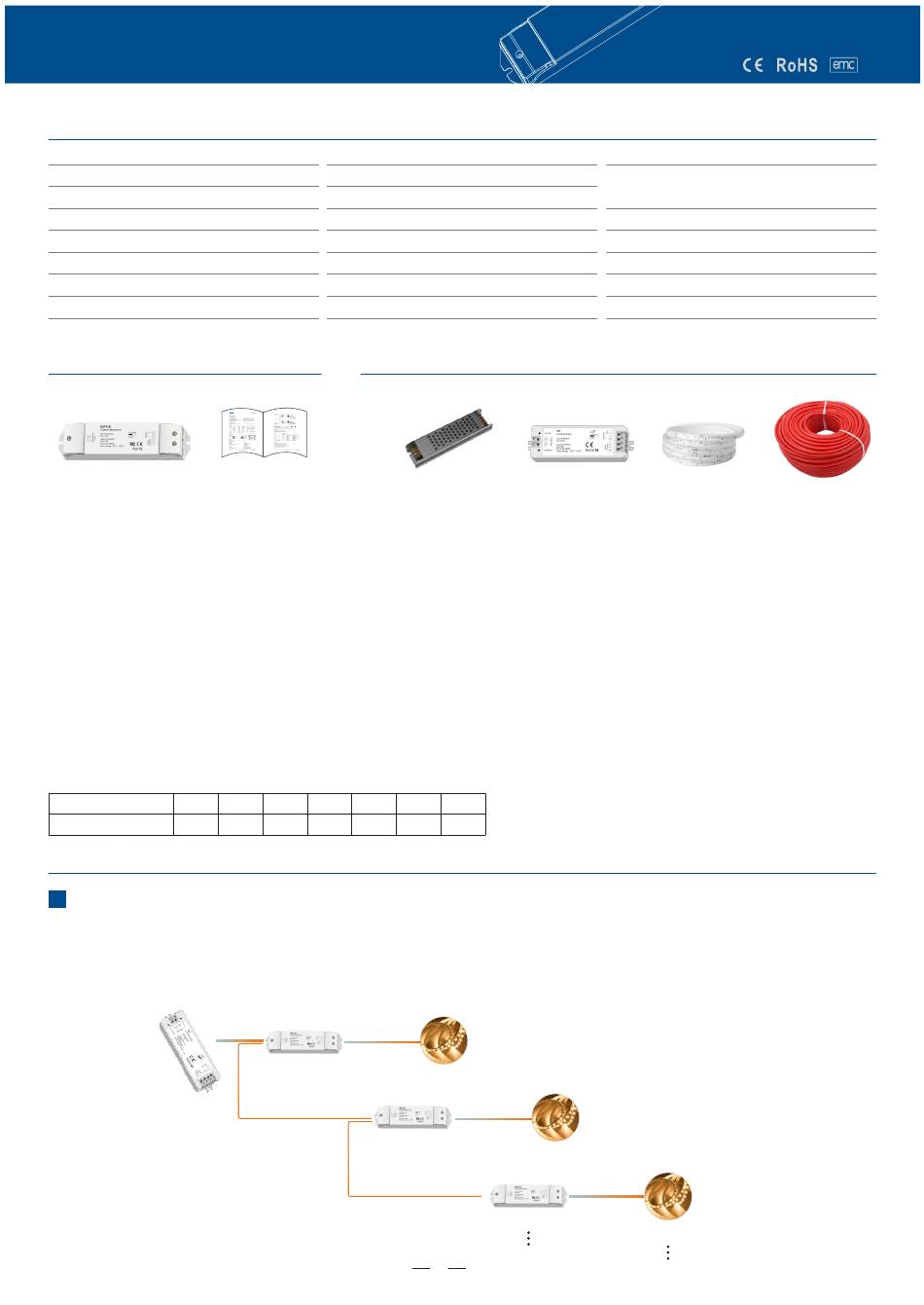

Packing List
Power Repeater
1 pcs
Notes:
1. The output voltage of the switching power supply must be the same as the supply voltage of the light strip,
and the output power of the switching power supply ≥ 1.25 times the total output power of all the connected light strips.
2.
When the controller is dimmed, the switching power supply may emit noise that can be heard by the human ear (20~20KHz),
and it is recommended to use the glue filling switching power supply in places with noise requirements.
3.
The power repeater is a constant voltage type, for the switching type constant voltage/constant current conversion lamps, not guaranteed adaptation,
dimming process may flicker, subject to actual measurement, the maximum access power of such lamps can not be higher than 50% of the rated power
of the power repeater , otherwise it is easy to cause damage to the
Wire selection:
Solid wire or stranded wire can be selected, the cross-sectional area is 0.5-2mm²,
Select the wire with the appropriate cross sectional area
according to the total power of the LED strip.
Example: 5m 12V LED strip, 12W per meter, total 60W, current 5A,
Select a wire with a cross-sectional area of 0.5mm² or more.
Copper wire
0.5mm²
cross-sectional area
Current
<=5A
Installation steps
Measure the length of light strips required according to the scene and determine a sufficient number of power supplies
1
and power repeaters.
For example: in the corridor to install a 200m 24V monochrome strip for the overall synchronization of dimming, LED strip 20W/m,
the total power is 20x200 = 4000W,
Need 1 pcs controller, 12 pcs power
1 pcs 24V 1A power supply (for controller power supply), 12 pcs 24V 15A switching power supply (for power
Warranty and Protection
Warranty
Protection
Environment
Operation temperature
Case temperature (Max.)
IP rating
Outsourced parts
User manual Switching power supply
1 pcs
0.75mm² 1.0mm² 1.5mm² 2.0mm²
<=8A <=10A <=12A <=16A
repeater Based on the maximum power of the power repeater s (
Power repeater
Power repeater
5 years
Reverse Polarity
O O
Ta: -30 C ~ +55 C
O
Tc: +85 C
IP20
LED controller
power repeater .
Constant voltage/constant current lamps:
Can be judged according to the parameters marked by the lamp,
If the input voltage marked is DC12/24V, it is a constant voltage lamp;
Mark input current as constant current value, input voltage as range value,
such as 600mA, 12-20V, which is a constant current lamps.
Common constant voltage lamps: Light strips, light bars,
wall washer lights, buried lights, etc.
2.5mm² 4.0mm²
Common constant current lamps: down lights, spotlights,
panel lights, ceiling lights, linear lights, etc.
<=20A <=30A





Single color LED strip
Single color LED strip
Power repeater
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Certification CE,EMC,LVD
Package
Size L178 x W50 x H38mm
Gross weight 0.119kg
Single color LED strip
, 4000/360).
repeater power supply).
Single color LED strip
RED
Connecting wire
(cuts required)
