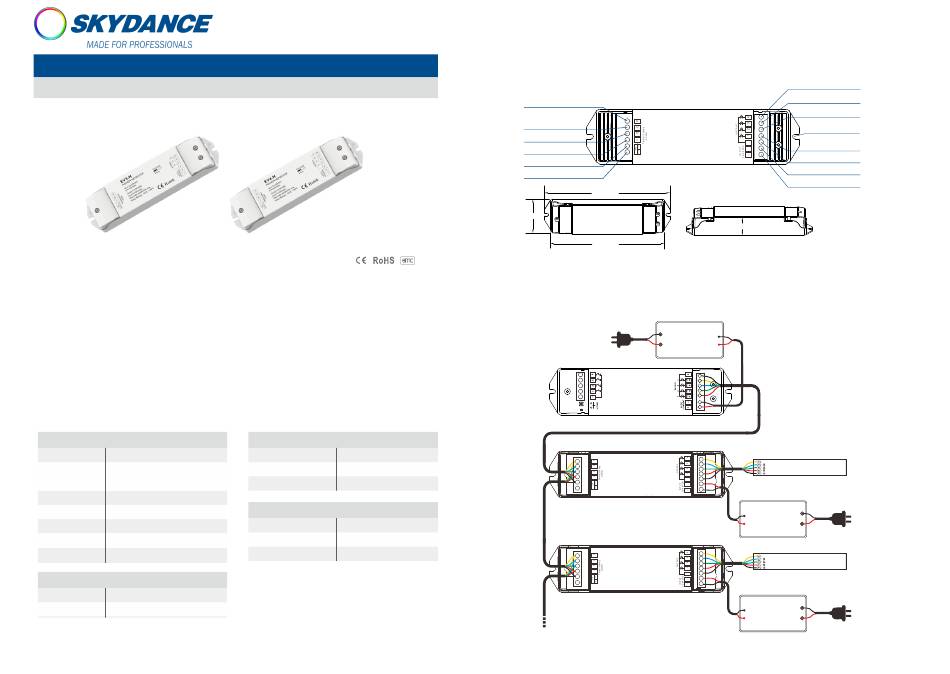

3/4 Channel 12-60V Constant Voltage Power Repeater
Model No.: EV3-H / EV4-H
3 or 4 Channel/12-60V/PWM signal input/Constant voltage output/3KV optoelectronic isolation
EV3-H
Features
● 12-60V constant voltage power repeater.
● 3/4 channel , 5A max. per channel .
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color, dual color, RGB or RGBW constant voltage LED strip or module.
Technical Parameters
Input and Output
Input voltage
12-60VDC
15A max. (EV3-H)
Input current
20A max. (EV4-H)
Input signal
PWM(3/4CH, 5-24V or 36-60V)
Output voltage
3/4 x (12-60)VDC
Output current
3/4CH,5A max./CH
Output power
3/4 x (60-300)W max.
Output type
Constant voltage
Warranty and Protection
5 years
Warranty
Protection
Reverse Polarity
User Manual Ver 1.0.2
EV4-H
LVD
Safety and EMC
EMC standard (EMC)
EN301 489,EN 62479
Safety standard(LVD)
EN60950
Certification
CE,EMC,LVD
Environment
O
O
Operation temperature
Ta: -30
C ~ +55
C
Case temperature
(
Max.
)
O
T c: +85
C
IP rating
IP20
Mechanical Structures and Installations
EV3-H: NC
EV4-H: CH4/W PWM input -
CH3/B PWM input -
CH2/G PWM input -
CH1/R PWM input -
PWM input + (5-24V)
PWM input + (36-60V)
175mm
45mm
160mm
Wiring Diagram
● Parallel connection
AC100-240V
Power Supply
12-24VDC
Constant Voltage
PWM
Controller
EV3-H/EV4-H
+
+
EV3-H/EV4-H
+
+
www.iskydance.pl
EV3-H: NC
EV4-H: CH4/W LED output -
CH3/B LED output -
CH2/G LED output -
Installation rack
+
CH1/R LED output -
+
LED output +
Power input +
Power input -
27mm
W
RGB/RGBW LED strip
AC100-240V
Power Supply
36-60VDC
Constant Voltage
W
RGB/RGBW LED strip
AC100-240V
Power Supply
36-60VDC
Constant Voltage
Page 1
