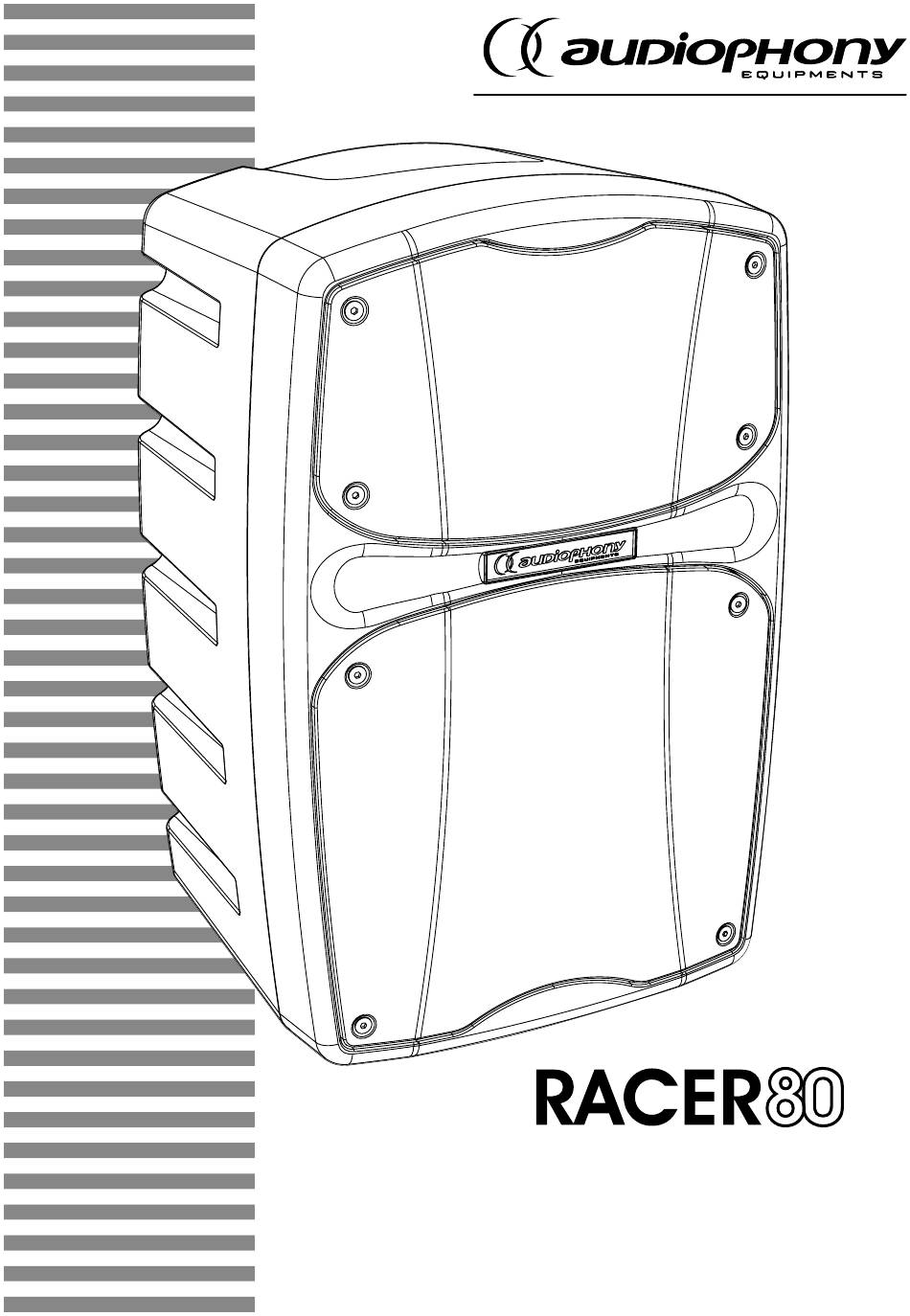

- Page 1 USER GUIDE H11663/H11664 - Version 1 / 03-2024...
-
Page 2: Safety Information
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or WARNING : extremely cold/hot locations. - Page 3 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 2 - Introduction Thank you for choosing the RACER80 amplified system. - All-in-one mains and battery operated system - Performance and sound quality - Integrated media player - UHF diversity system The RACER80 is a powerful all-in-one system with excellent sound quality for all your mobile performances.
- Page 4 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 3 - The different modules PWR - VOL CHANNEL UHF RECEIVER A - UHF receiver module. See 4.6 for installation. B - USB/SD/Bluetooth TWS module assigned to channel 1 ®...
- Page 5 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - Description of modules 4 - 1 : USB/SD/Bluetooth TWS module ® 1 - SD card slot 2 - Player display 3 - IR diode for receiving remote control signals 4 - USB mass storage port for USB key.
- Page 6 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones Action Display Selecting the repeat mode: Short press on Different repeat modes are: Repeat All (A) / Repeat One (1) / Repeat Folder (F) / Random (R). Choice of equalization mode: Long presse on Different equalization modes are : Normal / Rock / Pop /...
-
Page 7: Remote Control
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones Multimedia player mode displays Indicates musical mode. Indicates the playback mode. To switch from one mode to another, use key. The top line shows the number of the current song and the bottom line shows the total number of songs. -
Page 8: Mixer Section
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 3 : Mixer section 1 - Input on combo XLR and 6.35 jack. Allows you to connect a line level source, a microphone or a guitar. 2 - Input selector for channels 2-3. -
Page 9: Power Supply Section
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 5 : Power supply section 1 - Mains plug. Please plug in your power cord to recharge the battery and/or use your device. 2 - Fuse holder. - Page 10 ANT-A and ANT-B. Connect the ribbon connector (Power / Signal). Connect the BNC antenna to its bracket. The RACER 80 has an internal, pre-wired flat antenna for diversity. Do not forget to lock the cords in the jaws provided for this purpose.
-
Page 11: Available Frequencies
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones Available frequencies F5 series F8 series Channel 1 514.000 MHz Channel 1 823.175 MHz Channel 2 515.500 MHz Channel 2 823.875 MHz Channel 3 517.000 MHz Channel 3 824.825 MHz Channel 4... -
Page 12: Technical Data
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - Technical data 2 channels XLR/TRS combo Line/Mic input 1 1/8" AUX channel Inputs 1 TWS Bluetooth connexion 1 optional UHF microphone Outputs 1 TRS mix output Loudspeaker 6.5"... - Page 13 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ® is a trademark of HITMUSIC S.A.S - 595 rue de la Pièce Grande - 46230 Fontanes - FRANCE AUDIOPHONY ®...
