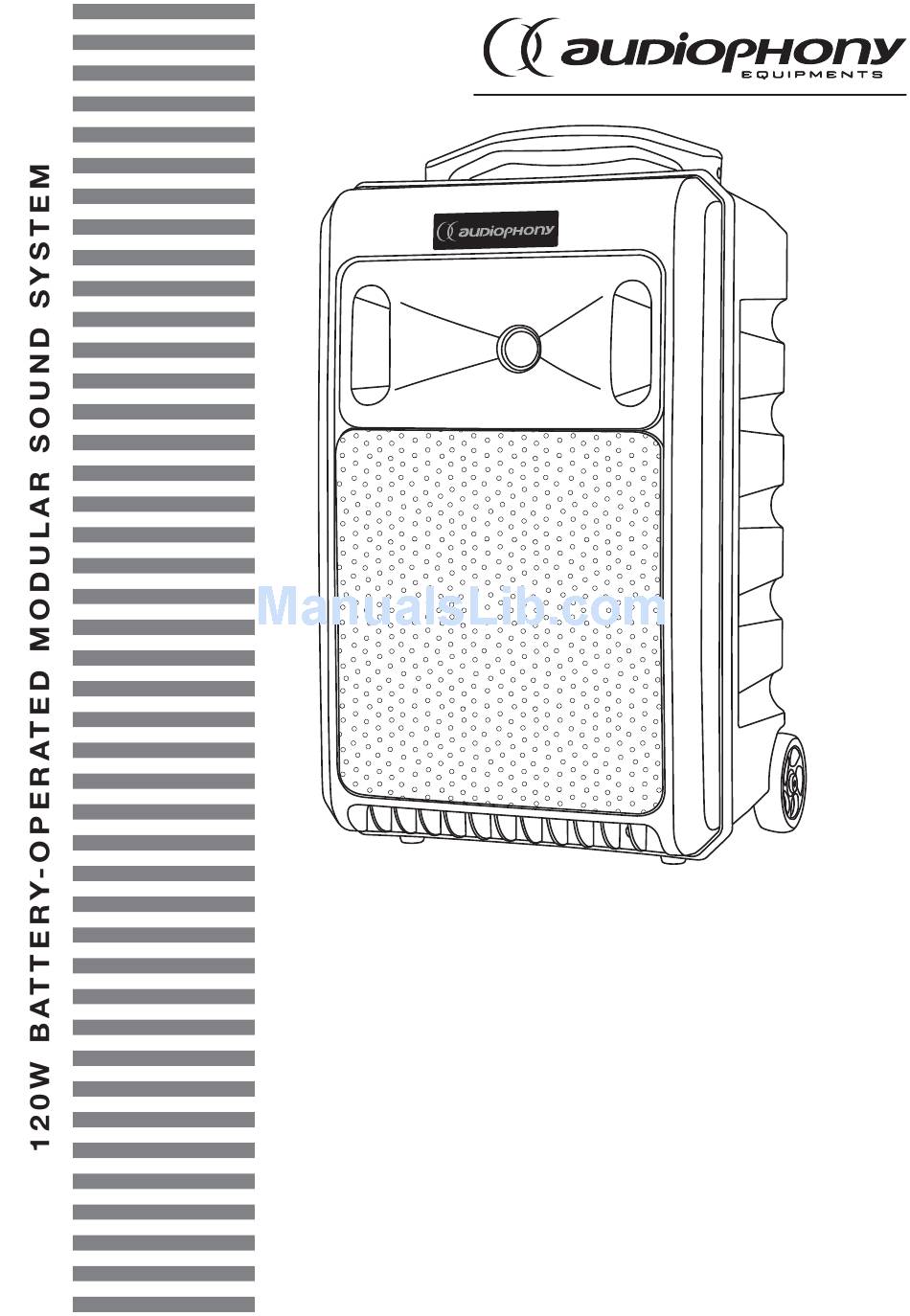

Page 1: User Guide
SPRINTER SYSTEMS 9977 : SPRINTER-One-V122 9837 : SPRINTER-122 9983 : PASSSPRINT 9982 : USB-RUN 9993 : CD-RUN 8206 : RUN-K7 9980 : EMET-HAND 9981 : EMET-HEAD 9979 : RECEPT-MOD16 9986 : COV-SPRINT USER GUIDE December 2012 Version 1.0... -
Page 2: Safety Information
English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins- undertake any maintenance operation when it is switched on as tructions could result in fire, electric shock, injury, or damage to it may result in electric shock. - Page 3 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
- Page 4 This user guide will allow you to understand and use all the functions of the your system. Please keep it within reach during the first uses in order to get familiar with the unit. Main features of the SPRINTER series SPRINTER-One-V122 SPRINTER-122 PASSSPRINT...

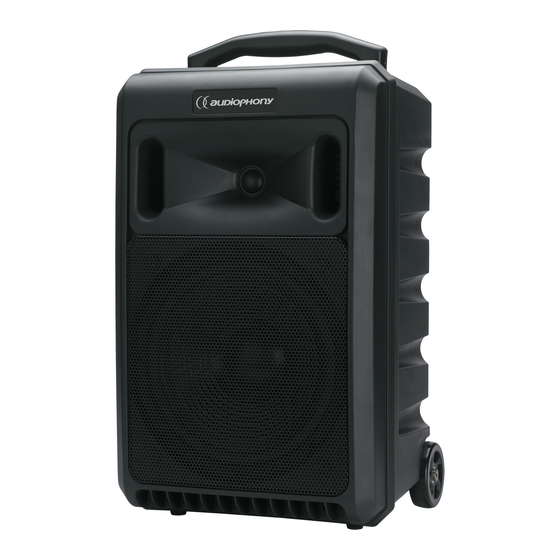

- Page 5 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 3 - Description of the SPRINTER 1 - Retractable handle 2 - Control panel 3 - Façade including a protection grille and the loudspeakers 55cm 4 - Tweeter 5 - Vent 6 - 10" bass loudspeaker 7 - Built-in transport trolley 8 - 35 mm mounting plate for speaker stand 4 - Identifying the modules...
-
Page 6: Description Of The Modules
English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 5 - Description of the modules 5-1 : Description of the volume control zone (B) B1 - CD or USB player volume control fader. From OFF to max (clockwise). B2 - Cassette player volume control fader. From OFF to max (clockwise). B3 - LINE IN volume control fader. - Page 7 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-3 : Description of one of the UHF receiver module (A = RECEPT-MOD16) A1 - Radio Frequency indicator: indicates if the microphone is activated. The indicator flashes when the mic is ON. A2 - Displays the current frequency.
- Page 8 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-6 : Description of the CD/USB (CD-RUN) player PLAY PAUSE -SKIP- STOP EJECT POWER FUNC FOLDER SPEED + SD/MMC CARD D1- POWER: Turns the player ON. POWER PLAY PAUSE D2 - EJECT: Ejects the CD. D3 - STOP: Stops the current track (CD/USB/SD).
- Page 9 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-7 : Description of the USB player (USB-RUN) D1 - Volume control fader: From OFF to maximum (clockwise). D2 - Stop button: Stops the playback and goes back to the beginning of the track. D3 - EQ/Repeat Button: - Allows you to choose one of the 7 preset equalization modes: NORMAL/POP/ROCK/JAZZ/CLASSICAL/COUNTRY.
- Page 10 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-8 : Description of the optional cassette player and recorder (RUN-K7) T1 - EJECT : Press here to eject the cassette. T2 - COUNTER : Position counter to keep track of your starting points. 4-digit LCD display. T3 - RESET : Resets the counter.
-
Page 11: Power Management
English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 6 - Power management 6 - 1 : Description of the power management system 1 - Indicators: from FULL (batteries charged) to LOW (batteries almost empty). You must change the battery as quickly as possible when the LOW indicator is lit. -
Page 12: Accessories And Spare Parts
English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 6 - 3 : Precautions and recommendations concerning the batteries 1 - This device features a 12 V / 4.7 Ah battery allowing an average battery life of 6 hours. 2 - The complete charging process duration is approximately 9 hours. 3 - A built-in power management system indicates if the battery needs to be charged. - Page 13 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 7 -2 : Optional accessories and modules for SPRINTER systems RECEPT-MOD16 UHF receiver module with 16 frequencies To be used with EMET-HAND and EMET-HEAD EMET-HAND Handheld UF microphone with 16 frequencies To be used with the RECEPT-MOD16 EMET-HEAD Headband UHF microphoneand bodypack transmitter with 16 frequencies...
-
Page 14: Technical Specifications
English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 8 - Technical specifications SPRINTER-122 SPRINTER-One-V122 Loudspeaker 10" loudspeaker + 1" tweeter 10" loudspeaker + 1" tweeter Power 120W class D amplifier 120W class D amplifier UHF microphone UHF with 16 frequencies available... - Page 15 English SPRINTER - 120W BATTERY-OPERATED MODULAR SOUND SYSTEM 9 - Notes Page 15...
- Page 16 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
