USER GUIDE
H11409 - Version 1 / 03-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACER 250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for audiophony RACER 250

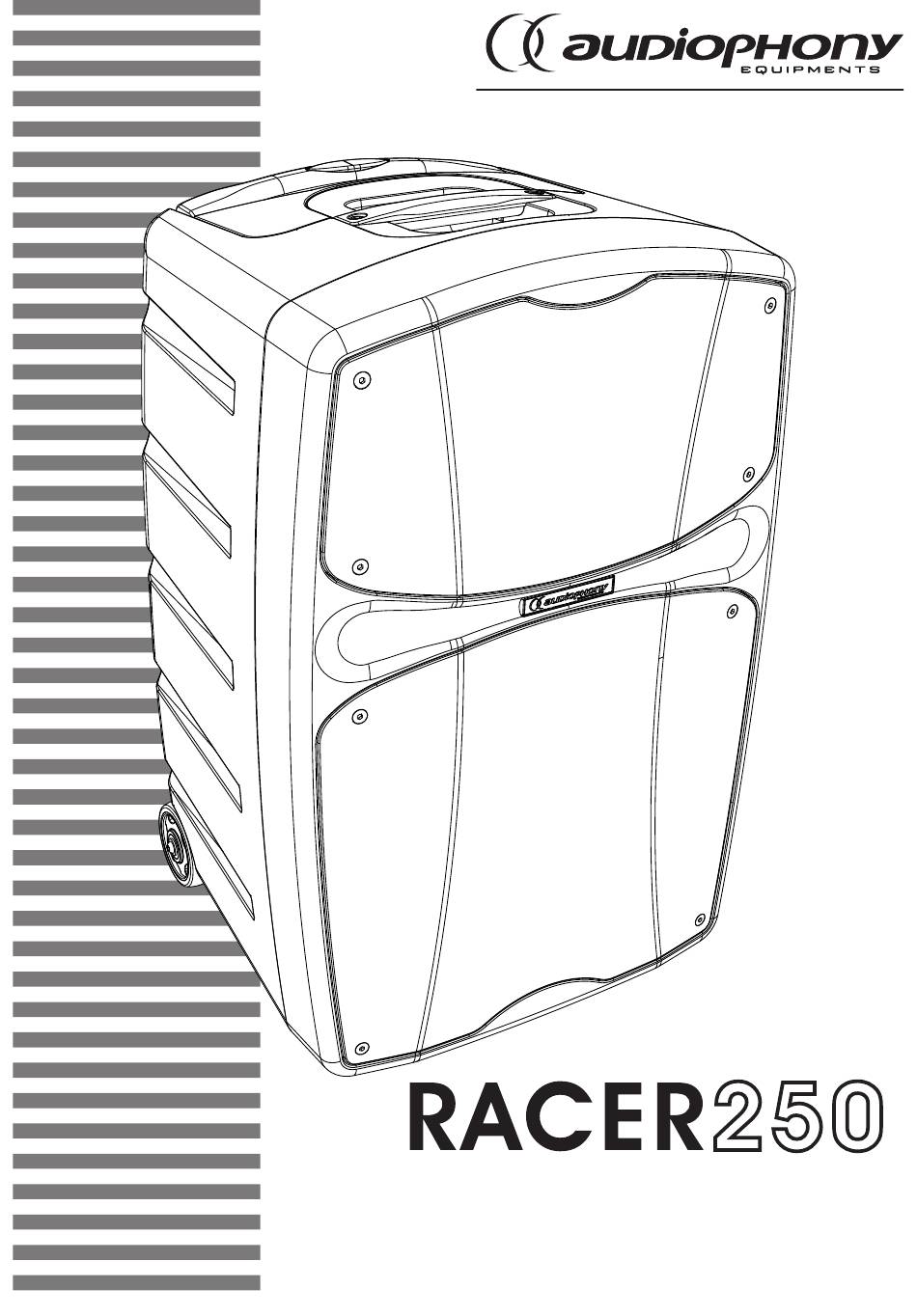

  • Page 1 USER GUIDE H11409 - Version 1 / 03-2023...
  • Page 2: Safety Information

    English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or WARNING : extremely cold/hot locations.
  • Page 3 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 2 - Introduction Thank you for choosing the RACER250 amplified system. - An easy-to-carry all-in-one system - Performance and sound quality - Built-in media player - Two UHF diversity receiver slots The RACER250 is a powerful all-in-one system with excellent sound quality for all your on-the-go performances.
  • Page 4 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 3 - The different modules Back - Optional UHF receiver module. See paragraph 5 for more details. - USB/SD/Bluetooth ® module assigned to channel 1 - Mixer section.
  • Page 5 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - Description of modules 4 - 1 : USB/SD/Bluetooth TWS module ® 1 - SD card slot 2 - Player display 3 - IR diode for receiving remote control signals 4 - USB mass storage port for USB key.
  • Page 6 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones Action Display Selecting the repeat mode: Short press on Different repeat modes are: Repeat All (A) / Repeat One (1) / Repeat Folder (F) / Random (R). Choice of equalization mode: Long presse on Different equalization modes are : Normal / Rock /...
  • Page 7 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones Multimedia player mode displays Indicates musical mode. Indicates the playback mode. To switch from one mode to another, use key. The top line shows the number of the current song and the bottom line shows the total number of songs.
  • Page 8: Remote Control

    English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 2 : Remote control The infrared remote control of your player allows you to remotely control CHANNEL PLAY/PAUSE certain functions of your player for your SD/USB or Bluetooth sources.
  • Page 9: Master Section

    English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 4 : Master section 1 - MASTER volume control. This control affects the overall output volume of the system. 2 - POWER/LIMIT light. Indicates whether the system is powered and whether the limiter is active.
  • Page 10 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones Precautions for using the integrated battery 1 - This device is equipped with two 18 V / 7 Ah batteries for an autonomy of 6 hours on average depending on the type of use.
  • Page 11 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - Installation of optional UHF modules: RACER-GoMod (F5 or F8) 5 - 1 : A single module Before handling, make sure that the RACER is switched off. Mount the two BNC antennas on their mounts.
  • Page 12 English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - 2 : Two modules Before handling, make sure that the RACER is switched off. Remove the two covers. Connect the two antennas to the ANT-A and ANT-B connectors on receiver 1.
  • Page 13: Technical Data

    English 250W ® RACER250 - portable sound system With bluetooth multimedia player and optional uhf microphones 6 - Technical data 2 channels XLR/TRS combo Line/Mic input 1 1/8" AUX channel Inputs 1 Bluetooth connexion 2 optional UHF microphones Outputs 1 TRS jack output Loudspeaker 12"...
  • Page 14 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ® is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE AUDIOPHONY ®...
