- Page 1 USER GUIDE H11401/H11402/1H11403/H11404/H11404 - Version 1 / 02-2023...
-
Page 3: Safety Information

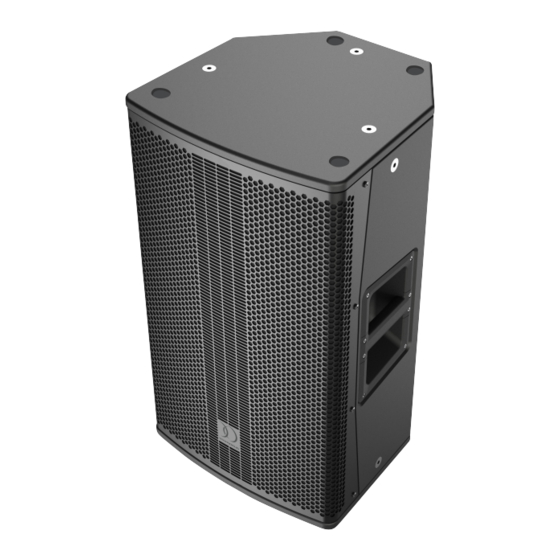

Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or WARNING : extremely cold/hot locations. - Page 4 ENGLISH Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP 2 - Introduction The Myos Series speakers and subwoofers are the ideal solution for your live performances. With 700W for the Myos10A and Myos12A, 1000W for the Myos12A and Myos15A and 1000W for the Myos15ASub and for the Myos18ASub subwoofer, the Myos series products deliver a powerful, clear and warm sound, suitable for both voice and live or recorded music.
- Page 5 Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH 4 - Myos08A and Myos10A power amp module 700W POWERED SPEAKER PUSH TO ENTER DSP LEVEL LINE +10dB INPUT LINK OUTPUT AC INPUT 220-240 V ~ 50/60 Hz FUSE : T3.15A L 250 V...
- Page 6 ENGLISH Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP 5 - Myos12A and Myos15A power amp module Integrated DSP diplay Power input socket Displays the settings of the built-in DSP. Allows you to connect the speaker to an electrical outlet.
- Page 7 Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH 6 - Full range speaker menu MENUS MENU OPTION This menu is used to select one of the preset : MODE menu -NORMAL : The equalisation is flat (default value).
- Page 8 ENGLISH Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP INFO menu NORMAL HF:0dB MYOS10A POLE LF:0dB This menu is used to display the internal software version. MYOS10A Firmware Ver 1.0.0 INFO Push to Return...
- Page 9 Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH 7 - Technical information of the subwoofer Myos15ASub Myos18ASub Amplification Class D / 1000W RMS / 2000W max Frequency response 40 Hz - 150 Hz...
- Page 10 ENGLISH Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP 9 - Subwoofers DSP Menu MENUS MENU OPTION LEVEL menu This menu appears when the subwoofer is initialized and allows NORMAL 150 Hz you to adjust the subwooer's amplification level.
- Page 11 Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH INFO menu NORMAL 150 Hz MYOS15ASUB NORMAL 0.25 m This menu is used to display the internal software version. Firmware Ver 1.0.0 MYOS15ASUB...
- Page 12 ENGLISH Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP 10 - Dimensions Page 12...
- Page 13 Myos series - 2 ways 0810/12/15" powered full range speaker and 15/18" powered subwoofer with DSP ENGLISH 11 - Horn rotation (Myos008A and Myos10A) The horn of the Myos08A and Myos10A can be rotated by 90° to maintain dispersion. This option is very useful when the speaker is used as a stage monitor or in a horizontal installation.
- Page 14 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ® is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE AUDIOPHONY ®...
