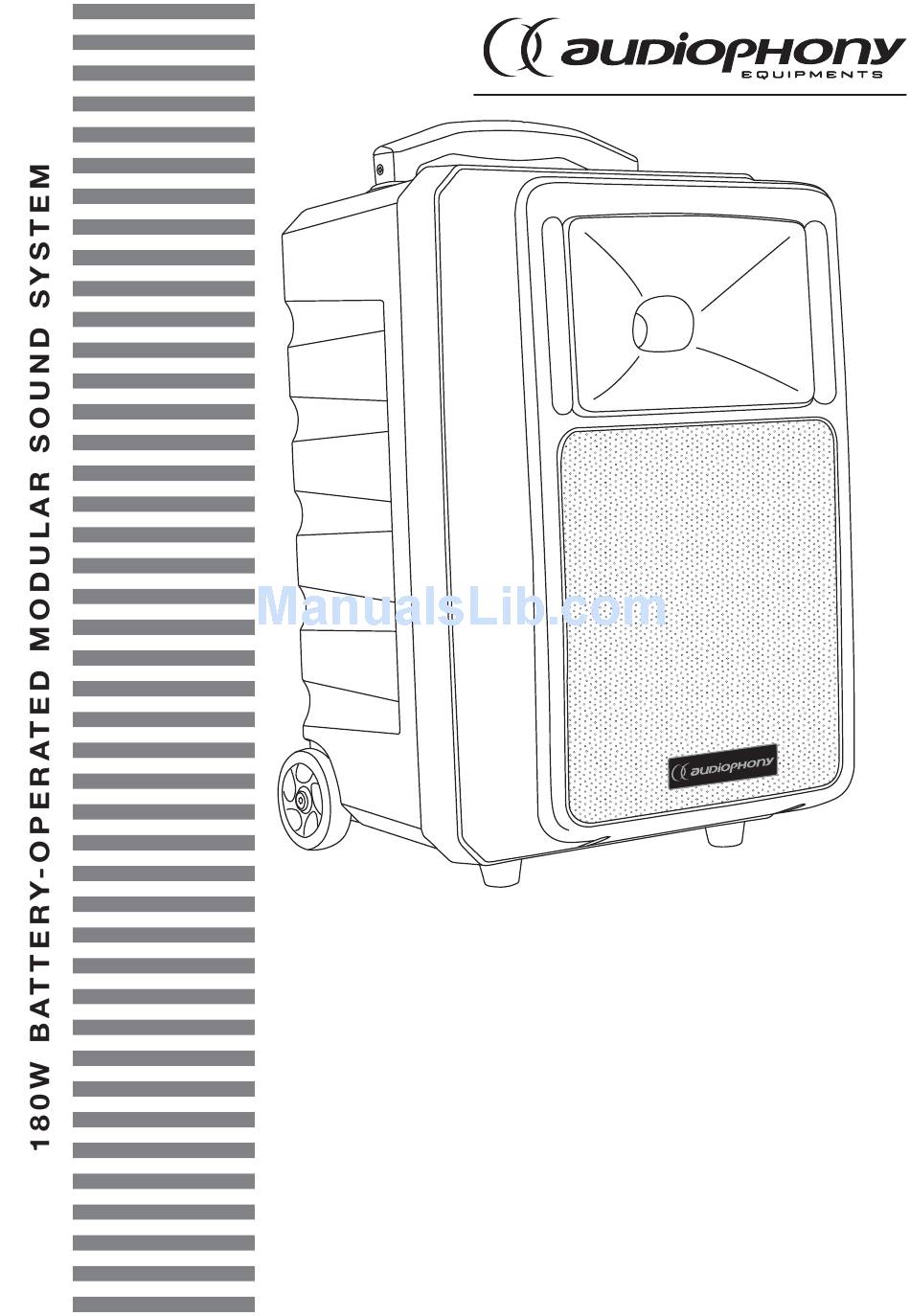

- Page 1 CROSSER SYSTEMS 9978 : CROSSER-One-V180 9895 : CROSSER-180 9984 : PASSCROSS 9982 : USB-RUN 9993 : CD-RUN 9980 : EMET-HAND 9981 : EMET-HEAD 9979 : RECEPT-MOD16 9985 : COV-CROSS USER GUIDE December 2012 Version 1.0...
-
Page 2: Safety Information
English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins- undertake any maintenance operation when it is switched on as tructions could result in fire, electric shock, injury, or damage to it may result in electric shock. - Page 3 English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
- Page 4 English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 2 - Introduction Thank you for purchasing a CROSSER series product. The CROSSER series was designed around a battery-operated amplified system delivering 180W of high-quality sound. Many options are available to allow everyone to build the perfect sound system. This user guide will allow you to understand and use all the functions of the your system.

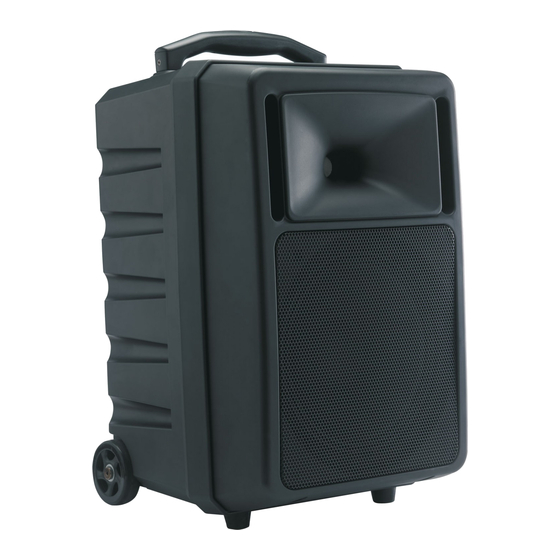

- Page 5 English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 3 - Description of the CROSSER 1 - Telescopic transport handle 2 - Control panel 3 - Façade including the protection grille, loudspeakers and front infrared sensor. 4 - A : 1.5 inches titanium driver / B : 10 inches neodymium boomer 5 - Wheels 6 - Protection grille...
-
Page 6: Description Of The Modules
English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 5 - Description of the modules 5-1 : Description of the volume control zone (B) B1 - CD or USB player volume control fader. From OFF to max (clockwise). B2 - Cassette player volume control fader. From OFF to max (clockwise). B3 - LINE IN volume control fader. - Page 7 English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-3 : Description of one of the UHF receiver module (A = RECEPT-MOD16) A1 - Radio Frequency indicator: indicates if the microphone is activated. The indicator flashes when the mic is ON. A2 - Displays the current frequency. A3 - Audio Frequency indicator: indicates if the transmitter is emitting a signal.
- Page 8 English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 5-6 : Description of the CD/USB (CD-RUN) player POWER PLAY PAUSE STOP RANDOM PLAY REPEAT PAUSE -SKIP- STOP EJECT POWER MUTE FUNC FOLDER SPEED + FOLDER DOWN SD/MMC CARD EJECT INTRO VOL - VOL + FUNC SPEED -...
-
Page 9: Power Management
English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 6 - Power management 6 - 1 : Description of the power management system 1 - Indicators: They indicate the charge level from FULL to LOW. PW indicates the RUNNER is active. You must change the battery as quickly as possible when the LOW indicator is lit. -
Page 10: Spare Parts And Accessories
English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 6 - 3 : Precautions and recommendations concerning the batteries 1 - This device features a 12 V / 5 Ah battery allowing an average battery life of 7 hours. 2 - The complete charging process duration is approximately 9 hours. 3 - A built-in power management system indicates if the battery needs to be charged. -
Page 11: Technical Specifications
English CROSSER -180W BATTERY-OPERATED MODULAR SOUND SYSTEM 8 - Technical specifications CROSSER-180 CROSSER-One-V180 10’’ 4 Ohms neodymium loudspeaker + 10’’ 4 Ohms neodymium loudspeaker Loudspeakers 1.5’’ 8 Ohms titanium driver + 1.5’’ 8 Ohms titanium driver Class D + AB 180W RMS amplifier / Class D + AB 180W RMS amplifier / Power 250W max. - Page 12 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
