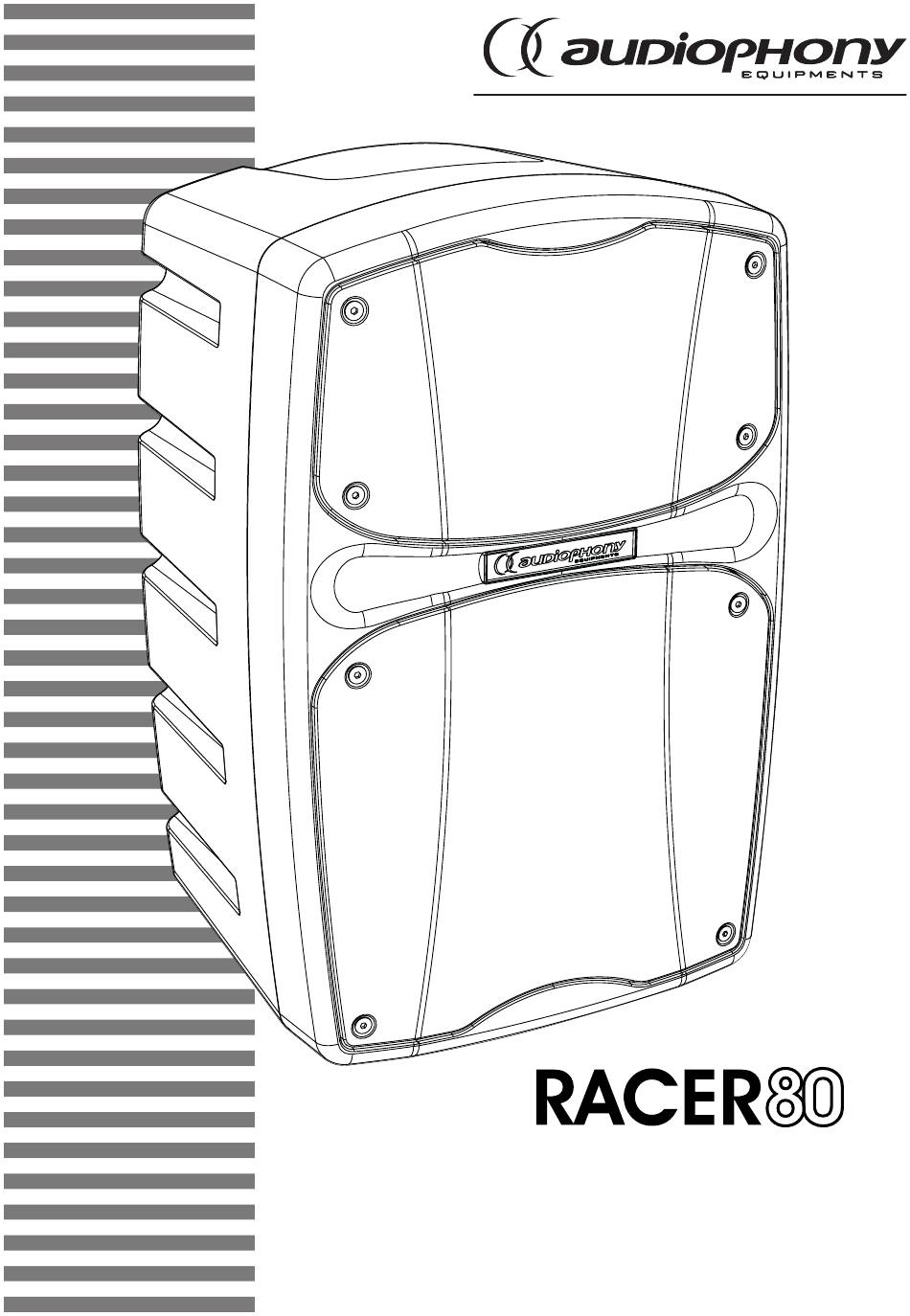

- Page 1 USER GUIDE H11407 - Version 1 / 03-2023...
-
Page 2: Safety Information
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or WARNING : extremely cold/hot locations. - Page 3 - Integrated media player - Optional UHF diversity system The RACER80 is a powerful all-in-one system with excellent sound quality for all your mobile performances. Equipped as standard with a USB/SD player, a Bluetooth TWS receiver and a mixer allowing the connection ®...
- Page 4 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 3 - Les différents modules A - Optional UHF receiver module. See 4.6 for installation. B - USB/SD/Bluetooth TWS module assigned to channel 1 ®...
- Page 5 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - Description of modules 4 - 1 : USB/SD/Bluetooth TWS module ® 1 - SD card slot 2 - Player display 3 - IR diode for receiving remote control signals 4 - USB mass storage port for USB key.
- Page 6 Switch to Bluetooth mode : Short press on MODE. Pairing : To pair your RACER80 switch to Bluetooth mode and the display will show «Bluetooth Disconnected». Now you need to pair a Bluetooth source. Turn on your Bluetooth source and perform a device search.
-
Page 7: Remote Control
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones Multimedia player mode displays Indicates musical mode. Indicates the playback mode. To switch from one mode to another, use key. The top line shows the number of the current song and the bottom line shows the total number of songs. -
Page 8: Mixer Section
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 3 : Mixer section 1 - Input on combo XLR and 6.35 jack. Allows you to connect a line level source, a microphone or a guitar. -
Page 9: Power Supply Section
Please replace the fuse with an identical model only. Fuse T3.15AL 250V. 3 - ON-OFF-CHARGE switch. - In the ON position: The RACER80 is powered - In the OFF position: The RACER80 is off. - In the CHARGE position: The RACER250 batteries are charging. - Page 10 English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 6 : Optional UHF receiver module: RACER-GoMod (F5 or F8) Before handling, make sure that the RACER is switched off. Remove the cover...
-
Page 11: Technical Data
English ® RACER80 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - Technical data 2 channels XLR/TRS combo Line/Mic input 1 1/8" AUX channel Inputs 1 TWS Bluetooth connexion 1 optional UHF microphone Outputs 1 TRS mix output Loudspeaker 6.5"... - Page 12 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ® is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE AUDIOPHONY ®...
