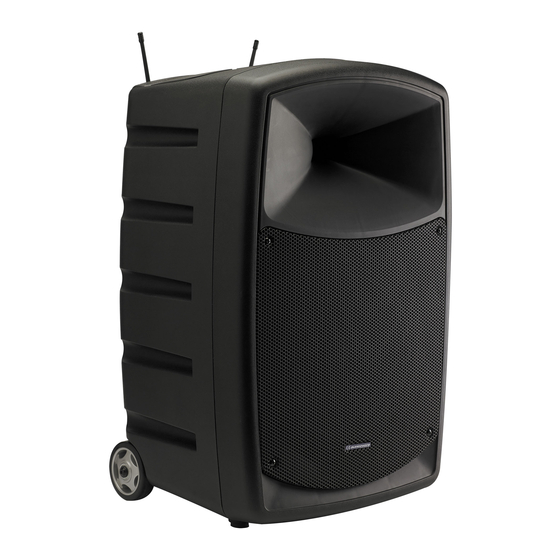

audiophony CR12A-COMBO F5 User Manual

audiophony CR12A-COMBO F5 User Manual

Bluetooth sound system with usb player & 2 handheld mic

Advertisement

Quick Links

F5
F8
USER GUIDE
H10209 / H11024 - Version 2 / 03-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR12A-COMBO F5 and is the answer not in the manual?

Questions and answers

Summary of Contents for audiophony CR12A-COMBO F5

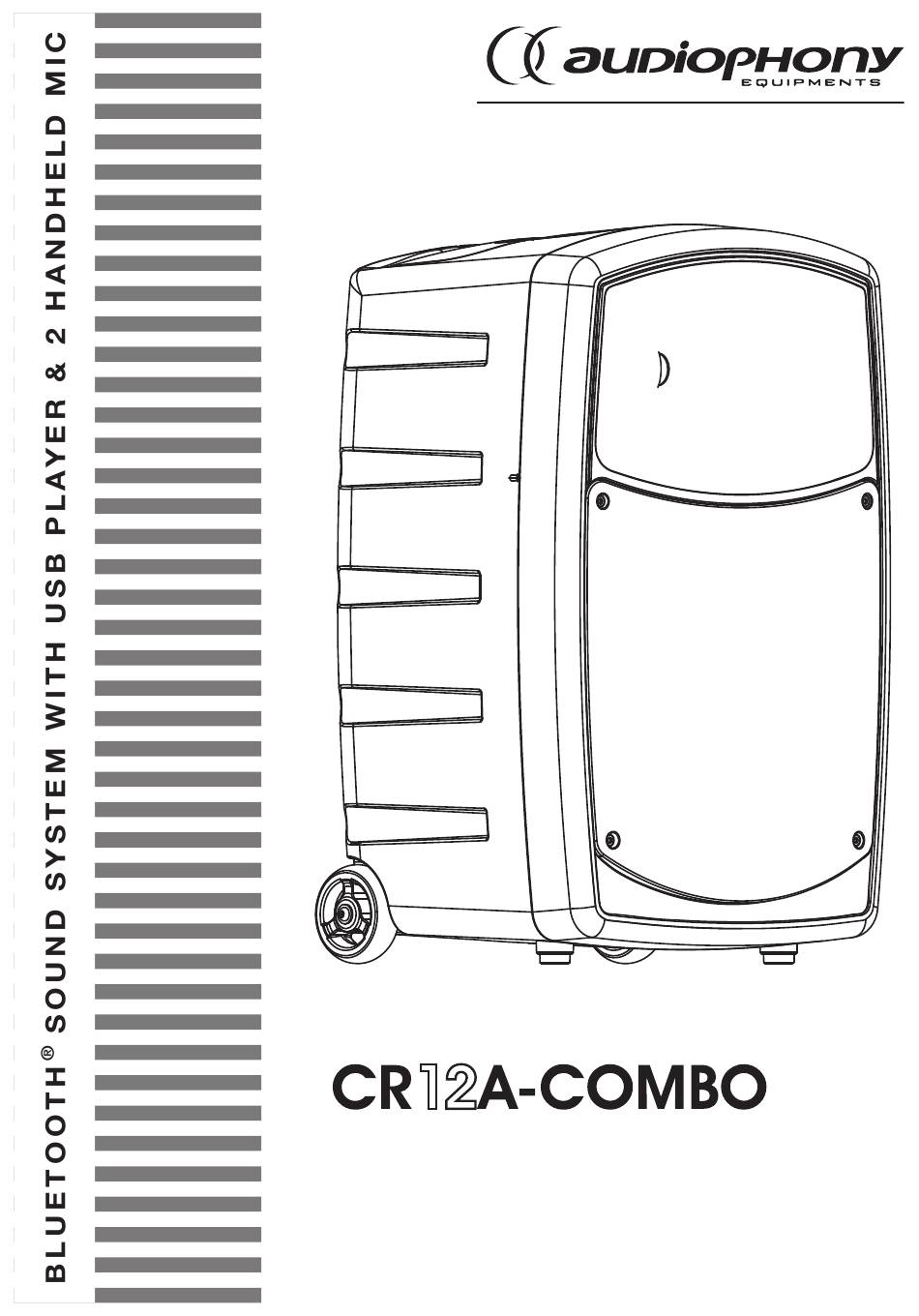

  • Page 1 USER GUIDE H10209 / H11024 - Version 2 / 03-2020...
  • Page 2: Safety Information

    English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations.
  • Page 3 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
  • Page 4 English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 2 - Introduction Thank you for purchasing the CR12A-COMBO. • All-in-one solution • High performance and sound quality • Media player and 2 UHF microphones The CR12A-COMBO is a powerful all-in-one sound system producing a high-quality sound output, adapted to any mobile installation.
  • Page 5 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 3 - The modules Back A - UHF receiving module B - USB/SD/Bluetooth module ® C - Mixing zone Master zone Power supply socket 1 - Integral transport handle 2 - Storage compartment for accessories 3 - Telescopic transport handle...
  • Page 6: Description Of The Modules

    English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 -Description of the modules 4 - 1 : UHF receiving module A1 - Volume control fader for the HF module. From OFF to full power (clockwise).
  • Page 7 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 3 : Remote control The infrared remote control of your reader allows you to remotely control CHANNEL PLAY/PAUSE some fonctions for your SD/USB or Bluetooth sources.
  • Page 8 English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 5 : Master D1 - MASTER volume control fader. From minimum to maximum (clockwise). This fader affects the main volume output. D2 - POWER/LIMIT indicator. Indicates if the sound system is ON and the limiter activated.
  • Page 9 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC E5 - Charge level indicator. The batteries must be charged when the LOW indicator is lit. E6 - Charge level indicator. Is lit in green when the batteries are charging. Note about batteries (optionnal) : Please only use 12V / 5Ah NP batteries with the following dimensions: (width x height x depth): 90x100x70 mm.
  • Page 10 English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 7 : Handheld microphone GAIN BATT 1 - Grille: Protects the capsule. 2 - Gain control: Allows you to configure the microphone sensitivity. The factory settings are optimal, but you can increase/decrease the sensitivity by turning it to the left (decreases) or right (increases).
  • Page 11 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 8 : Optional headband transmitter system: 1 - Jack 3.5 input to connect the microphone 2 - Input level selector. MIC is the standard configuration for the headband microphone.
  • Page 12: Power Management

    English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 7 - Power management 7 - 1 : Safety precautions concerning the batteries 1 - This unit can be equipped with two 12V / 5 Ah batteries for an average autonomy of 6 hours. 2 - The complete charging process approximately lasts 8 hours.
  • Page 13 English ® 120W B CR12A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 9 - New UHF frequency plan The authorised frequency bands can thus be used "freely" by PMSE equipment, i.e. without the need for prior individual authorisation, but subject to compliance with the technical parameters laid down.
  • Page 14: Technical Specifications

    English ® 120W B CR120A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 10 - Technical specifications Loudspeaker 10’’ loudspeaker + 1’’ titanium driver, total impedance: 4 Ohms Power 120W RMS / 240 max Class D amplifier Response curve 55 - 20k Hz Sound pressure level 118 dB SPL max...
  • Page 15 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY ®...
