Martec Esprit DC Smart Series Installation Manual

E s p r i t DC S m a r t S e r i e s In s t a l l a t i o n G u i d e
Thanks for choosing our Esprit DC Smart Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan and LED Light):

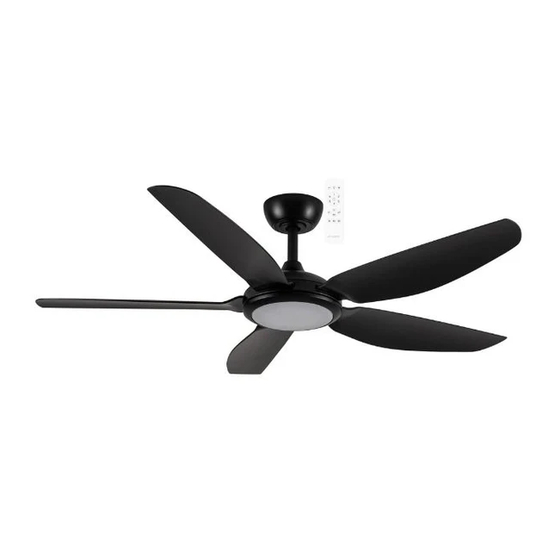

MDCE1353 M Esprit DC 1320mm 5 ABS Blade WIFI & Remote Control Ceiling Fan with Variable Dim 24w CCT LED Light Matt Black
MDCE1353 W Esprit DC 1320mm 5 ABS Blade WIFI & Remote Control Ceiling Fan with Variable Dim 24w CCT LED Light Matt White
Part List:
Qty 1x Motor assembly
Qty 1x Instruction manual
Qty 1x Mounting bracke t
Qty 1x Remote & Receiver
Application
Flat Surface / Ceiling
How to Assemble
Fg.1
Secure the bracket to the ceiling using screws and provided.
Ensure screws are tightened on the bracket.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Slope Ceiling up to 15°
Qty 1x
Qty 1x Screw kit
Qty 1x
Qty 5x Blades
Corrugated Ceiling
Fg.2
LED light kit pan
Acrylic lampshade
Apex Ceiling
Wire to main as illustrated.
