Me t r o D C S m a r t S e r i e s In s t a l l a t i o n G u i d e
Thanks for choosing our Metro DC Smart Series ceiling fan
We strongly recommend that you read this manual carefully before installation
Models Parameters (Fan Only):
MDCM133M

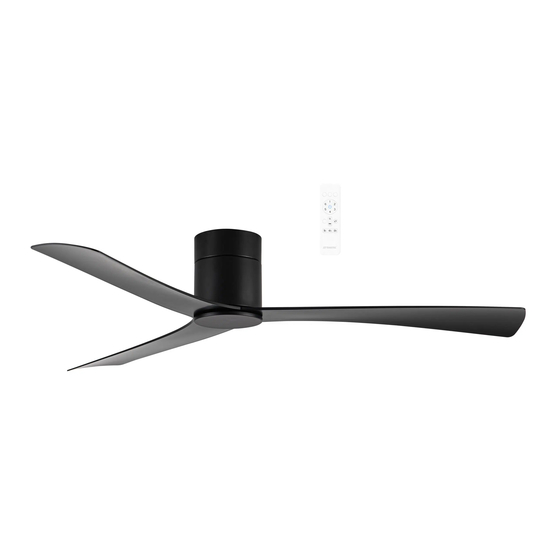

Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan Matt Black
MDCM133W
Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan Matt White
MDCM133WO
Metro DC Close to Ceiling 3 ABS Blade 1320mm Hugger WIFI & Remote Control Ceiling Fan White/Oak
Part List:
Qty 1x Motor assembly
Qty 1x Instruction manual
Qty 1x Hanging bracket
Qty 1x Remote
Application
Flat Surface / Ceiling

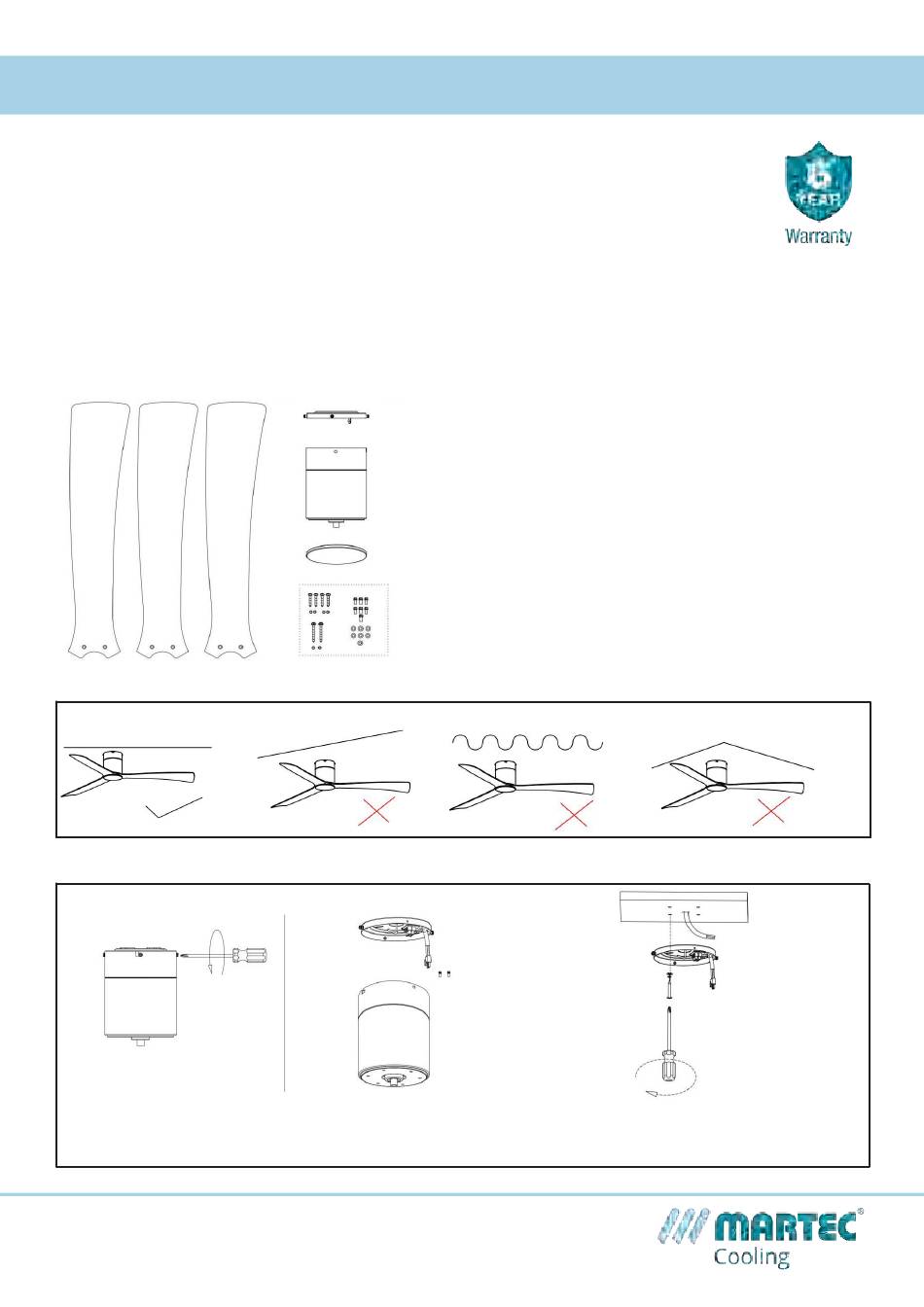

How to Assemble
Fg.1
Remove screws as illustrated to take out the mounting bracket.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
.
Qty 1x Screw kit
Qty 3x Blades
Slope Ceiling
.
Corrugated Ceiling
Fg.2
Secure the ceiling fan mounting plate to the ceiling using
screws and washers provided. Ensure screws are tightened
on the mounting plate.
Apex Ceiling
Advertisement
Related Manuals for Martec Metro DC Smart Series
Summary of Contents for Martec Metro DC Smart Series
- Page 1 Me t r o D C S m a r t S e r i e s In s t a l l a t i o n G u i d e Thanks for choosing our Metro DC Smart Series ceiling fan...
-
Page 2: Important Reminders
WARNING Installation MUST carry out by a qualified and licensed electrician. Fg.3 Wire the mount plate to mains. Fg.4 Wire up the receiver with quick connectors and insert into the mounting bracket. Please Connect the receiver output with motor make sure the antenna wire has been safely and input with the mounting bracket. - Page 3 WARNING Installation MUST carry out by a qualified and licensed electrician. How to Install Fg.5 Fg.6 Carefully install the motor housing into the mounting plate by Scure the motor housing with the 4 screws supplied. pushing and twisting onto the mounting bracket. How to Install Blades Fg.7 Install the blades to the bottom of the motor.
