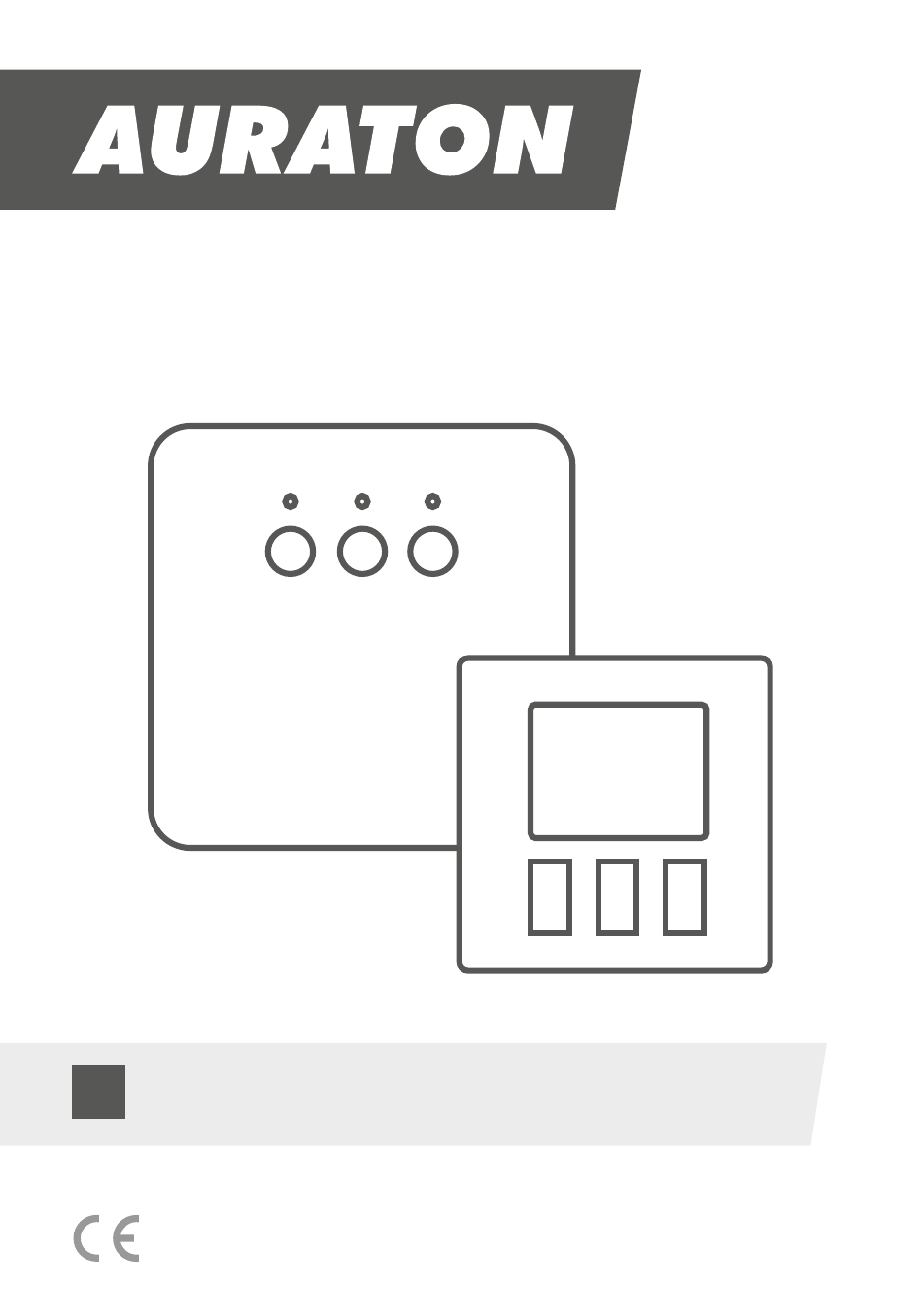

200 RT
O W N E R ' S M A N U A L
EN
w ww . au raton . pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 RT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AURATON 200 RT

Summary of Contents for AURATON 200 RT

  • Page 1 200 RT O W N E R ’ S M A N U A L w ww . au raton . pl...

  • Page 2: Opcjonalne Elementy Systemu

    Operation under the load of up to 16A/10A The AURATON RT receiver is equipped with a relay capable of operating with the load of up to 16A/10A. Its low-sparking technique of switching mains voltage contributes to the low wear of relay contacts.
  • Page 3 AURATON 200 RT temperature controller explained The AURATON RT receiver works with the wireless AURATON 200 RT controller. The received is installed near the heating or air conditioning device and may work with the load of 16A/10A. diode indicating that...
  • Page 4 AURATON 200 RT temperature controller explained The front of the enclosure has a backlit LCD display and three function buttons. LCD display acknowledge or on/off key temperature decrease key temperature temporary temperature decrease increase key mode keys • hold – controller on/off (...
  • Page 5 Display screen AURATON 200 RT 1. Temperature In normal operating mode, the controller displays the temperature of the room it is installed in. 2. Temperature unit ( Indicates temperature displayed in centigrade. 3. Temporary temperature decrease mode indicator ( ) Appears when the temporary temperature decrease program is active.

  • Page 6: Battery Installation/Replacement

    Place two AAA 1.5 V batteries in the battery socket observing the correct polarity. NOTE: We recommend using alkaline batteries to supply AURATON controllers. Rechargeable batteries should not be used because their rated voltage is too low.
  • Page 7 Fixing the AURATON 200 RT controller to the wall To fix the AURATON 200 RT controller to the wall: 1. Remove the enclosure (as described on the “Battery installation/replacement” section). 2. Drill 2 holes diameter 6 mm in the wall (use the back of the controller enclosure to set the right spacing of the holes).
  • Page 8 AURATON 200 RT receiver by unscrewing the screws half way out. 2. Connect the heating device to the terminals of the control connection of the AURATON 200 RT receiver. Follow the service instruction of the heating device. The COM (common) and NO...
  • Page 9 (5 mm). 4. Put the wall plugs in the drilled holes. 5. Fasten the AURATON RT receiver to the wall using screws so that the receiver is well fastened. NOTE: If the wall is wooden, there is no need to use wall plugs. In such a case, drill two holes 2.7 mm in diameter instead of 5 mm, and screw the screws directly into the wood.
  • Page 10 ) – a single sound signal is emitted - on the AURATON RT receiver and by holding it pressed for at least 3 s until the LED diode starts blinking with green light (double sound signal) - then the button must be released.
  • Page 11 The AURATON RT receiver waits for unpairing of the device for 120 seconds. After this period, it automatically returns to normal operation. 2. On the AURATON 200 RT regulator, press and hold the buttons for 6 sec- onds until the transmission symbol ( ) appears on the display.

  • Page 12: Temperature Setting

    3. Press the key to acknowledge selection. FrostGuard function AURATON 200 RT controller features the special FrostGuard function to protect the room from possible freezing. The function is activated when the controller is switched off. With the controller switched off, when the room temperature drops to 2°C, the Fr ( symbols will appear and signal will be sent to the receiver to start heating.
  • Page 13 Setting the temporary temperature decrease mode If, for some reasons, you would like to decrease temperature in the room, everyday and at the same time, by 3°C, temporary reduction for 6 hours is possible. To do so: 1. Press and hold for 3 seconds both keys.

  • Page 14: Pulse-Width Modulation Mode

    Changing hysteresis Hysteresis prevents the device from switching on too often due to insignificant temperature fluctuation. E.g. with HI2 hysteresis and temperature setting of 20°C, the boiler switches on at 19.8°C and switches off at 20.2°C. With HI4 hysteresis and temperature setting of 20°C, the boiler switches on at 19,6°C and switches off at 20.4°C.
  • Page 15 Basic configuration of devices Additional system devices AURATON RT AURATON 200 RT AURATON T-2 AURATON H-1 Receiver connected Wireless temperature Wireless thermometer Window handle to the heating device regulator (sold separately) (sold separately) Uproszczony schemat połączenia AURATON RT z urządzeniem grzewczym heating device...
  • Page 16 T-2 ther- mometer and entering the mode of operation described in item A. 2. The RT receiver can operate with one AURATON 200 RT regulator and/or one T-2 ther- mometer only. Pairing a new regulator causes deregistering the previously paired reg- ulator and the T-2 thermometer.
  • Page 17 T-2 thermometer. B) The window is pivoted. If at least one window is pivoted, the temperature set in the AURATON 200 RT regulator is lowered in AURATON RT receiver down to 3 °C. This state will be maintained until closing.

  • Page 18: Special Situations

    24 hours of operation until the problem is removed. • When both signals return (from the AURATON 200 RT regulator and the T-2 thermometer), the error is cancelled and the receiver enters its normal mode of operation.

  • Page 19: Cleaning And Maintenance

    Additional information and notes • The AURATON 200 RT regulator and/or the T-2 thermometer must be installed at least 1 metre from the RT receiver (too strong a signal from the transmitters can cause interference). • At least 30 seconds must elapse between switching the relay off and on.
  • Page 20 The AURATON RT receiver connection schematics CONTROL HEATING ~230V AC DEVICE e.g. a gas furnace ~230V AC ELECTRIC HEATING DEVICE MAX ~230V 16A PROTECTIVE...

  • Page 21: Technical Specifications

    Additional function: FrostGuard Operating cycle: Daily Working mode control: LED (the RT receiver) / LCD (the regulator) AURATON 200 RT power supply: 2 x AAA 1.5V alkaline batteries RT power supply: 230V AC, 50Hz RT radio frequency: 868 MHz RT Operation range: in a typical building, with standard construction of walls –...
  • Page 23 A template for drilling holes for fastening the AURATON RT receiver (1:1 scale)
  • Page 24 20190215...
