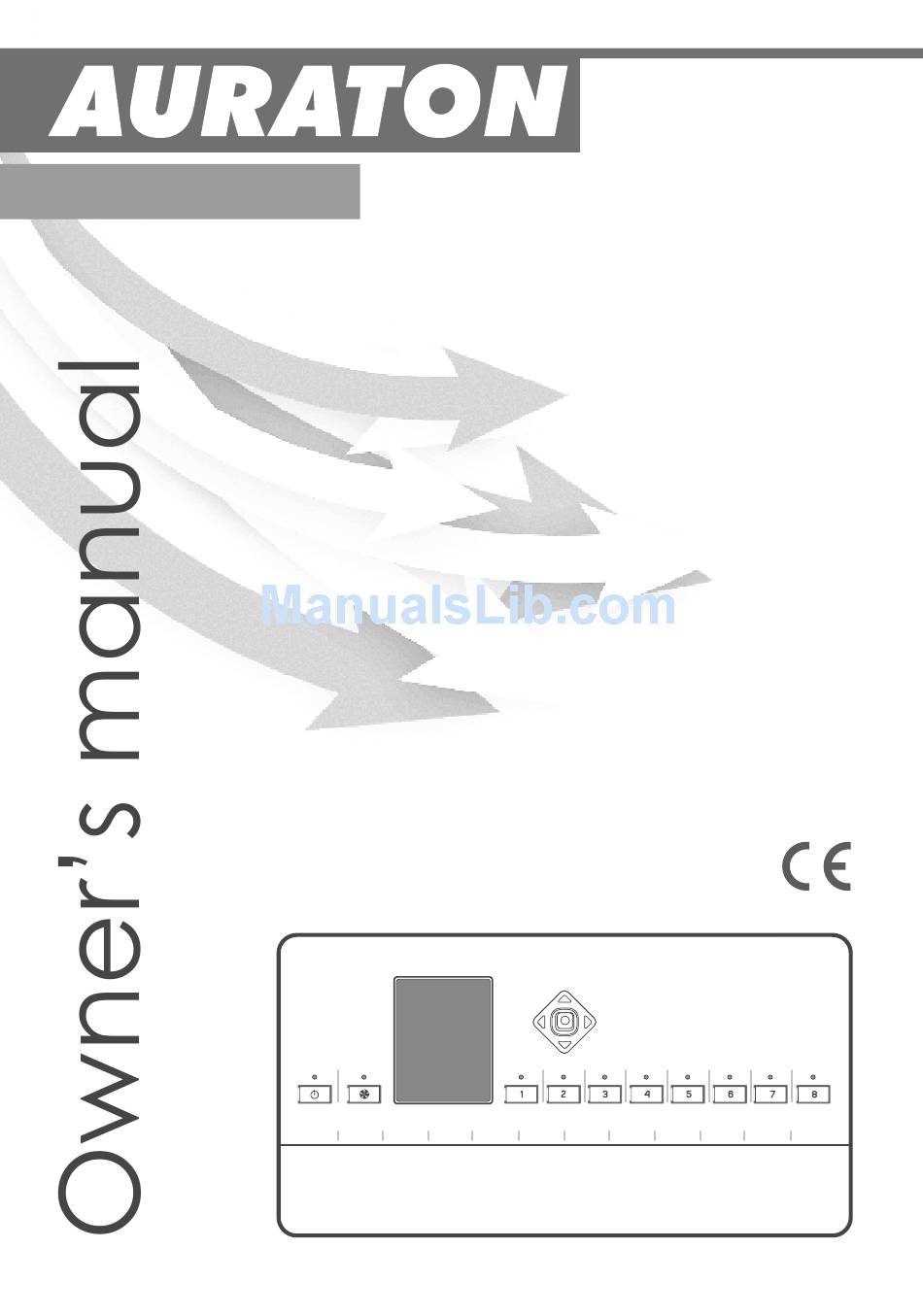

  • Page 1 8000 www.auraton.pl AURATON 8000...
  • Page 2 3°C when the window is pivoted, in order to save energy. ź AURATON 8000 may operate up to 6 handles in one zone. ź AURATON T-2 wireless thermometer. ź...
  • Page 3 AURATON 8000 communicates with wireless transmitters using modern transmission protocol LMS. Description of AURATON 8000...

  • Page 4: Mounting The Controller

    Description of connection terminals Connection terminals are located under the button cover. To remove the cover, unscrew two fixing screws located at the bottom side of the device. COM NO 230VAC Terminal for Potential-free Central Power supply Terminals for hot utility water relay contacts heating pump 230V 50HZ...
  • Page 5 T-2 thermometer. Re-pairing thermostat will delete T2 thermometer from the channel. The window handle should be paired as the last element. NOTE: If a given zone is paired only with T-2 thermometer, then AURATON 8000 will maintain default (factory set) temperature of 20°C in the room where this thermometer is installed.
  • Page 6 Pairing wireless devices to a zone In order to pair wireless temperature sensors, thermostats or LMS window handles with the selected zone perform the following procedures: 1. Press the button of a selected zone [1 ]...[8 ] for 3s, wait for a single acoustic signal and then release the button.
  • Page 7 When a LED of any zone continues to blink after deleting process, it means that the controller waits for deleting other LMS devices. NOTE: Deleting process in selected zone turns off automatically after 60s. Deleting wireless devices (LMS) using a list In order to delete all LMS from AURATON 8000, proceed as AURATON follows: 8000 1.
  • Page 8 Activating the regulator head in any heating zone of AURATON 8000 results in activating the relay. ź The relay is turned off when heating in all zones of AURATON 8000 is turned off. Signalling controller operation The controller signals its operation by LEDs, LCD and acoustic signals.
  • Page 9 AURATON 2025 RTH or AURATON 2030 RTH. When only 24 h regulators without a clock (e.g. AURATON 200) are paired, then the pump operates only in interval mode (operating time and break time may be programmed).
  • Page 10 Hot water circuit 2. Use controller [ko] (up & down), to select a day of the week and confirm it by pressing [ko] button. 3. To set operating hours for the pump activate/inactivate rectangles at the time line – (activated rectangle – the pump works;...
  • Page 11 An example of programmed timeline for pump operation from Monday to Sunday. Pump operating hours Monday 6:00 – 8:00; 15:00 – 23:00 Tuesday 6:00 – 8:00; 15:00 – 23:00 Wednesday 6:00 – 8:00; 15:00 – 23:00 Thursday 6:00 – 8:00; 15:00 – 23:00 Friday 6:00 –...
  • Page 12 Description of display during normal operation mode Clock with days of the week – set automatically by a signal from the temperature regulator, equipped with a clock (e.g. AURATON 2030RTH). At least one 1 temperature regulator, equipped with a clock must be paired with the device.
  • Page 13 Status of other devices paired with the zone (here a wireless window handle - AURATON H-1) 0.2°C History of relay operation Hysteresis for the last 24 hours (graph)
  • Page 14 In this case AURATON 8000 runs the same heating schedule for a given zone (the one with lost communication) as for the last 24 hours stored in the controller memory.

  • Page 15: Resetting The Controller

    In case of any problems with communication due to e.g. excessive distance of ź Auraton 8000 from the regulators a repeater (signal amplifier) may be used. It is assumed that a signal level below 20% requires the use of a repeater (LMS signal ź...

  • Page 16: Technical Specifications

    8 thermostats and/or 8 thermometers Output load capacity of the outputs 30 W per zone controlling heads 230V: up to 6 AURATON regulators Output load capacity of the central 200 W heating pump 230V: Load capacity of the relay: 230 VAC, 2 A...
