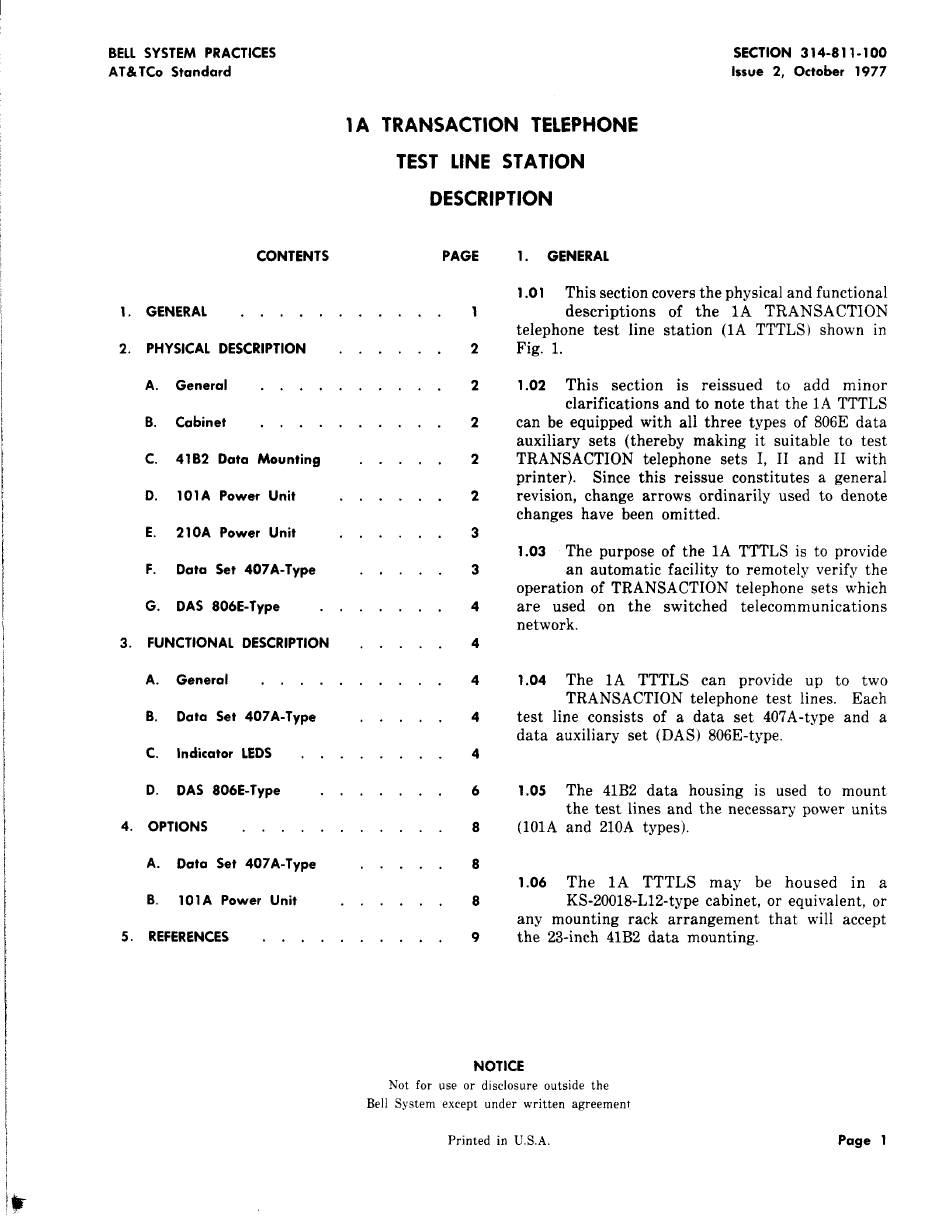

BELL SYSTEM PRACTICES
AT&TCo Standard
SECTION 314-811-100
Issue 2, October 1977
1A TRANSACTION TELEPHONE
TEST LINE STATION
DESCRIPTION
CONTENTS PAGE
1. GENERAL . . . . . . . . . . .
2. PHYSICAL DESCRIPTION . . . . . .
A. General . . . . . . . . . .
B. Cabinet . . . . . . . . . .
C. 41 B2 Data Mounting . . . . .
D.
101A Power Unit . . . . . .
E. 21OA Power Unit . . . . . .
F. Data Set 407A-Type . , . . .
G. DAS 806E-Type . . . . . . .
3. FUNCTIONAL DESCRIPTION . . . . .
A. General . . . . . . . . . .
B. Data Set 407A-Type . . . . .
C. Indicator LEDS . . . . . . . .
D. DAS 806E-Type . . . . . . .
4. OPTIONS . . . . . . . . . . .
A. Data Set 407A-Type . . . . .
B,
101A Power Unit . . . . . .
5. REFERENCES . . . . . . . . . .
1
2
2
2
2
2
3
3
4
4
4
4
4
6
8
8
8
9
1. GENERAL
1.01 This section covers the physical and functional
descriptions of the 1A TRANSACTION
telephone test line station (1A TTTLS) shown in
Fig. 1.
1.02
This section is reissued to add minor
clarifications and to note that the 1A TTTLS
can be equipped with all three types of 806E data
auxiliary sets (thereby making it suitable to test
TRANSACTION telephone sets I, II and II with
printer). Since this reissue constitutes a general
revision, change arrows ordinarily used to denote
changes have been omitted.
1.03 The purpose of the 1A TTTLS is to provide
an automatic facility to remotely verify the
operation of TRANSACTION telephone sets which
are used on the switched telecommunications
network.
1.04
The 1A TTTLS can provide up to two
TRANSACTION telephone test lines. Each
test line consists of a data set 407A-type and a
data auxiliary set (DAS) 806E-type.
1.05
The 41B2 data housing is used to mount
the test lines and the necessary power units
(101A and 21OA types).
1.06
The 1A TTTLS may be housed in a
KS-20018-L12-type cabinet, or equivalent, or
any mounting rack arrangement that will accept
the 23-inch 41B2 data mounting.
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Page 1
