1

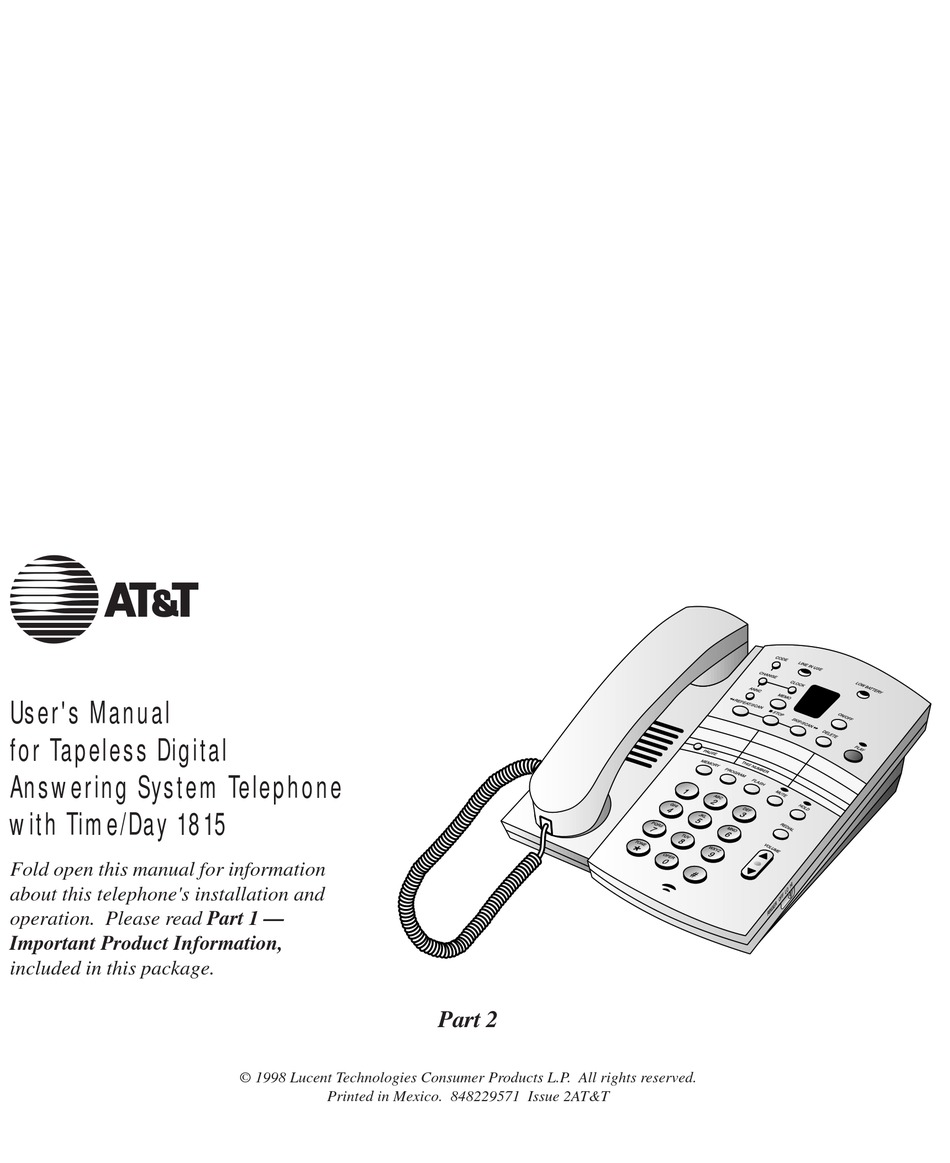

User's Manual
for Tapeless Digital
Answering System Telephone
with Time/Day 1815
Fold open this manual for information
about this telephone's installation and
operation. Please read Part 1 —
Important Product Information,
included in this package.
Part 2
© 1998 Lucent Technologies Consumer Products L.P. All rights reserved.
Printed in Mexico. 848229571 Issue 2AT&T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1815 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AT&T 1815

  • Page 1 User's Manual for Tapeless Digital Answering System Telephone with Time/Day 1815 Fold open this manual for information about this telephone's installation and operation. Please read Part 1 — Important Product Information, included in this package. Part 2 © 1998 Lucent Technologies Consumer Products L.P. All rights reserved.
  • Page 2: Installation

    I N S T A L L A T I O N RING SELECT POWER Telephone Line Cord FOR TABLE/DESK INSTALLATION Install the batteries (optional). • Turn the unit upside down. • Push in on the two tabs at the large end of the base, and lift the base off the unit.
  • Page 3 I N S T A L L A T I O N Figure 1 FOR WALL INSTALLATION Reverse the handset tab. (This tab holds the handset when you hang up.) Hold down the switchhook, and slide the tab up and out of its slot. Turn the tab so that the end with the “hook”...
  • Page 4: Operation

    T E L E P H O N E Dial Mode This phone comes set to operate with touch tone service. If you have dial pulse (rotary) service, you will need to reset the dial mode. If you hear clicks (not tones) when you dial, you have dial pulse (rotary) service.
  • Page 5: Dialing Memory Numbers

    T E L E P H O N E Light is on when phone line is in use. Store a pause in a memory dialing number. Dial numbers in telephone memory. Store numbers in telephone memory. Temporary Tone The telephone can store 9 telephone numbers, each up to 24 digits long.
  • Page 6: Answering System Operation

    A N S W E R I N G S Y S T E M O P E R A T I O N Set and hear Remote Access Code. Use with other buttons to change settings. Set and hear time/day. Record and hear outgoing announcement.
  • Page 7: Answering Calls

    A N S W E R I N G S Y S T E M O P E R A T I O N Answering Calls When the system answers a call, the caller hears the announce- ment you recorded, followed by a beep. After the beep, the system begins recording your caller’s message.
  • Page 8: Recording A Memo

    A N S W E R I N G S Y S T E M O P E R A T I O N Recording a Memo You can record a memo to be stored as an incoming message. The memo can be up to 3 minutes long, and will be played back with other messages.
  • Page 9: Playing Messages

    A N S W E R I N G S Y S T E M O P E R A T I O N From a Remote Touch Tone Phone Playing Messages Dial your telephone number from a touch tone phone. When the system answers, enter your Remote Access Code.
  • Page 10: In Case Of Difficulty

    I N C A S E O F D I F F I C U L T Y If this answering system does not work properly, try the following suggestions. If you’re still having difficulty, call 1 800 222–3111. No Dial Tone •...
  • Page 11: Answering System

    L.P. Products Consumer fold Tapeless Digital Answering System 1815 Remote Commands Access Answering System 1 Dial your telephone number from a touch tone phone. 2 When the system answers, enter your Remote Access Code. The system announces the number of messages and beeps twice.
  • Page 12 REMOTE COMMAND PRESS Play all messages Play only new messages 4 while message is playing Repeat message 6 while message is playing Skip message 3, 3 Delete all messages 3 while message is playing Delete selected message 7, *, speak, press 5 to stop. Record announcement 7, 1 Review announcement...
  • Page 13 If the light stays on, replace the batteries with 4 new ones. User's Manual for Tapeless Digital Answering System Telephone with Time/Day 1815 Fold open this manual for information about this telephone's installation and operation. Please read Part 1 —...
  • Page 14 T E L E P H O N E O P E R A T I O N Dial Mode Mute This phone comes set to operate with touch tone service. If you Mute lets you hear the other party, but prevents the other party have dial pulse (rotary) service, you will need to reset the dial from hearing you.
