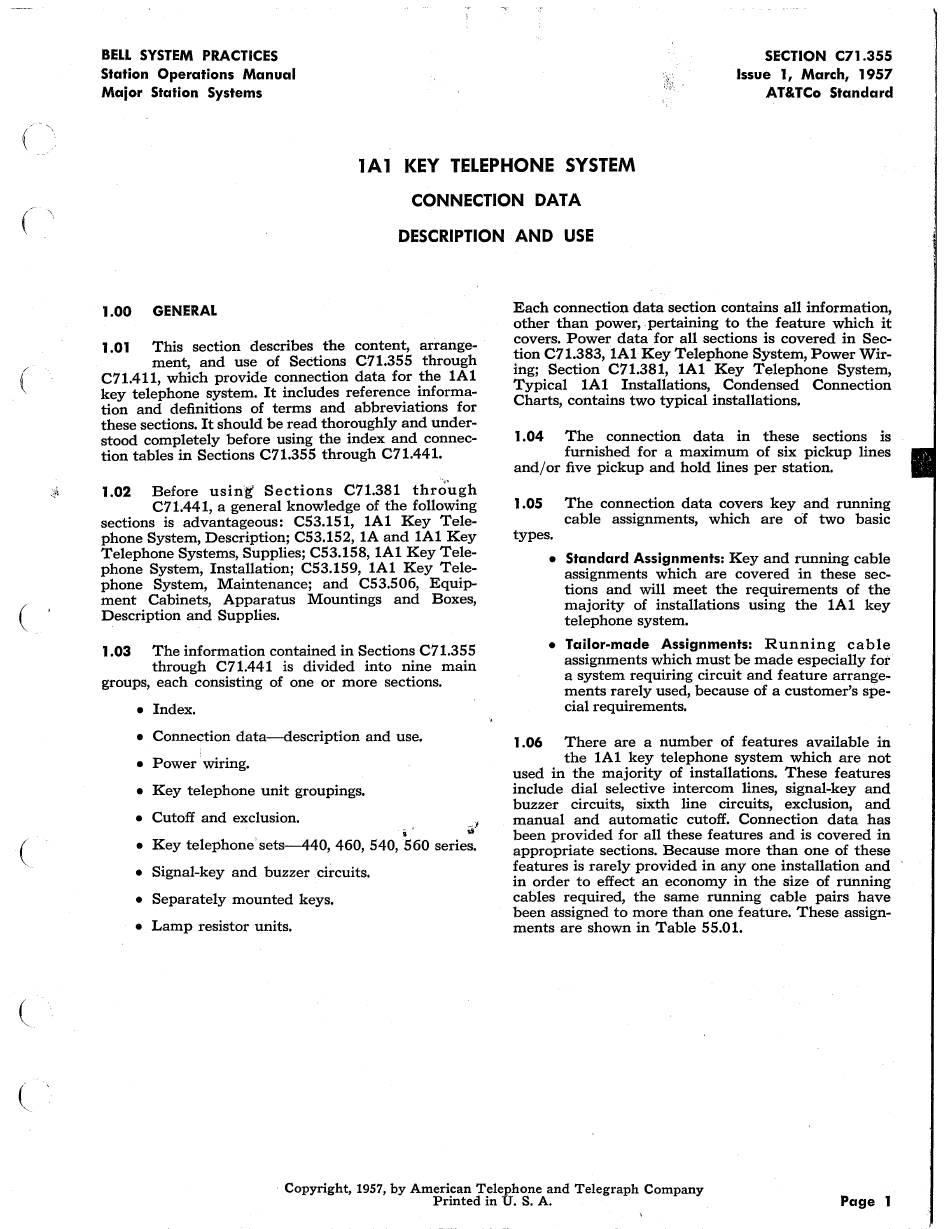

BELL SYSTEM PRACTICES
Station Operations
Manual
Maior Station Systems
SECTION C71.355
Issue 1, March, 1957
AT&TCo Standard
1A1 KEY TELEPHONE SYSTEM
CONNECTION DATA
DESCRIPTION AND USE
1.00
GENERAL
1 .01
This section describes
the content,
arrange-
ment, and use of Sections C71.355 through
C71.411, which provide connection data for the lAl
key telephone system. It includes reference informa-
tion and definitions of terms and abbreviations
for
these sections. It should be read thoroughly and under-
stood completely before using the index and connec-
tion tables in Sections C71.355 through C71.441.
1.02
Before
using'
Sections
C71.381
thr~ugh
C71.441, a general knowledge of the following
sections is advantageous:
C53.151, lAl
Key Tele-
phone System, Description; C53.152, lA and lAl Key
Telephone Systems, Supplies; C53.158, lAl Key Tele-
phone System, Installation;
C53.159, lAl Key Tele-
phone System, Maintenance;
and C53.506, Equip-
ment
Cabinets,
Apparatus
Mountings
and
Boxes,
Description and Supplies.
1.03
The information contained in Sections C7 l.355
through
C71.441 is divided
into nine main
groups, each consisting of one or more sections.
• Index.
• Connection data-description
and use.
• Power wiring.
• Key telephone unit groupings.
• Cutoff and exclusion.
~,
11
15
• Key telephone sets-440,
460, 540, 560 series.
• Signal-key and buzzer circuits.
• Separately
mounted keys.
• Lamp resistor units.
Each connection data section contains all information,
other than power, . pertaining
to the feature which it
covers. Power data for all sections is covered in Sec-
tion C71.383, lAl Key Telephone System, Power Wir-
ing; Section C71.381, lAl
Key Telephone
System
Typical
lA 1 Installations,
Condensed
Connectio~
Charts, contains two typical installations.
1.04
The
connection
data
in these
sections
is
furnished for a maximum of six pickup lines
and/or five pickup and hold lines per station.
1.05
The connection data covers key and running
cable assignments,
which are of two basic
types.
• Standard Assignments:
Key and running cable
assignments
which are covered in these sec-
tions and will meet the requirements
of the
majority
of installations
using the lAl
key
telephone system.
• Tailor-made
Assignments:
Running
cable
assignments which must be made especially fot
a system requiring circuit and feature arrange-
ments rarely used, because of a customer's spe-
cial requirements.
1 .06
There are a number of features
available
in
the lA 1 key telephone system which are not
used in the majority
of installations.
These features
include dial selective intercom
lines, signal-key
and
buzzer
circuits,
sixth
line circuits,
exclusion,
and
manual
and automatic
cutoff. Connection
data has
been provided for all these features and is covered in
appropriate
sections. Because more than one of these
features is rarely provided in any one installation
and
in order to effect an economy in the size of running
cables required, the same running cable pairs have
been assigned to more than one feature. These assign-
ments are shown in Table 55.01.
· Copyright,
1957, by American Telephone
and Telegraph
Company
Printed in U.S. A.
Page 1
