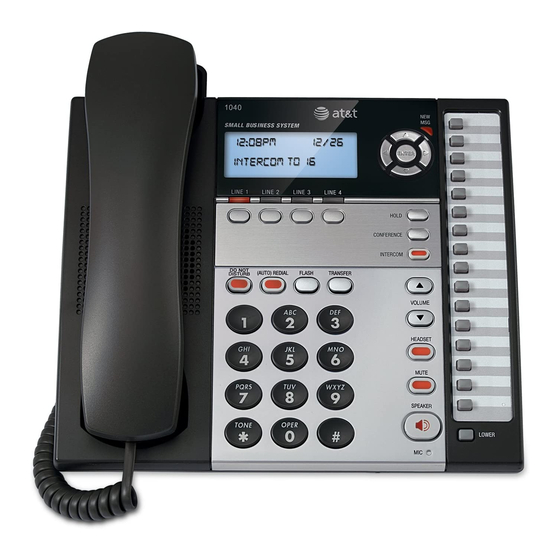

AT&T 1040 Quick Reference Manual

4-line small business system with speakerphone
Hide thumbs Also See for 1040:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Quick reference guide
1040
4-Line small business
system with speakerphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AT&T 1040

Summary of Contents for AT&T 1040

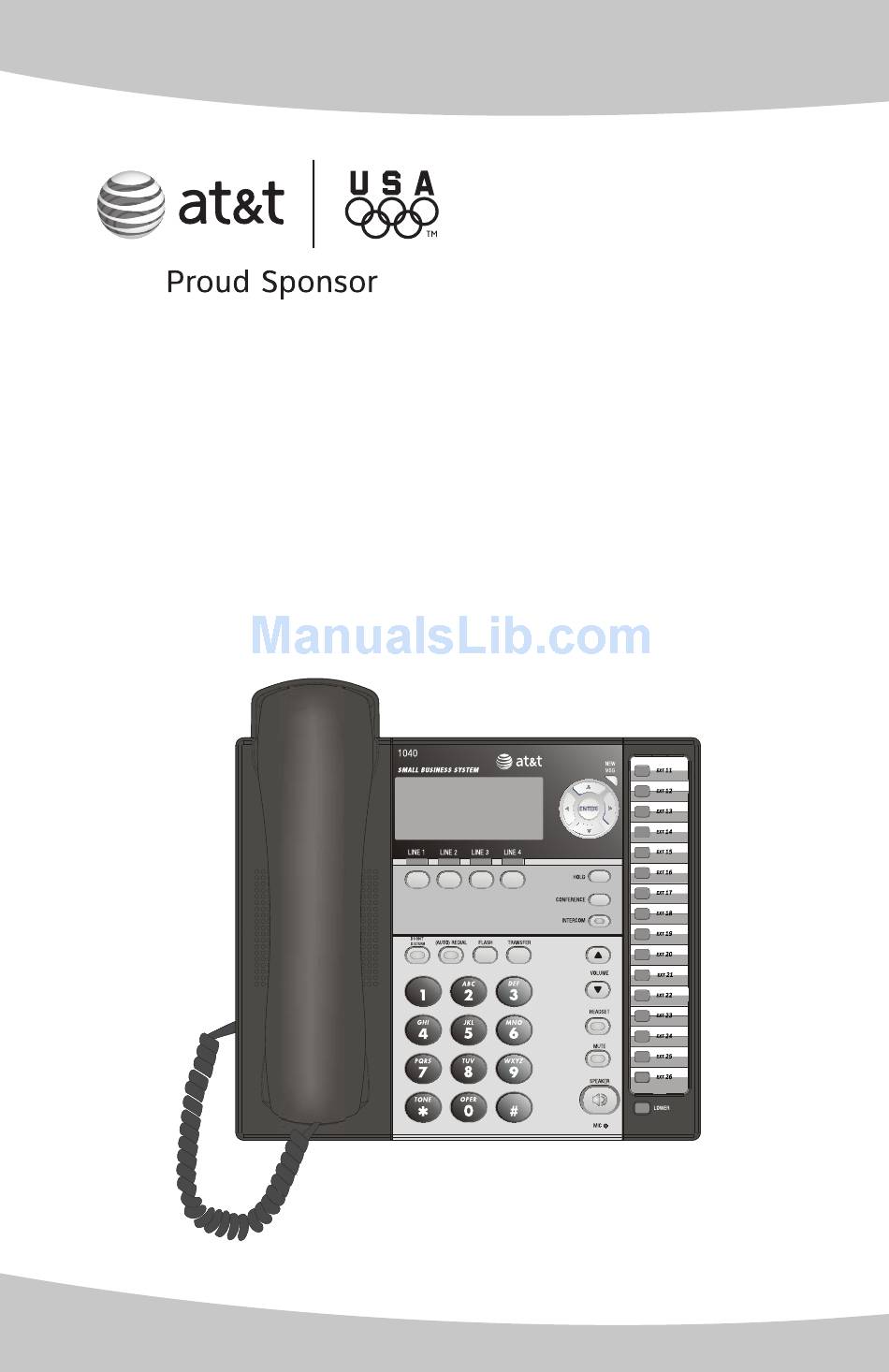

  • Page 1 Quick reference guide 1040 4-Line small business system with speakerphone...
  • Page 2 This quick reference guide provides basic instructions. For additional installation options and complete instructions that enable you to use all features of this phone, refer to your AT&T 040 4-Line small business system with speakerphone user’s manual and installation guide. STOP All DSL lines must have either filters or splitters.

  • Page 3: Telephone Overview

    Telephone overview LINE BUTTONS, 1-4 Press to make or answer a call on the desired line. While on a call, press to release the call privacy feature. TRANSFER Press to transfer an outside call to an- other 040, 070, DO NOT DISTURB or 080 extension Press twice to turn telephone.
  • Page 4 Telephone overview One-touch keys Navigation keys Press to make an in- Press to scroll up, down, tercom call or a one- left or right while in touch outside call. the menu. VOLUME ENTER While the telephone Press until you see the is not in use, press main menu.

  • Page 5: Display Screen Messages

    Display screen messages AC FAIL There is no AC power to the set. If a good battery is installed, basic phone operation (such as making and answering calls on the handset) is supported. Speakerphone, headset and call privacy are not supported. The handset volume will be at the minimum level and only the two lowest levels of the ringer volume will be available.

  • Page 6: Indicator Lights & Tones

    Indicator lights & tones Indicator lights LINE Green: • On when the line is in use. • Flashes slowly when the line is on hold. • Flashes quickly when there is an incoming transferred call on the line, when there is an incoming call, or when there is an incoming auto-attendant transferred call on the line.
  • Page 7 Indicator lights & tones Continued from previous page NEW MSG • Flashes when there are new system extension messages. The screen will display ”DTAD: XX/YY”, with “XX” representing a number greater than zero. INTERCOM • On when the telephone is on an intercom call or a paged call.

  • Page 8: Automatic Mode

    Making and answering calls This phone comes programmed to use line  (default prime line) for calls when you do not press a line button. To change the prime line, see the PRIME LINE section of your installation guide. When you answer a call, the phone automatically selects the ringing line.

  • Page 9: Call Transfer

    Call transfer Blind transfer 0:0AM / Use this feature to make a blind transfer. While on 00:0 a call: Press [TRANSFER]. The outside call is automatically put on hold. TRANSFER LINE#Y 0:0AM / TO (with Y being the line in use) appears on the 00:0 third line of the display.

  • Page 10: Conference Calls

    Conference calls Use this feature to set up a three-party call by using two lines at the same time. You can also join an intercom call with a call on an outside line. The outside line call must be established first, because an intercom call cannot be put on hold.
  • Page 11 Intercom Use this feature to make calls between system phones. An intercom call rings at the extension called with a repeating double-ring pattern. Make an intercom call with the handset If the one-touch preference is set to INTERCOM, skip to step . -OR- 0:0AM /...
  • Page 12 Intercom Answer an intercom call Use this feature to answer an intercom call. When you receive an intercom call, you hear a repeating double-ring pattern and your screen displays INTERCOM FROM with the extension number of 0:0AM / the caller. Answer the intercom call by lifting the EXT  handset, or by pressing [INTERCOM], INTERCOM FROM ...

  • Page 13: One-Touch Overview

    One-touch overview This telephone has  one-touch locations (speed dial locations) where you can store the phone numbers you wish to dial using fewer keys than usual. You can store up to 4 digits in each location. The steps used to dial numbers stored in one-touch locations vary according to how you NOTE: Also use the programmed the one-touch preference.

  • Page 14: One-Touch Storage

    One-touch storage For more information about using the display screen menus, see the Menu operation section of your installation guide. Use the following steps to program the one-touch PROGRAM keys. (ENTER NUMBER) Press [ENTER]. The screen displays ONE TOUCH. PAUSE Press [ENTER].

  • Page 15: To Dial A One-Touch Number

    To dial a one-touch number For more information about using the display screen menus, see the Menu operation section of your installation guide. Use this feature to dial a one-touch number. The one-touch preference is preset to INTERCOM. NOTE: To change one-touch preference, see PREFERENCE section of your installation guide.
  • Page 16 Setting up the auto attendant and message recording If your system has one or more 080 extensions, these 080 telephones may be set up to record messages directed to your system extension in your system. Messages System extension messages are the messages recorded on a 080 extension for individual 070 and 040 telephones (see the Forwarding to DTAD mailbox section of your user’s manual.) Play these messages from your extension.
  • Page 17 www.telephones.att.com © 2007-2009 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 5 AT&T 09/09.
