CDVI KRYPTO K1BT Quick Start Installation Manual

K1BT
KRYPTO Bluetooth
High-Security Card Reader
CDVI's KRYPTO K1BT card reader facilitates high
security!

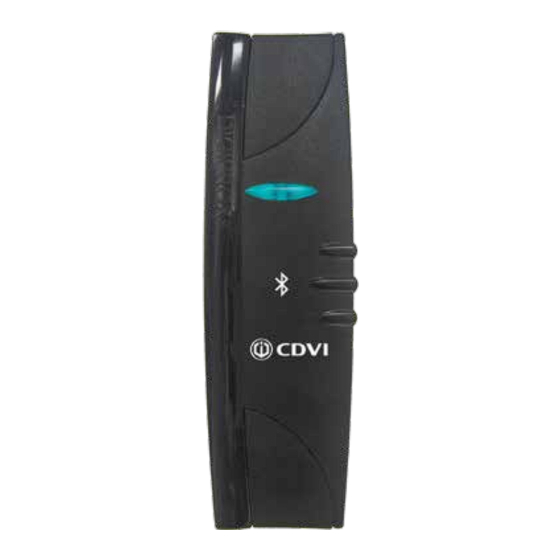

The K1BT KRYPTO bluetooth reader is
compatible with the ATRIUM BT mobile
application and the KRYPTO Mobile-PASS.
The K1BT works with the secure protocol of
CDVI, the encryption keys guarantee end-to-
end encryption between the credential, the
reader and the A22K door controller.
KRYPTO K1BT - High security made easy!
• Works with ATRIUM A22K controller
• Compatible with ATRIUM BT application
and KRYPTO Mobile-PASS (Bluetooth)
• FULLY secure RS-485 connection (4 wires)
• Reads KRYPTO Mobile-PASS, 13.56 MHz
Mifare Classic and DESFire EV1/EV2
credentials
• OSDP-2 compatible
• Up to 2" (5 cm) read range
• Power requirements: 12 VDC
• Current consumption : 200mA
QUICK START
INSTALLATION GUIDE
Certification
Certification
-25°C to +60°C
IP53
DEEE
w w w . c d v i . c a
0.91" 1.65"
(23 mm) (42 mm)
