k1
KRYPTO
High-Security Card Reader

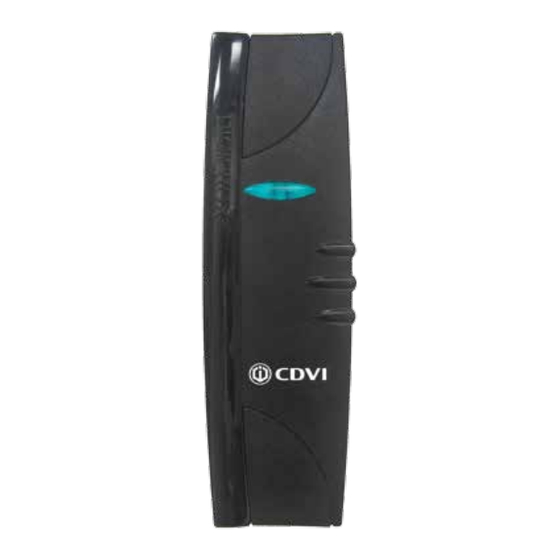

CDVI's economical KRYPTO K1 card reader
makes high security easy!
KRYPTO K1 Mifare DESFire EV2 readers
combined with CDVI EV2 credentials work right
out of the box. No tedious and complicated
programming required!
Factory-programmed, industry-unique secure
CDVI protocol and encryption keys ensure end-
to-end encryption between the card, reader and
A22K door controller.
KRYPTO K1 – High Security Made Easy!
• Compatible with ATRIUM A22K controller
• FULLY secure RS-485 connection (4 wires)
• Reads 13.56 MHz Mifare Classic and
DESFire EV1/EV2 credentials
• OSDP-2 compatible
• NFC mobile credential ready
• Up to 2" (5 cm) read range
• Power requirements: 12 VDC
• Current consumption : 200mA
quick start
installation guide
Certification
Certification
-25°C to +60°C
IP53
DEEE
w w w . c d v i . c a
0.91"
1.65"
(23 mm)
(42 mm)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CDVI KRYPTO K1
Summary of Contents for CDVI KRYPTO K1
- Page 1 -25°C to +60°C Factory-programmed, industry-unique secure IP53 CDVI protocol and encryption keys ensure end- to-end encryption between the card, reader and DEEE A22K door controller. KRYPTO K1 – High Security Made Easy! 0.91" 1.65" (23 mm) (42 mm) • Compatible with ATRIUM A22K controller • FULLY secure RS-485 connection (4 wires) • Reads 13.56 MHz Mifare Classic and...
- Page 2 SYSTEM STATUS +12V DC INPUT RS485 +24V DC quick start POWER LOCAL SUPPLY installation guide Input 1 EXTRA Input 2 INPUTS/ BATTERY Output 1 +12V DC OUTPUTS BACKUP ENCLOSURE +12V DC Wiring diagram TAMPER Output 2 SWITCH INPUTS LOCKS INPUT a22k controller It is recommended to use twisted pair wiring as shown DOOR 1...
