Epson TM-T70 Manual

DIP Switch Tables

DIP switch 1 (Serial Interface)

SW Function ON OFF
1-1 Data reception error Ignored Prints "?"
1-2 Receive buffer capacity 45 bytes 4K bytes
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Data word length 7 bits 8 bits
1-5 Parity check Enabled Disabled
1-6 Parity selection Even Odd
1-7
1-8 		Selects transmission speed. (See Table A.)

DIP switch 1 (Interface other than Serial)

SW Function ON OFF
1-1 Auto line feed Always enabled Always disabled
1-2 Receive buffer capacity 45 bytes 4K bytes
1-3 Reserved – –
1-4 Error signal output Disabled Enabled
1-5~
1-8 		Reserved – –

DIP switch 2 (Interface other than Serial)
SW Function ON OFF
2-1 Handshaking
(BUSY condition) 		Receive
buffer full 		Offline or receive
buffer full
2-2 Reserved (Do not change) Fixed to OFF
2-3
2-4 		Print density See Table B.
2-5 Reserved – –
2-6
2-7 		Reserved (Do not change) Fixed to OFF
2-8 I/F pin 31 reset
(Do not change) 		Enabled Disabled

Table A

Transmission speed (bps)-bits per second 1-7 1-8
Adjustable by control commands (default: 115200) ON ON
4800 OFF ON
9600 ON OFF
19200 OFF OFF

DIP switch 2 (Serial Interface)

SW Function ON OFF
2-1 Handshaking
(BUSY condition) 		Receive
buffer full 		Offline or Receive
buffer full
2-2 Reserved (Do not change) Fixed to OFF
2-3
2-4 		Selects print density See Table A.
2-5 Reserved – –
2-6 Reserved (Do not change) Fixed to OFF
2-7 I/F pin 6 reset signal Enabled Disabled
2-8 I/F pin 25 reset signal Enabled Disabled

Table B

Print density/low power SW 2-3 SW 2-4
Print density (Standard) ON ON
OFF OFF
Print density (Darker than standard) ON OFF
Print density (Dark) OFF ON

Specifications

Chinese/Taiwanese model South Asian model
Printing method Thermal line printing
Dot density 203 dpi × 203 dpi
Printing direction Unidirectional with friction feed
Printing width 72 mm {2.83"}, 576 dot positions

Characters per line

(default)

 Font A: 48, Font B: 72
Kanji Font A: 24 		Font A, Special Font A: 48
Font B, Special Font B: 64
Character structure*1 Font A (default): 12 × 24
Font B: 8 × 16
Kanji Font A: 24 × 24 		Font A (default): 12 × 24 (12 × 72)
Font B: 9 × 17 (9 × 51)
Special Font A: 12 × 24 (12 × 72)
Special Font B: 9 × 24 (9 × 72)
Character size*1
(Standard/Doubleheight/Double-width/ Double-width/Doubleheight)

Font A: 1.5 × 3.0/1.5 × 6.0/3.0 × 3.0/
3.0 × 6.0 mm

Font B: 1.1 × 2.1/1.1 × 4.2/2.2 × 2.1/ 2.2 × 4.2 mm Kanji

Font A:
3.0 × 3.0/3.0 × 6.0/6.0 × 3.0/6.0 × 6.0mm

Font A and Special Font A:
1.5 × 3.0 (1.5 × 9.0)/1.5 × 6.0(1.5 ×
18.0)/3.0 × 3.0 (3.0 × 9.0) /3.0 × 6.0 (3.0 × 18.0) mm

Font B: 1.1 × 2.1(1.1 × 6.3)/1.1 × 4.2
(1.1 × 12.7)/2.2 × 2.1 (2.2 × 6.3)/2.2 × 4.2 (2.2 × 12.7) mm

Special Font B: 1.1 × 2.1(1.1 × 9.0)/1.1 × 4.2 (1.1 × 18.0)/2.2 × 2.1 (2.2 ×9.0)/2.2 × 4.2 (2.2 × 12.7) mm
Number of characters Alphanumeric characters: 95
International characters: 48
Extended graphics: 128 × 11 pages
(including user-defined page)
Simplified Chinese characters
(GB1830-2000): 28553
Traditional Chinese characters
(Big5): 13535 		Alphanumeric characters: 95
International character: 1
Extended graphics: 128 × 1 table Thai characters: 128 × 3 pages (133 character types)
Vietnam characters: 128 × 2 pages
(135 character types)
Printing speed

High-speed mode:
170 mm/s {6.69"/s} max.; 40.2 lps (4.23 mm {1/6"} feed) Ladder bar code and 2D code: 100 mm/s {3.9"/s}

The above speed values are approximate.
The values are when the printer prints with density "Normal" at 24 V and 25°C {77°F}.
Speed is adjusted automatically depending on the voltage applied and head temperature.
Paper feed speed Approx. 170 mm/s {approx. 6.69"/s} continuous paper feed
Line spacing (default) 3.75 mm {0.15"}
Roll Paper (single-ply) Width: 79.5 mm ± 0.5 mm {3.13" ± 0.02"},
Maximum outside diameter: 83 mm {3.27"}
Roll Paper spool diameter: Inside: 12 mm {0.47"}; Outside: 18 mm {0.71"}
Specified thermal paper type NTP080-80
Interface
(compatible) 		Serial (RS232/RS485)/Parallel (IEEE1284)/USB/EPSON UB series
Receive buffer 4KB/45 bytes
Cash drawer function 2 drives
Supplied voltage + 24 VDC ± 7%
Current consumption
(at 24V) 		Mean: Approx. 1.8 A
Temperature Operating: 5 to 45°C {41 to 113°F}
Storage: –10 to 50°C {14 to 122°F}, except for paper
Humidity Operating: 10 to 90% RH
Storage: 10 to 90% RH, except for paper
Overall dimensions 114 × 125 × 194 mm {4.49 × 4.92 × 7.64"} (H × W × D)
Weight (mass) Approx. 1.8 kg {3.96 lb} (Roll paper excluded)

lps: lines per second dpi: dots per 25.4 mm (dots per inch)

*1: In the column for the South Asian model, the values in the brackets are for Thai characters, and can be selected by control commands.

Indication of the manufacturer and the importer in accordance with requirements of directive 2011/65/EU (RoHS)
Manufacturer: SEIKO EPSON CORPORATION
Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502, Japan Telephone: 81-266-52-3131 Fax: 81-266-52-8409
Importer: EPSON EUROPE B.V.
Address: Azië building, Atlas ArenA, Hoogoorddreef 5, 1101 BA Amsterdam Zuidoost, The Netherlands Telephone: 31-20-314-5000

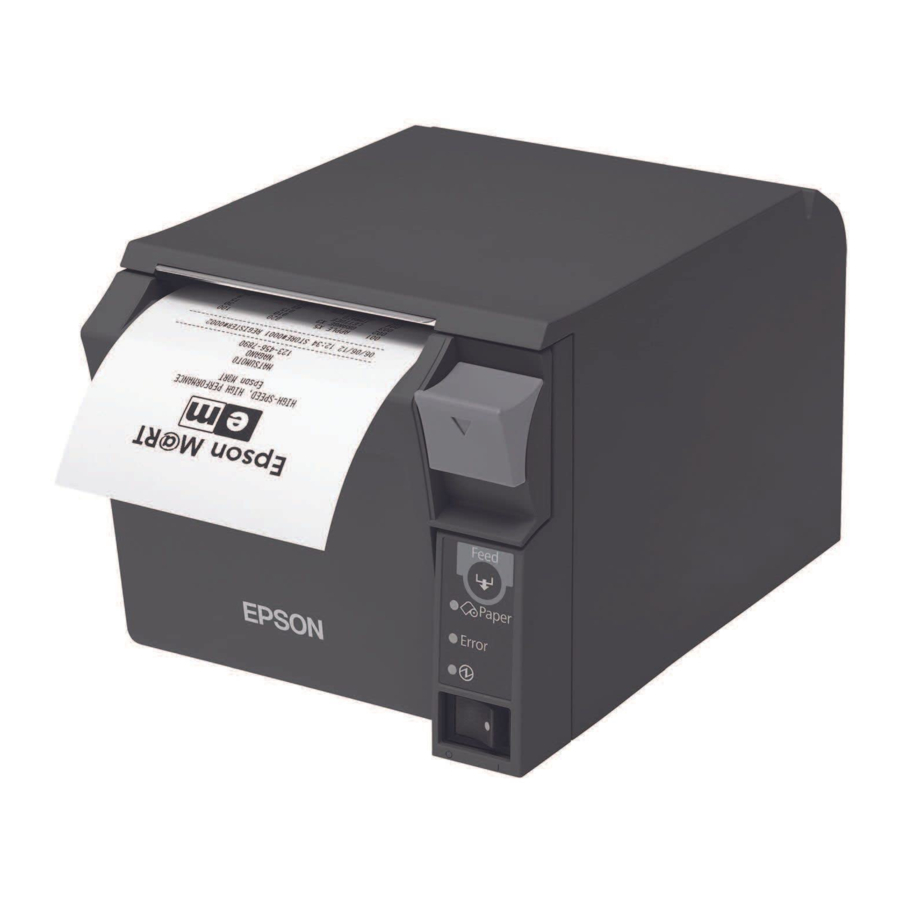

Part Names

See illustration B.
Part Names

  1. Cover open lever
  2. Printer cover
  3. Power switch
  4. Control panel

Unpacking

The following items are included with the standard specification printer. If any item is damaged, contact your dealer.

  • Printer
  • Roll Paper
  • Power switch cover
  • AC adapter *
  • User's Manual (this manual)

* May not be included with your printer.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be the following URL.
http://download.epson-biz.com/?service=pos

Control Panel

FEED button
This button feeds paper.

(Power) LED
This LED is on when the printer is on.

ERROR LED
This indicates an error.

PAPER OUT LED
On indicates a paper near end or out. Flashing indicates standby.

Important Notes on Installation

  • For a serial interface, you must use a null modem cable, also called a cross cable.
  • For a parallel interface, use a cable that meets the specifications for an IEEE 1284-compliant cable.
  • For a USB interface, install the printer driver before connecting the printer.

Installing the Printer

You can install this printer only horizontally.

Fix the printer so that it does not move around when you open the printer cover and cut roll paper. A tape for fixing the printer is available as an option.

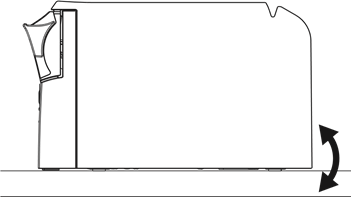

As shown in the illustration C, install the printer with a maximum tilt of 3°.

Installing the printer with a tilt of more than 3° may cause the following problems.

  • Roll paper near end cannot be detected.
  • The printer cover will not close after installing roll paper.
  • Roll paper cannot be taken out.

Using the Power Switch Cover


If an accident occurs with the power switch cover attached, unplug the AC cable immediately. Continued use may cause fire or shock.

The enclosed power switch cover ensures that the power switch is not pressed accidentally. To use this cover, install it as shown in illustration D.

Installing Roll Paper

  1. Press the lever indicated by the arrow in illustration E to open the printer cover.
  2. Remove the used roll paper core.

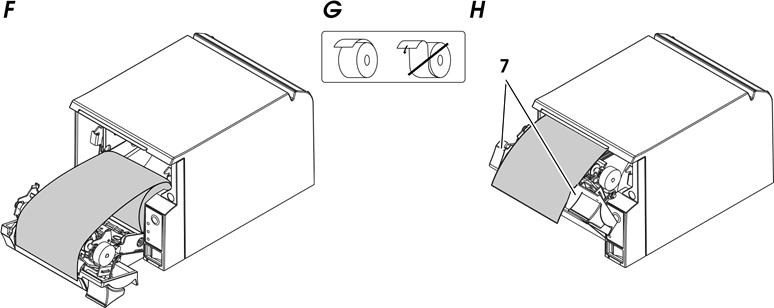

  3. Install the roll paper as shown in illustration F. The correct direction of the paper is shown in illustration G.
    Installing Roll Paper
    7-Paper guides
  4. Pull out some roll paper as shown in illustration H so that the paper is set between the paper guides.
  5. Close the printer as shown in illustration I, and make sure that the roll paper is properly installed between the paper guides.
  6. Tear off the roll paper as shown in illustration J.

Troubleshooting

No lights on the control panel

Check if the power supply cable is correctly connected to the printer and the power outlet.

ERROR LED on (not flashing) with no printing

If PAPER OUT is on, the roll paper is not installed or is used up.

If PAPER OUT is off, the printer cover is not closed properly.

ERROR LED flashing with no printing (and no paper jam)

Printing stops if the thermal head overheats and resumes automatically when it cools.

If overheating is not the cause, turn the printer off, and after 10 seconds, back on.

Removing Jammed Paper

cautionburn hazardCAUTION:
Do not touch the thermal head because it can be very hot after printing.

  1. Turn the printer off and press the cover open lever.
  2. Remove jammed paper, reinstall the roll, and close the printer cover.

Cleaning the Thermal Head

cautionburn hazardCAUTION:
After printing, the thermal head can be very hot. Do not touch it and to let it cool before you clean it. Do not damage the thermal head by touching it with your fingers or any hard object.

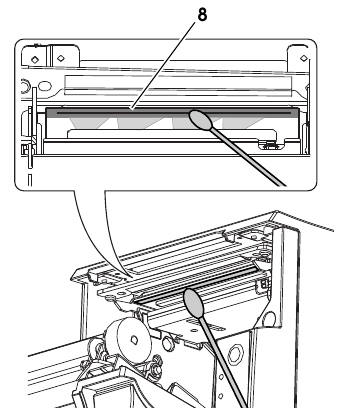

Turn off the printer and open the printer cover. As shown in illustration K, clean the thermal elements of the thermal head with a cotton swab moistened with an alcohol solvent (ethanol, or IPA).
Cleaning the Thermal Head

  1. Thermal head

Epson recommends cleaning the thermal head periodically (generally every 3 months) to maintain receipt print quality.

Setting the DIP Switches


Be sure to turn off the printer before removing the cover of the DIP switches. Removing it while the printer is turned on may cause problems such as an electric short, which leads to a malfunction of the printer.

  1. Make sure the printer is turned off.
  2. Turn over the printer.

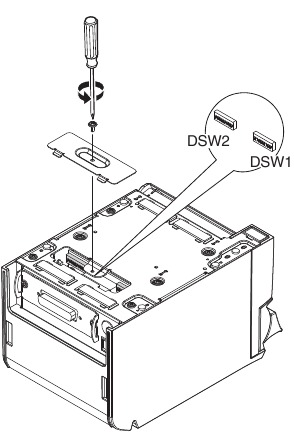

  3. As shown in illustration L, remove the cover of the DIP switches on the printer bottom by removing a screw.
  4. Set the DIP switches using a fine-tipped tool.
  5. Replace the cover of the DIP switches, and fix it by installing the screw.

The new setting becomes effective after the printer is turned on.

Important Safety Information

This section presents important information intended to ensure safe and effective use of this product. Read this section carefully and store it in an accessible location.

Key to Symbols
The symbols in this manual are identified by their level of importance, as defined below. Read the following carefully before handling the product.


Warnings must be observed carefully to avoid serious bodily injury.


Cautions must be observed to avoid minor injury to yourself, damage to your equipment, or loss of data.

Safety Precautions
This section describes the warnings and cautions intended to ensure safe and effective use of the TM-T70. Other warnings and cautions on handling of this product for its safe and effective use are described in other sections of the manual.


If the TM-T70 produces smoke, a strange odor, or unusual noise, shut down the TM-T70, unplug the power cable immediately, and then contact your dealer or an Epson service center for advice. Continued use may lead to fire or electric shock.

Never attempt to repair this product yourself. Improper repair work can be dangerous.

Never disassemble or modify this product. Tampering with this product may result in injury or fire.

Be sure to use the specified power source. Connection to an improper power source may cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by foreign objects may lead to fire.

If water or other liquid spills into this equipment, shut down the TM-T70, unplug the power cable of the TM-T70 immediately, and then contact your dealer or an Epson service center for advice. Continued use may lead to fire or shock.

If you open the DIP switch cover, be sure to close the cover and tighten the screw after adjusting the DIP switch. Using this product with the cover open may cause fire or electric shock.

Do not use aerosol sprayers containing flammable gas inside or around this product. Doing so may cause fire.


Do not connect cables in ways other than those mentioned in this manual. Different connections may cause equipment damage or fire.

Be sure to set this equipment on a firm, stable, horizontal surface. The product may break or cause injury if it falls.

Do not use this product in locations subject to high humidity or dust levels.

Excessive humidity and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean on this product. Equipment may fall or collapse, causing breakage and possible injury.

To ensure safety, unplug this product before leaving it unused for an extended period.

Before moving this product, be sure to unplug it and all the cables connected to it.

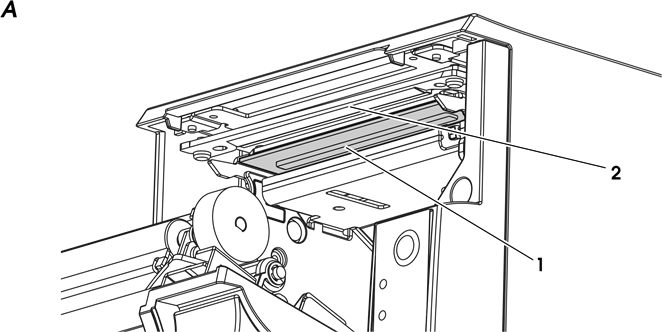

Caution Labels
cautionburn hazardCAUTION:
The thermal head can be very hot during printing and immediately after printing. Touching it may cause burns. Be sure to do cleaning and other work after the thermal head cools down. Also, be careful of the autocutter blade near the thermal head. See illustration A for the location of the thermal head and the autocutter blade.

  1. Thermal head
  2. Autocutter blade

Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automotive etc.; disaster prevention devices; various safety devices etc; or functional/precision devices etc, you should use this product only after giving consideration to including fail-safes and redundancies into your design to maintain safety and total system reliability. Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or medical equipment related to direct medical care etc, please make your own judgment on this product's suitability after a full evaluation.

Purpose of This Manual
This manual provides information to operators of the TM-T70 printer to describe basic operations to enable safe and correct use of the printer.
