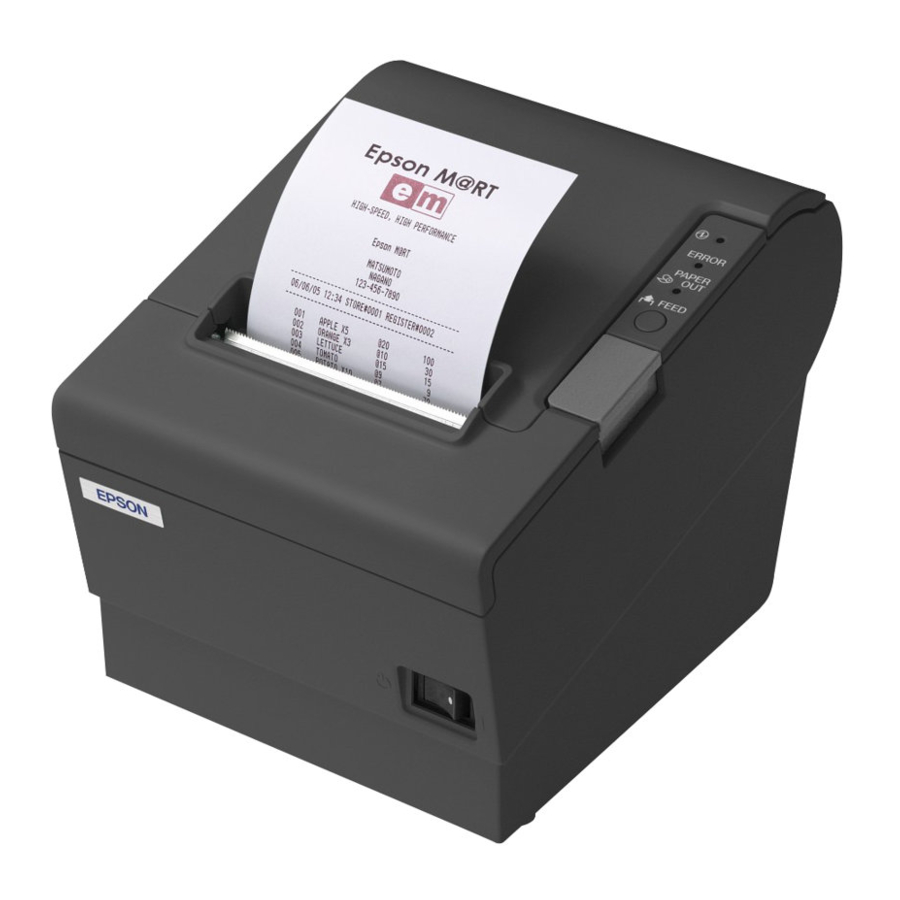

Epson ReStick TM-T88IV Manual

Also See for ReStick TM-T88IV:

Advertisement

Table of Contents
Contents
Epson ReStick TM-T88IV Manual

DIP Switch Tables

DIP switch 1 (Serial Interface)

SW Function ON OFF
1-1 Data receive error Ignored Prints "?"
1-2 Receive buffer capacity 45 bytes 4KB
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Data word length 7 bits 8 bits
1-5 Parity check Enabled Disabled
1-6 Parity selection Even Odd
1-7 1-8 Transmission speed (See table A.)

Table A

Transmission speed (bps)-bits per second 1-7 1-8
Adjustable by control commands* ON ON
4800 OFF ON
9600 ON OFF
19200 OFF OFF

* Only when DIP Switches 1-7 and 1-8 are on, the transmission speed can be selected from one of seven speeds: 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps by conrol commands. The default is 38400.

DIP switch 1 (Parallel/USB Interface)

SW Function ON OFF
1-1 Auto line feed Always enabled Always disabled
1-2 Receive buffer capacity 45 bytes 4KB
1-3*1 Select paper sensors to output paper-end signals (default value of a command) from parallel I/F. Disabled Roll Paper end sensor enabled, Roll Paper nearend sensor enabled
1-4*1 Error signal output from parallel I/F Disabled Enabled
1-5~ 1-7 Undefined
1-8*2 Power saving function for USB Disabled Enabled

*1: For USB I/F, DIP Switches 1-3 and 1-4 are Undefined.
*2: For Parallel I/F, DIP Switch 1-8 is Undefined.

DIP switch 2 (Serial/Parallel/USB Interface)

SW Function ON OFF
2-1 Handshaking (BUSY condition) Receive buffer full Offline or Receive buffer full
2-2 Do not change settings Fixed to OFF
2-3 2-4 Print density/ Liner-free label See Table B
2-5 Release condition of receive buffer BUSY (If receive buffer capacity set to 4 KB.) Releases BUSY when remaining receive buffer capacity reaches 138 bytes. Releases BUSY when remaining receive buffer capacity reaches 256 bytes.
2-6 Do not change settings. Fixed to OFF

DIP switch 2-7, 2-8 (Serial Interface)

SW Function ON OFF
2-7 I/F pin 6 reset Enabled Disabled
2-8 I/F pin 25 reset Enabled Disabled

DIP switch 2-7, 2-8 (Parallel/USB Interface)

SW Function ON OFF
2-7 Do not change Fixed to OFF
2-8 Do not change Fixed to ON

Table B

Paper Print density 2-3 2-4
Recommended liner-free label Fixed ON ON
Thermal roll paper Normal OFF OFF
Medium ON OFF
Dark OFF ON

Specifications

58mm paper width model 80mm paper width model
Printing method Thermal line printing
Dot density 203 dpi × 203 dpi [dots per 25.4 mm {1"}]
Printing direction Unidirectional with friction feed
Printing width 52.5 mm {2.07"}, 420 dot positions 72 mm {2.83"}, 576 dot positions
Number of characters Alphanumeric characters: 95; International characters: 48
Extended graphics: 128 × 11 pages (including user-defined page)
Printing speed*1 Recommended liner-free label: 150 mm/s {5.9"/s} (default)
Thermal roll paper: 177 mm/s {7.0"/s} max.
Ladder bar code and 2D code: 88 mm/s {3.46"/s}
The above speed values are approximate.
Paper feed speed Approx. 150 mm/s {approx. 5.9"/s} continuous paper feed
Line spacing (default) 3.75 mm {1/6.7"}
Roll paper (single-ply) Width 57.5 mm ± 0.5 mm {2.26" ± 0.02"} 79.5 mm ± 0.5 mm {3.13" ± 0.02"}
Diameter Maximum outside diameter: 83 mm {3.27"}
Spool Roll Paper spool diameter:
Inside: 12 mm {0.47"};
Outside: 18 mm {0.71"}
Specified thermal roll paper type NTP058-80 NTP080-80
Recommended linerfree label type MS214150 MS318150
Interface
(compatible) 		Serial (RS232/RS485)/Parallel (IEEE1284)/Ethernet (10/100Base-T)/ USB (Full speed)
Receive buffer 4KB/45 bytes
Cash drawer function 2 drives
Supply voltage*2 DC + 24 V ± 7%
Temperature Operating: 5 to 45°C {41 to 113°F}
Storage: –10 to 50°C {14 to 122°F}, except for paper
Humidity Operating: Recommended liner-free label: 10 to 80% RH Thermal roll paper: 10 to 90% RH
Storage: 10 to 90% RH, except for paper
Overall dimensions 148 × 145 × 195 mm {5.83 × 5.71 × 7.68"} (H × W × D)
Weight (mass) Approx. 1.8 kg {3.96 lb}

dpi: dots per 25.4 mm (dots per inch)
*1: Set DIP Switches 2-3 and 2-4 for each paper type. (See Table B on iv.)
*2: Be sure to use a safety-standards-applied power source that meets the following specifications. Rated output: 24 V/2.0 A or more, Maximum output: 240 VA or less

Unpacking

The following items are included with the standard specification printer. If any item is damaged, contact your dealer.

  • Printer
  • Power switch cover
  • AC adapter
  • Roll Paper
  • Connector cover

Installing the Printer Horizontally or Vertically

You can install the printer horizontally on a flat surface (with the paper exit on top) or vertically (with the paper exit at the front) by hanging it on a wall, using the optional WH-10 hanging bracket set.

When hanging the printer on the wall with the hanging bracket set, be sure to attach a connector cover to the printer.

Control Panel

FEED button
This button feeds paper.
(Power) LED
This LED is on when the printer is on.
ERROR LED
This indicates an error.
PAPER OUT LED
On indicates a paper out, and when you select to use thermal roll paper by DIP Switches, also indicates a paper near end.
Flashing indicates standby.

Using the Power Switch Cover


If an accident occurs with the power switch cover attached, unplug the power cord immediately. Continued use may cause fire or shock.
The enclosed power switch cover ensures that the power switch is not pressed accidentally. To use this cover, install it as shown in illustration B.
Using the Power Switch Cover

Attaching and Removing the Connector Cover

These instructions apply if a connector cover is packed with your printer to protect your cables. To attach it, follow the steps below:

  1. First, connect all the cables. The connector cover has three possible cable exits: on the right, left, and back.
  2. Position the two hooks on the connector cover so that they hook the printer case, as shown in illustration C.
    Attaching the Connector Cover - Step 1
  3. Push the connector cover down to click onto the printer case.

To remove the connector cover, turn the printer over, and push the connector cover down while pushing both sides of the connector cover inward to detach the hooks from the printer case.
Attaching the Connector Cover - Step 2

Installing Roll Paper

  1. Press the button to open the cover.
    Installing Roll Paper - Step 1 - Press the button
  2. Remove the used roll paper core, and insert the roll paper.
    Installing Roll Paper - Step 2
    The correct direction of the paper is shown in illustration G.
  3. Pull out some paper, and close the cover, as shown in illustration H. The paper will be automatically fed and cut.
    Installing Roll Paper - Step 3
  • When using the recommended liner-free label, the printer power must always be on to maintain a good print quality
  • Before using thermal roll paper after using the recommended liner-free label, clean up any glue from the recommended liner-free label that is on the thermal head, paper holder, or paper path. This glue may cause paper jams.

Troubleshooting

No lights on the control panel
Check the power supply cable connections and the power outlet.

ERROR LED on (not flashing) with no printing
If PAPER OUT is on, the roll paper is not installed or is near the end.
If PAPER OUT is off, the printer cover is not closed properly.

ERROR LED flashing with no printing (and no paper jam)
Printing stops if the head overheats and resumes automatically when it cools.
If overheating is not the cause, turn the printer off, and after 10 seconds, back on.

Removing Jammed Paper


burn hazard Do not touch the thermal head because it can be very hot after printing.

  1. Turn the printer off and press the cover open button.
  2. Remove jammed paper, reinstall the roll, and close the cover.
  3. If paper is caught in the cutter and you cannot open the printer cover, open the cutter cover as shown in illustration I.
    Removing Jammed Paper - Step 1
  4. Turn the knob until you see a triangle in the opening. This returns the cutter blade to the normal position. There is a label near the cutter to assist you.
    Removing Jammed Paper - Step 2 - Turn the knob
  5. Close the cutter cover.
  6. Open the printer cover and remove the jammed paper.

Cleaning the Thermal Head

If you use thermal paper, follow the steps below to clean the thermal head.

burn hazard After printing, the thermal head can be very hot. Be careful not to touch it and to let it cool before you clean it. Do not damage the thermal head by touching it with your fingers or any hard object.
Turn off the printer, open the printer cover, and clean the thermal elements of the thermal head with a cotton swab moistened with an alcohol solvent (ethanol, or IPA).
Epson recommends cleaning the thermal head periodically (generally every 3 months) to maintain receipt print quality.

Safety Precautions

This section presents important information intended to ensure safe and effective use of this product. Please read this section carefully and store it in an accessible location.

Shut down your equipment immediately if it produces smoke, a strange odor, or unusual noise. Continued use may lead to fire. Immediately unplug the equipment and contact your dealer or a Seiko Epson service center for advice.
Never attempt to repair this product yourself. Improper repair work can be dangerous.
Never disassemble or modify this product. Tampering with this product may result in injury or fire.
Be sure to use the specified power source. Connection to an improper power source may cause fire.
Do not allow foreign matter to fall into the equipment. Penetration by foreign objects may lead to fire.
If water or other liquid spills into this equipment, unplug the power cord immediately, and then contact your dealer or a Seiko Epson service center for advice. Continued usage may lead to fire.
If you open the DIP switch cover, be sure to close the cover and tighten the screw after adjusting the DIP switch. Using this product with the cover open may cause fire or electric shock.
Do not use aerosol sprayers containing flammable gas inside or around this product. Doing so may cause fire.

Do not connect cables in ways other than those mentioned in this manual. Different connections may cause equipment damage and burning.
Be sure to set this equipment on a firm, stable, horizontal surface. The product may break or cause injury if it falls.
Do not use in locations subject to high humidity or dust levels. Excessive humidity and dust may cause equipment damage or fire.
Do not place heavy objects on top of this product. Never stand or lean on this product. Equipment may fall or collapse, causing breakage and possible injury. Take care not to injure your fingers on the manual cutter.

  • When you remove printed paper
  • When you perform other operations such as loading/replacing roll paper

To ensure safety, unplug this product before leaving it unused for an extended period.

Caution Labels
burn hazard The thermal head is hot.

Touching the manual cutter may cause injury.

Restriction of Use
When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automotive etc.; disaster prevention devices; various safety devices etc; or functional/precision devices etc, you should use this product only after giving consideration to including fail-safes and redundancies into your design to maintain safety and total system reliability. Because this product was not intended for use in applications requiring extremely high reliability/safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or medical equipment related to direct medical care etc, please make your own judgment on this product's suitability after a full evaluation.

Precautions When Installing the Power Supply Box

A description of EMI standards is on the bottom of the printer. When the optional power supply box (OT-BX88) is installed, it is hard to check it. In such case, uninstall the power supply box if necessary.

Important Installation Notes

  • For a serial interface, use a null modem cable.
  • For a parallel interface, use an IEEE 1284 cable.
  • For a USB interface, install the driver before connecting the printer.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be one of the following URLs.
For customers in North America, go to the following web site: http://www.epsonexpert.com/ and follow the on-screen instructions.
For customers in other countries, go to the following web site: http://www.epson-pos.com/
