Epson TM-m30III Series, TM-m30III-H Manual

Before using this product, make sure you read these instructions and the safety instructions in the Notices sheet.

Note: The illustrations show the TM-m30III-H, but the steps are the same for all models, unless otherwise specified.

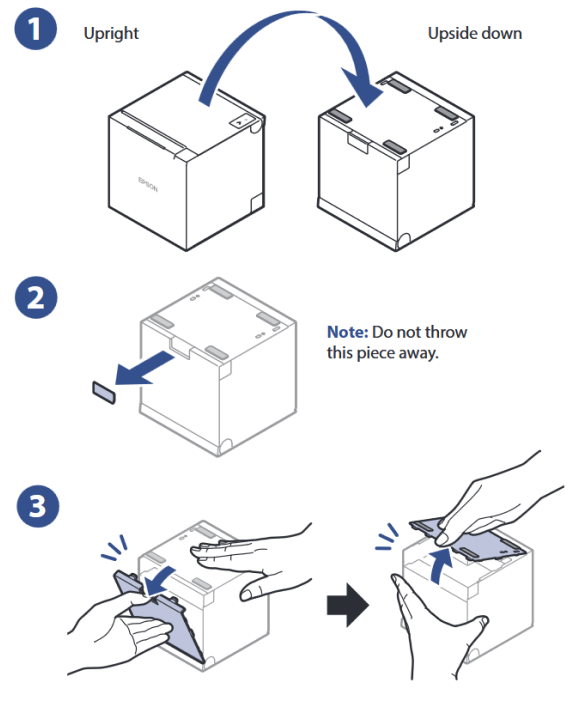

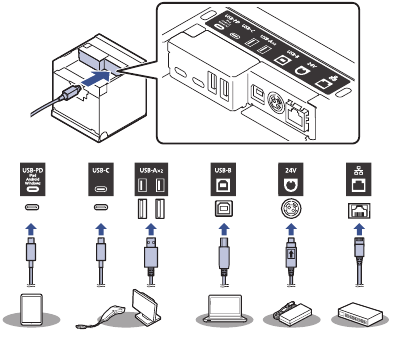

Connecting Cables

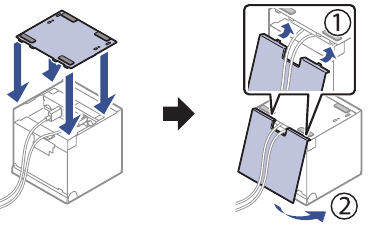

Reattaching the Panels

Top Feed

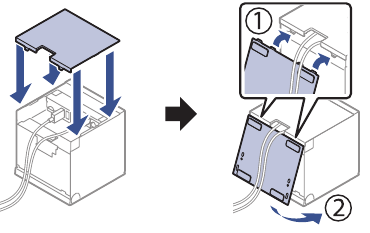

Front Feed

Loading Paper

You can print on 80 mm or 58 mm wide paper. If you load 58 mm wide paper, install the roll paper guides as shown below.

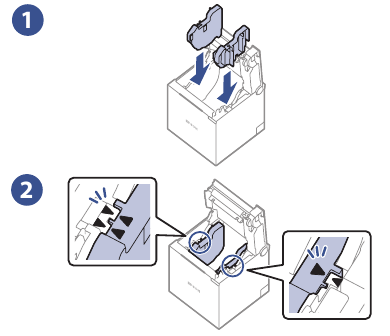

Roll Paper Guides

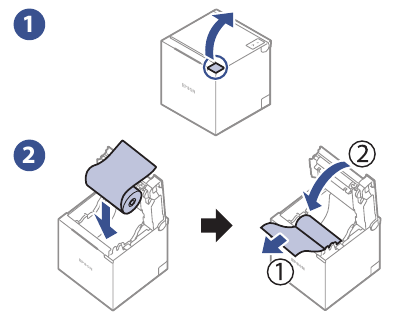

Top Feed

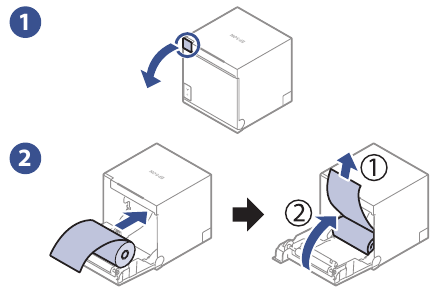

Front Feed

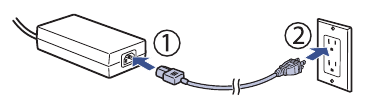

Plugging the Printer In

Connecting to a Wi-Fi® Network

Note:

• Wi-Fi connectivity not available for all models.
• To view a Wi-Fi setup video, scan the QR code.


1. Get SimpleAP Start printout: Turn the printer on. A SimpleAP Start page prints.
   Note: If a USB or Ethernet cable is connected to the printer, the SimpleAP Start page will not automatically print. See the online manuals for additional Wi-Fi setup options.

2. Scan QR code: Using the camera app on your smartphone or tablet, scan the QR code on the SimpleAP Start page. If you see a request to join the network shown in the "SSID" section of the SimpleAP Start page, accept the request.

3. If the web page below appears, skip to step 5.

4. A WebConfig Start page prints. Scan the QR code on the page.
   Note: If the page does not print, connect your smartphone or tablet to the Wi-Fi network shown in the "SSID" section of the SimpleAP Start page.

5. Select Wi-Fi.

6. Enter the printer's serial number as the password, then select OK.

   Note:

• The last 10 digits in the "SSID" section of the SimpleAP Start page show the printer's serial number.

• The password is case-sensitive. Make sure you enter the serial number exactly as it appears.

7. Select Wi-Fi network: Select the network you want to connect the printer to, then select OK.

8. Enter the network's password, then select OK.

   A network status page prints and your printer is now connected to the network.
   Note: You can now close the web page on your device.


Making a Bluetooth® Connection

Note:

• Bluetooth connectivity not available for all models.
• To view a Bluetooth setup video, scan the QR code.

1. Turn the printer on.
   Note: If a SimpleAP Start page prints, discard it.

2. When the printer's lights stop flashing, open the roll paper cover.

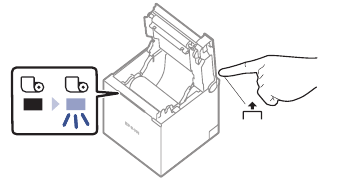

3. Press and hold the feed button until the paper light flashes.

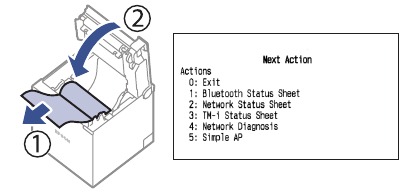

4. Close the roll paper cover. A Next Action page prints.

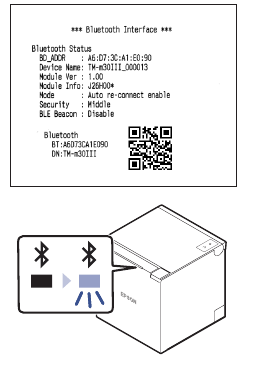

5. Press and release the feed button once, then press and hold the feed button. A Bluetooth Interface page prints and the printer's Bluetooth light flashes to indicate that the printer is in pairing mode.

6. Pair your smartphone or tablet with the printer.
   Note: The printer's Bluetooth device name is shown in the "Device Name" section of the Bluetooth Interface page.
