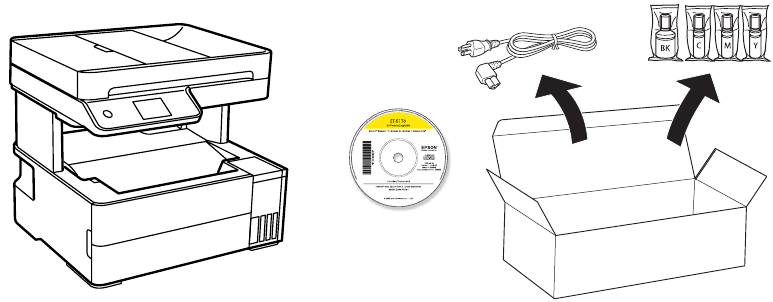

Unpack


Make sure you keep the box shown above for use when transporting the printer.


Do not lift the product by gripping the scanner unit. Make sure you lift using the handholds on the bottom of the product.

Note:

  • Do not open the ink bottles until you are ready to fill the ink tanks.
    The ink bottles are vacuum packed to maintain reliability.
  • Some products may not include a CD.
  1. Lift the printer cover until it clicks into place.

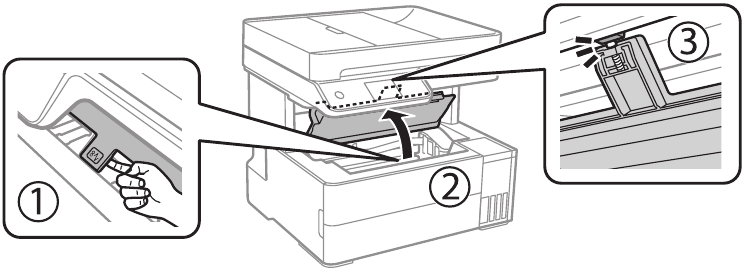

    Unpacking the product - Step 1
  2. Remove all protective materials from the product.

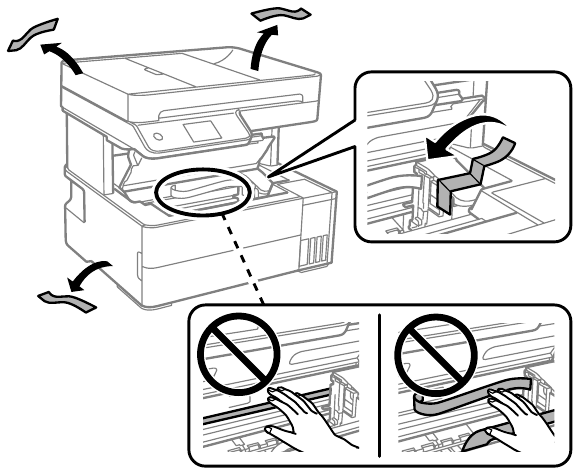

    Unpacking the product - Step 2


Do not touch the flat white cable, translucent film, or ink tubes.

  1. Close the printer cover.

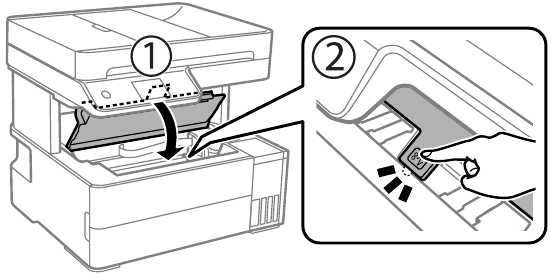

    Unpacking the product - Step 3

Note: Do not connect the power cord yet.

Fill ink tanks


Keep the ink bottles out of the reach of children and do not drink the ink.


This product requires careful handling of ink. If ink spills, wipe it off immediately with a damp towel to avoid permanent stains.
If ink gets on your clothes or belongings, it may not come off.

Note:

  • Epson cannot guarantee the quality or reliability of third-party ink.
  • Use the ink bottles included with the printer to set up the product. Part of the ink will be used to charge the print head. These bottles may print fewer pages compared with replacement ink bottles.
  • The included ink bottles are designed for reliable printer setup and cannot be resold.

Epson recommends the use of Genuine Epson 542 pigment inks. The use of any other inks may cause damage not covered by the warranty, particularly if they are not pigment. Epson cannot guarantee that non-Epson 542 inks are pigment, even if labeled as compatible.

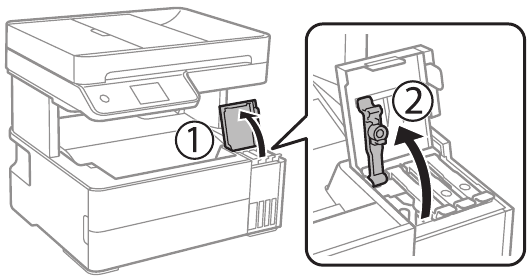

  1. Open the ink tank cover, then open the cap for the black ink tank.
    Filling the ink tanks - Step 1
    Note: Refer to the color-coded sticker on the ink tank unit to identify the color of each tank.
  2. Unpack the black (BK) ink bottle. Hold the ink bottle upright and slowly turn the bottle cap to remove it.


Do not shake or squeeze the ink bottle. Do not touch the top of the ink bottle after its cap is removed.

  1. Insert the ink bottle into the filling port.
    Note: Do not force the bottle into position; each bottle is keyed for each color.
  2. Wait for the ink to fill the tank. Do not squeeze the bottle or allow it to contact any other surface.

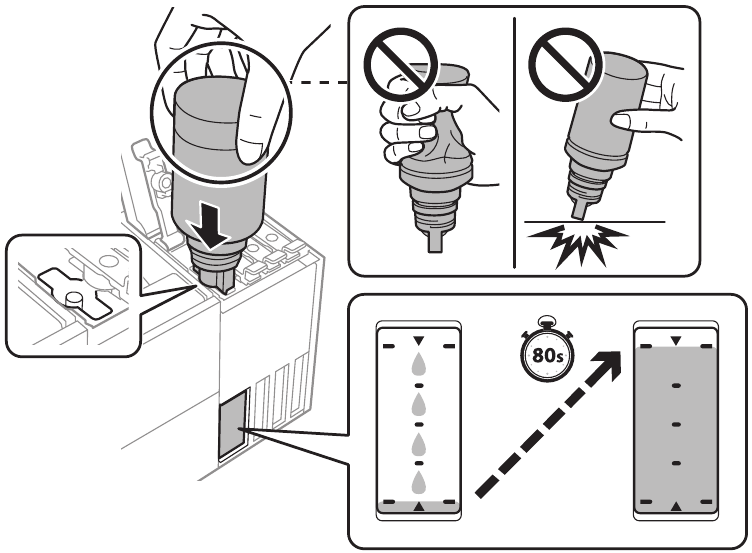

    Filling the ink tanks - Step 2
    Note: Ink flows into the tank and stops automatically when the ink is filled to the upper line. If ink does not flow from the bottle, lift and reinsert the bottle.
  3. When the ink tank is full, remove the ink bottle and securely close it with the cap. If any ink remains in the bottle, store it for later use.

    Note: Do not leave the ink bottle inserted; otherwise the bottle may be damaged or ink may leak.
  4. Close the black ink tank cap.
    Filling the ink tanks - Step 3

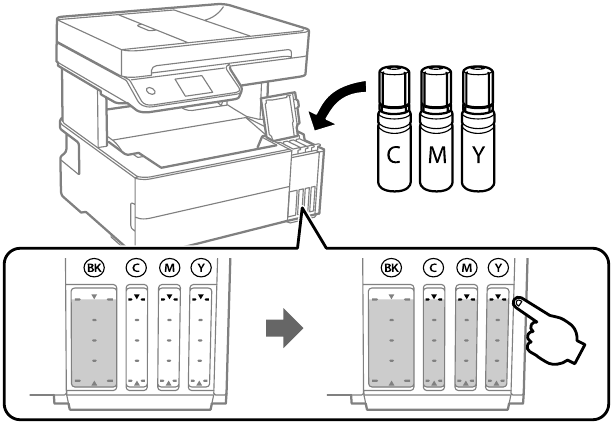

  5. Repeat the previous steps for the other colors.
    Filling the ink tanks - Step 4
  6. Close the ink tank cover.
  7. Connect the power cord to the back of the product and to an electrical outlet.

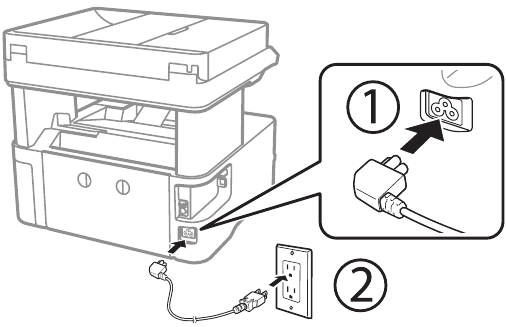

    Filling the ink tanks - Step 5 - Connect power


Do not connect to your computer yet.

  1. Press the power button to turn on the product.
    Filling the ink tanks - Step 6 - Turn on the unit
    Note: If an error message appears, turn off the product and check that no protective material has been left inside the product.
  2. ET-5150: Select your language.
    ET-5170/ET-5180: Select your language, country, date, and time settings.
    Note: You can change these settings later using the product's control panel.
    Follow steps 12 and 13 to continue ink charging.
  3. When the message to see the Start Here sheet appears on the LCD screen, press and hold the help button for 5 seconds.
  4. When the ink confirmation message appears on the LCD screen, select Done to start charging the ink. Ink charging takes approximately 11 minutes. A message appears when ink charging is complete.


Do not unplug or turn off the product, lift the printer cover, or load paper while the product is charging or you'll waste ink.

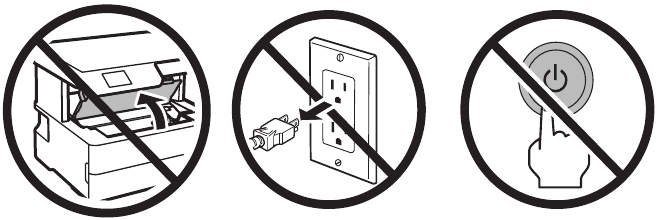

Charging precaution

Note: After some ink is used for charging, the rest is available for printing.

  1. Follow the on-screen instructions to adjust the print quality.
    Note: You need to load paper before you can adjust the print quality. See "Load paper" for details.

Load paper

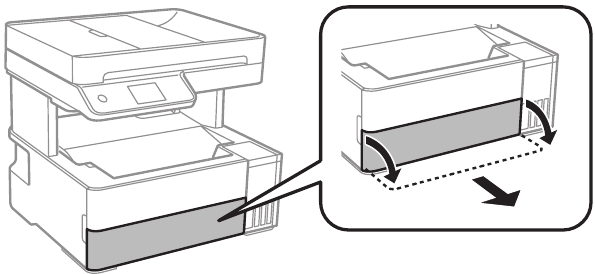

  1. Make sure the product is done charging the ink. Open the paper cassette cover and pull out the paper cassette until it stops.
    Loading the paper - Step 1
  2. Slide the side edge guides all the way out.

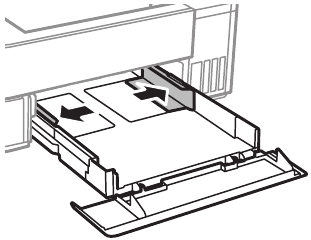

    Loading the paper - Step 2

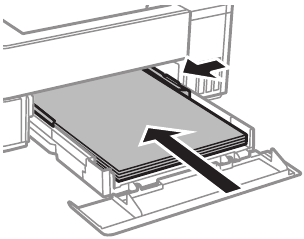

  3. Insert paper with the printable side down and slide the edge guides against the paper, but not too tightly.
    Loading the paper - Step 3 - Insert paper

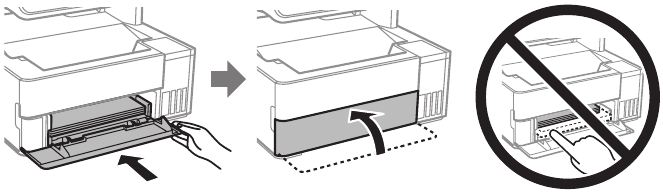

  4. Keep the cassette flat as you insert it all the way and then close the paper cassette cover.
    Loading the paper - Step 4
    Note: Make sure the paper is loaded against the front of the cassette. Do not push the paper in further after inserting the cassette; it may cause a paper feed problem.
  5. Select the paper settings on the product's control panel.

Connect the fax line

(ET-5170/ET-5180)

  1. Connect a phone cord to a telephone wall jack and to the LINE port on your product.
  2. Select Proceed on the LCD screen to set up the fax, or select Set Up Later to set it up later.

Install software

Note:

  1. Make sure the product is NOT CONNECTED to your computer.
    Windows: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
  2. Insert the product CD (Windows only) or download and run your product's software package. For the latest software, visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and search for your product.
  3. Follow the instructions on the computer screen to run the setup program.
  4. When you see the Select Your Connection screen, select one of the following:
  • Wireless connection
    In most cases, the software installer automatically attempts to set up your wireless connection. If setup is unsuccessful, you may need to enter your network name (SSID) and password.
  • Direct USB connection
    Make sure you have a USB cable (not included).
  • Wired network connection
    Make sure you have an Ethernet cable (not included).

PCL or PostScript driver (ET-5180)
Download the software. For the latest software, visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and search for your product.

Mobile and voice-activated printing

  • Print directly from your Android (v4.4 or later) device*. Simply connect your printer and device to the same network and tap the menu icon to select the print option.
  • Turn your mobile device into an intuitive, easy-to-use printing and scanning control center with Epson Smart Panel. Download the app from your mobile device's app store.

www.apple.com

play.google.com

  • Print from wherever you are, next to your printer or remotely, with Epson Connect. Learn more at www.epson.com/connect (U.S.) or www.epson.ca/connect (Canada).
  • Use voice-activated assistants to print a variety of creative and everyday items from your Epson product. Simply add your product to an Epson Connect account, then link the account to a voice-activated assistant. See www.epson.com/voice (U.S.) or www.epson.ca/voice (Canada) for more information.

*May require the Epson Print Enabler or Mopria Print Service app from Google Play.

Any problems?

Network setup was unsuccessful

  • Make sure you select the right network name (SSID).
  • Restart your router (turn it off and then on), then try to connect to it again.
  • If you see a firewall alert message, click Unblock or Allow to let setup continue.
  • If your network has security enabled, make sure you enter your network password (WEP key or WPA passphrase) correctly. Be sure to enter your password in the correct case.
  • Print a network connection report to identify network problems and solutions.

There are lines or incorrect colors in my printouts

Run a nozzle check to see if there are any gaps in the printout. Then clean the print head, if necessary.

The product's screen is dark

Make sure your product is turned on and touch the LCD screen to wake it from sleep mode.

Setup is unable to find my product after connecting it with a USB cable.
Make sure your product is on and securely connected.

Any questions

Technical support

Visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and search for your product to download drivers, view videos and manuals, get FAQs, or contact Epson.

Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 am to 8 pm, Pacific Time, Monday through Friday, and 7 am to 4 pm, Pacific Time, Saturday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Recycling

Epson offers a recycling program for end-of-life hardware and ink bottles. Please go to www.epson.com/recycle (U.S.) or www.epson.ca/recycle (Canada) for information on how to return your products for proper disposal.

Need paper and ink

Ensure brilliant results with Epson specialty and plain papers, engineered specifically for Epson printers. Find Epson papers and Epson Genuine Ink at www.epson.com (U.S. sales) or www.epson.ca (Canadian sales) and at Epson authorized resellers. Call 800-GO-EPSON (800-463-7766).

ET-5150/ET-5170/ET-5180 replacement inks
Color Part number
Black T542120-S
Cyan T542220-S
Magenta T542320-S
Yellow T542420-S

Important Safety Instructions

burn hazardshock hazard
hen using telephone equipment, you should always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury, including the following:

  • Do not use the Epson product near water.
  • Always keep this guide handy.
  • shock hazard Avoid using a telephone during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Do not use a telephone to report a gas leak in the vicinity of the leak.


To reduce the risk of fire, use only a No. 26 AWG or larger telecommunication line cord.

The illustrations show the ET-5170, but the steps are the same for all models, unless otherwise specified.

EPSON and Epson Smart Panel are registered trademarks, EPSON Exceed Your Vision is a registered logomark, and Epson Connect is a trademark of Seiko Epson Corporation.
Designed for Excellence is a trademark of Epson America, Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac is a trademark of Apple Inc., registered in the U.S. and other countries.
Android, Chromebook, and Google Play are trademarks of Google LLC.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.

© 2021 Epson America, Inc.
