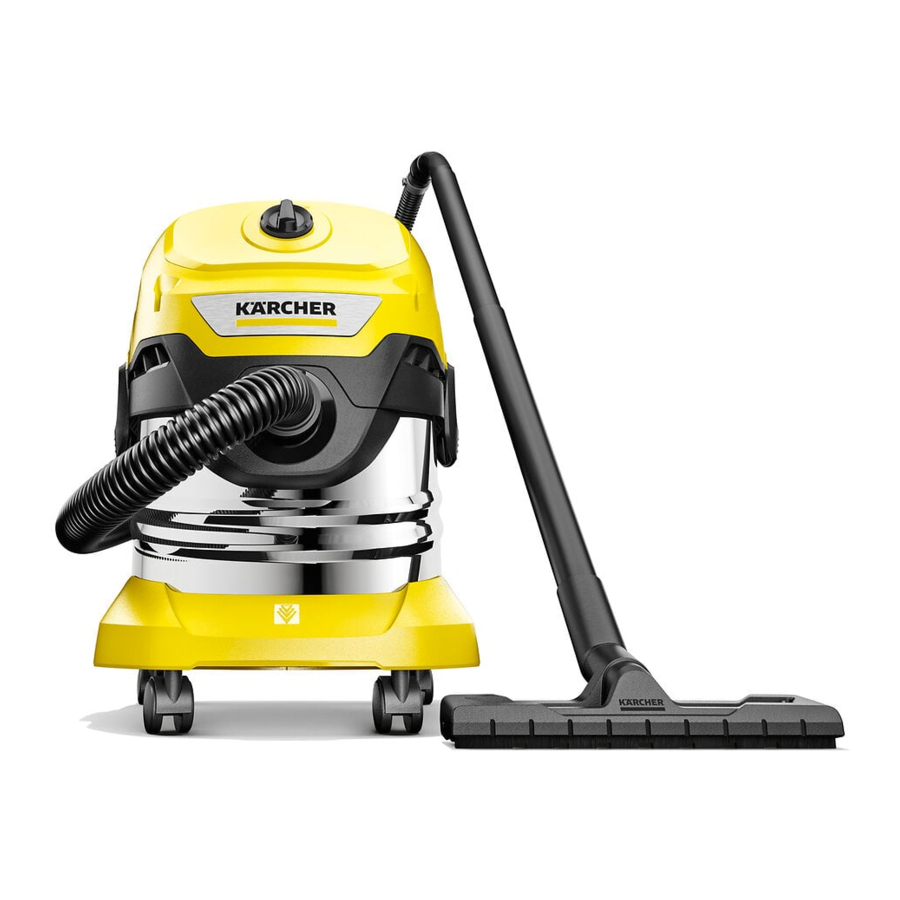

Kärcher WD 4, WD 4 S, KWD 4, KWD 4 S Manual

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Only use the device in private households. In accordance with the descriptions and the safety information in these operating instructions, the device is intended for use as a wet and dry vacuum cleaner. Cold ashes may only be vacuumed with suitable accessories.

Protect the device from rain and do not store it outdoors.

Note
The manufacturer accepts no liability for possible damage caused by improper use or incorrect operation.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

Depending on the model selected, there are differences in the equipment. The specific equipment is described on the device packaging.

Illustration A

1. Suction hose connection
2. Rotary switch
3. Carrying handle
4. Parking position handle / accessory holder
5. Filter box with unlocking button
6. Cable hook
7. Hose storage (both sides)
8. Storage area
9. Container closure
10. Rating plate with technical data (e.g. container size)
11. Mains connection with mains plug
12. Parking position for floor nozzle
13. Accessory storage
14. Steering roller
15. Filter bag
16. Flat pleated filter
17. Removable handle
18. Suction hose with connection piece
19. Suction tubes 2 x 0.5 m
20. Crevice nozzle
21. Floor nozzle

Installing the steering rollers

1. Before initial startup, remove the contents from the container and mount the steering rollers.
   Illustration B

   Illustration C

   Illustration D

   Note
   For versions with stainless steel tubes, remove the protective cover before initial startup.

Initial startup

Inserting the filter bag

1. Fully unfold the filter bag.
2. Attach the filter bag to the device connection and press it on firmly.
   Illustration E

3. Fit and lock the device head.
   Illustration F

   Note
   We recommend using a filter bag to vacuum fine dust.

Installing the hose, pipes, floor nozzle

1. Connect the suction hose.
   Illustration G

2. Connect the suction hose to the handle.
   Illustration H

   Note
   For convenient vacuuming in confined spaces, the handle can be removed, and the accessories plugged directly onto the suction hose.
   To release the handle, the grey areas on both sides of the handle must be pressed, and the handle pulled from the hose.
3. Install the floor nozzle.

• Install the insert in the floor nozzle.
• Connect the floor nozzle to the suction pipes.
  Illustration I


Starting up the device

1. Plug the mains plug into the socket.
   Illustration J

2. Set the trigger into the desired position.
   Illustration K


• Position "1 ON": The device is switched on.
• Position "0 OFF": The device is switched off.

Note
Limited for Switzerland only: The socket outlet shall only be used during operation in dry condition.

Operation

ATTENTION
Flat pleated filter missing
Device damage
Always work with the flat pleated filter inserted.

Note
Pay attention to the latest part numbers when purchasing and installing filter bags and flat pleated filters. Information on accessories and spare parts can be found at www.kaercher.com.

Dry vacuuming

ATTENTION
Vacuuming cold ashes
Device damage
Only vacuum cold ash with an ash pre-separator.

ATTENTION
Defective or wet flat pleated filter
Device damage
Before initial startup, check the flat pleated filter for damage and replace it if necessary. Only vacuum with a dry flat pleated filter.

Note
Replace the filter bag in good time, as a filter bag that is too full could be damaged. The fill degree of the filter bag depends on the amount of dirt vacuumed. The filter bag should be replaced more frequently when vacuuming fine dust, sand, etc.

Wet vacuuming

ATTENTION
Wet vacuuming with a filter bag
Device damage
Do not use a filter bag when vacuuming wet.

ATTENTION
Operation with full container
When the container is full, a float switch closes the suction opening and the device runs at a higher speed. Switch off the device immediately and empty the container.

Note
If the device falls over, the float can also close. To make the device capable of vacuuming again, set up the device, switch it off, wait 5 seconds and then switch it on again.

Interrupting operation

1. Set the trigger to "0 OFF". The device is switched off.
2. Variant 1: Place the handle of the suction hose in the intermediate parking position.
   Illustration L

   Variant 2: Attach the floor nozzle in the parking position.
   Illustration M


Ending operation

1. Set the trigger to "0 OFF". The device is switched off.
2. Pull out the mains plug.
3. Remove the device head.
   Illustration B
4. Empty the container.
   Illustration N

5. Storage possibility:
   Illustration U

   Note
   The suction hose can be wrapped around the device head and attached to the device head with the help of the hose collar.
6. Store the device in a dry and frost-proof room.

Care and service

General care instructions

• Clean the device and plastic accessory parts with a commonly available plastic cleaner.
• Rinse the container and accessories with water, as necessary, and dry them before further use.

Clean the filter box / flat pleated filter

1. Unlock the filter box and fold it out.
   Illustration O

2. Remove the filter box.
   Illustration P

3. Empty the filter box into a waste container. In the case of heavy soiling, tap the filter box against the edge of the waste container. The flat pleated filter does not have to be removed from the filter box.
   Illustration Q

   If necessary, clean the flat pleated filter separately.
4. To do this, remove the flat pleated filter from the filter box.
   Illustration R

5. Clean the flat pleated filter under running water. Do not rub or brush off.
   Illustration S

6. Allow the flat pleated filter to dry completely before reusing.
   Illustration T


Note
We recommend cleaning the flat pleated filter after each use.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Declining suction performance
Accessories, the suction hose or the suction tubes are clogged.

• Remove the clog with a suitable aid.
  The filter bag is full
• Replace the filter bag.
  The flat pleated filter is dirty.
• Clean the flat pleated filter (see Chapter Clean the filter box / flat pleated filter).
  The flat pleated filter is damaged.
• Replace the flat pleated filter.

Technical data

Note
The technical data can be found on the type plate.
