Kärcher WV 2 Plus Manual

Start up

Description of the Appliance
When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.
Illustration

1. Charger with charging cable

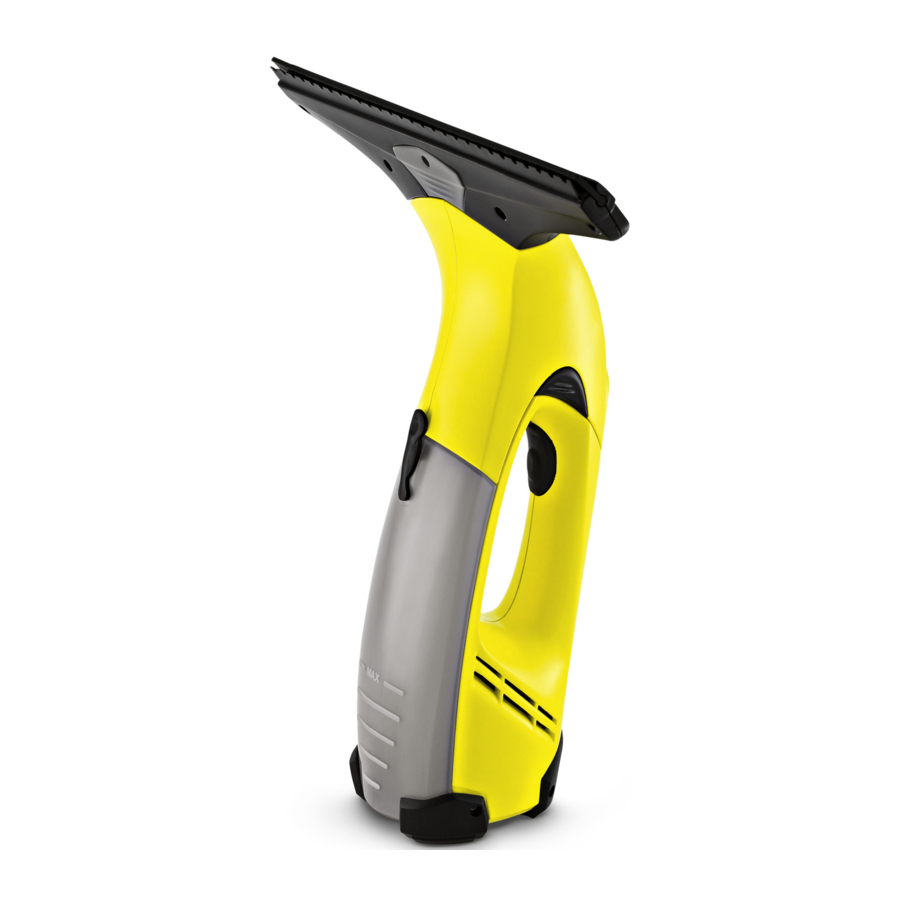

2. Basic appliance
3. Charging box
4. Charge/operations display
5. Support leg
6. Handle
7. ON/OFF switch for appliance
8. Dirt water reservoir, removable
9. Lock, dirt water reservoir
10. Suction head
11. Release, suction head
12. Attachment with removable lips
13. Release, attachment
14. Spray bottle
15. Spray lever
16. Wiping attachment
17. Fixating ring
18. Micro-fibre wiping pad
19. Window cleaner concentrate

Assemble the appliance
Illustration

Place the attachment on the suction head with the removable lips until you hear it lock in.

Attach the spray bottle and wiper attachment and fill it with detergent*
Note: Please note that after first activation of the spray head the transport look will be loosened.

Attach the wiping attachment
Illustration

Remove the spray head from the spray bottle.
Attach the wiper attachment to the spray head.
Secure the wiper attachment and the spray head with the fixating ring.
Illustration

Attach the wiper pad to the wiper attachment and secure with Velcro.

Fill the spray bottle
Illustration


Fill the included concentrate (1 x 20 ml) into the spray bottle and fill the bottle slowly with clear water (makes 250 ml of detergent solution).
Close the bottle.

Charge the battery
Illustration

Insert the charger delivered with the appliance into a proper socket.
Insert the charging cable plug to the back of the appliance.
Note: During the charging process, the charge/operating display blinks. Once the battery is fully charged, it will be permanently illuminated.

Recharge the battery after finishing your work.

Start working
Cleaning with spray bottle and wiper attachment
Illustration


Press the spray lever on the bottle to apply the detergent and spray the surface evenly; after that, loosen the dirt using the wiping pad.
Note: Rinse pad under running water if needed!

Illustration

Switch the appliance on, the charge/operations display will illuminate.
Pull the appliance from the top to the bottom to vacuum up the detergent.
Note: Hard to reach areas can be vacuumed vertically or horizontally (limited areas).

Notes:
If the battery is losing its performance, the charge/operations display will begin to blink slowly and the appliance will shut off after a certain time. In this case, recharge the battery.
Switch the appliance off after each cleaned surface. This will increase your operating time per battery charge.

Cleaning without the spray bottle
Apply the detergent as usual according to manufacturer's instructions and loosen the dirt.
Further procedure same as the "Cleaning with spray bottle and wiper attachment", see illustration .

Interrupting the work
Illustration

Set the appliance on the support leg (parking position) and switch it off.

Emptying the reservoir during operation
Once the max. fill level (mark) of the dirt water reservoir is reached, please empty the tank. Turn off the appliance.
Illustration


Pull off the lock of the dirt water reservoir and empty the tank.
Close the dirt water reservoir.

Finish up your work / clean appliance

Turn off the appliance.
Illustration

First, release the attachment with the pull-off lips and remove it from the suction head, then release the suction head and remove.
Clean the suction head and the attachment with the pull-off lips under running water (do not wash in dishwater).

Illustration


The basic appliance contains electrical components. Do not clean this under running water!
Remove the dirt water reservoir, rotate the lock and pull out.
Empty the reservoir and rinse with clear water. Close the reservoir again.
Pull the wipe pad off the spray bottle and clean under running water. The wipe pad can be cleaned in a washing machine; however, do not use fabric softener.
Let the cleaned appliance dry prior to assembly.
Charge the battery.

Storing the Appliance
Store the appliance upright in a dry room.

Troubleshooting

Spray bottle does not spray

Refill detergent.
Pump mechanism in spray bottle defective, contact dealer.

Machine does not start

Check the charge/operations display:
No signal or slowly blinking signal:
Charge the battery.
With a rapidly blinking signal: Inform your dealer.

Streaks while cleaning

Clean the pull-off lip.
Reverse the used pull-off lip:
Pull the pull-off lip out of the rubber toward the side. Moisten the rubber lip's rounded sides with water or detergent. Reinstall the rubber lip into the holder with the reverse side first.
Replace the pull-off lip if necessary: If both edges are worn after the rubber lip was reversed, you will need to install a new lip. Replace the rubber lip as described above.
Adjust the dosing of cleaning solution.

Water is leaking from the air louvers

Empty the dirt water reservoir (max. 100 ml content).

Special accessories

Window cleaner concentrate (4 x 20 ml)
Order No. 6.295-302.0
Micro-fibre wiping pad (2 piece)
Order No. 2.633-100.0
Removable lips, wide (2 ea.)
Order no.: 2.633-005.0

Technical specifications

Subject to technical modifications!

Customer Service

Australia KÄRCHER Pty. Ltd. 40 Koornang Road
Scoresby, Victoria 3179
1800 675 714 (Free Call)
www.karcher.com.au
New Zealand Karcher Ltd.
12 Ron Driver Place
East Tamaki, Aukland
(09) 274-4603
www.karcher.co.nz

Safety instructions

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.
Two models of this appliance are offered.

Proper use

• Use this battery operated appliance only for personal use, for cleaning moist, smooth surfaces such as windows, mirrors or tiles. Not meant for the vacuum of dust.
• The appliance is not intended to vacuum up larger amounts of fluids from horizontal surfaces, such as from a tipped drinking glass (max. 25 ml).
• Only use this appliance with conventional window cleaners (no spirit, no foam cleaners).
  We recommend: Window cleaner concentrate made by KÄRCHER (see chapter "Accessories").
• Please use this appliance only with accessories and spare parts approved by KÄRCHER.

Any use extending beyond this is not considered as proper use. The manufacturer is not liable for any losses resulting from this; the user alone bears the risk for this.

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.
• Do not insert objects into the air louvers.
• Do not spray jet into eyes.
• Do not direct the spray jet directly on equipment containing electrical components, such as the interior of ovens.
• Prior to using this appliance on sensitive (high shine) surfaces, test the microfibre wiping pad at an inconspicuous location.

Information regarding the battery

• Short circuit hazard! Do not insert conductive objects (such as screwdrivers or similar) into the charger plug.
• You may recharge the battery using only the original charger provided with the appliance or a charger approved by KÄRCHER.

Tips for using the battery charger

• In case of visual damage, replace the charger with charger cable immediately by original parts.
• The voltage indicated on the type plate must correspond to the supply voltage.
• Only use and store the charger in dry rooms, ambient temperature 5 - 40°C.
• Never touch the mains plug with wet hands.

Information regarding the transport

• The battery has been tested as per the relevant directives for international transport and can be transported/ shipped.
