Huawei LUNA2000 Manual

Installing the ESS

Floor-Mounted Installation

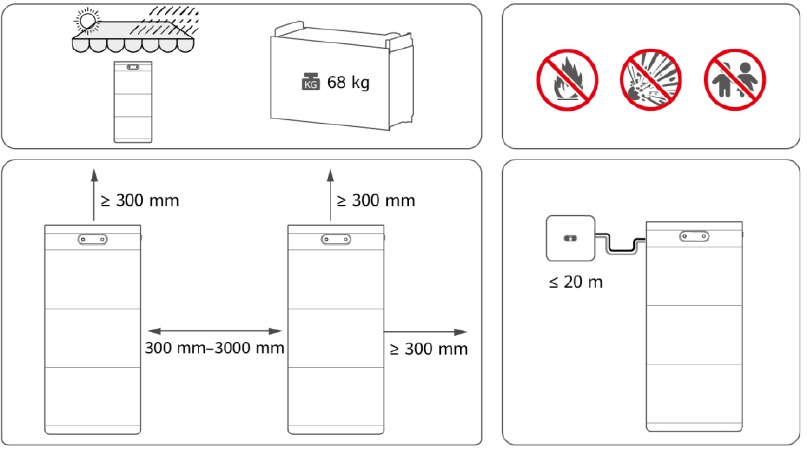

For wall- and floor-mounted installation, ensure that the load-bearing capacity meets the requirements (one battery expansion module weighs 68 kg).

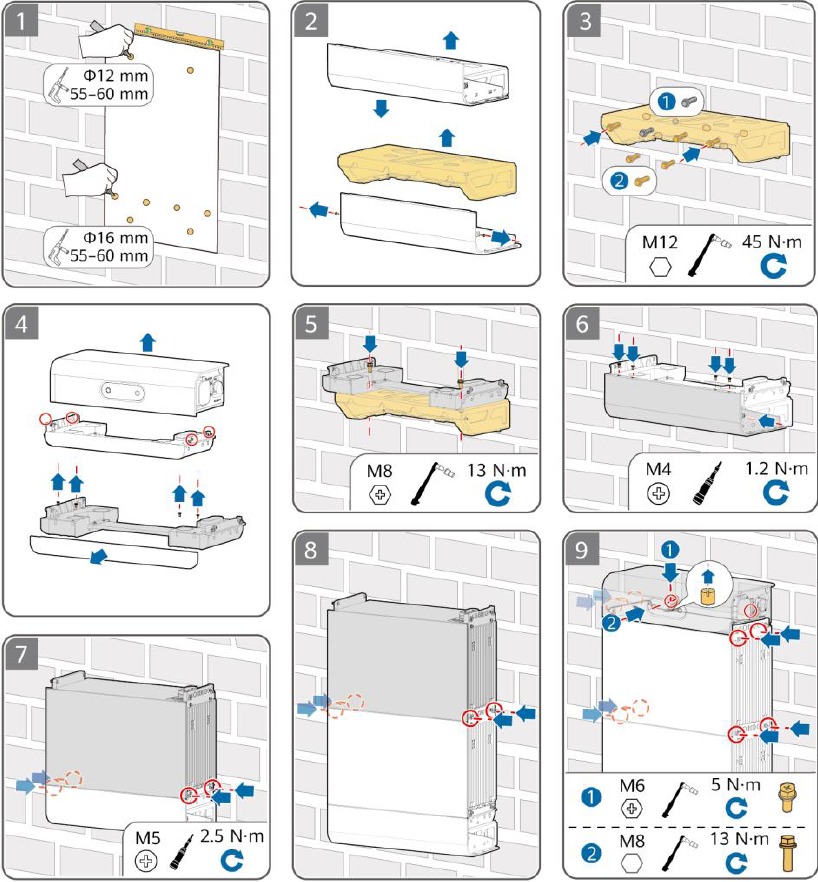

Wall-Mounted Installation

Before connecting terminals, route the cables through the decorative cover.

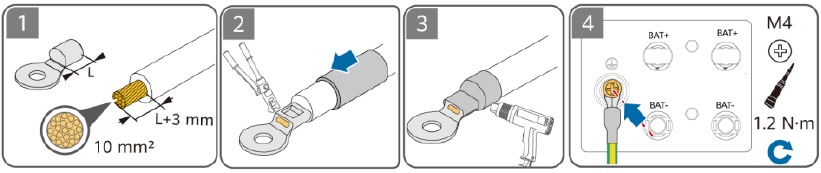

Preparing a PE Cable

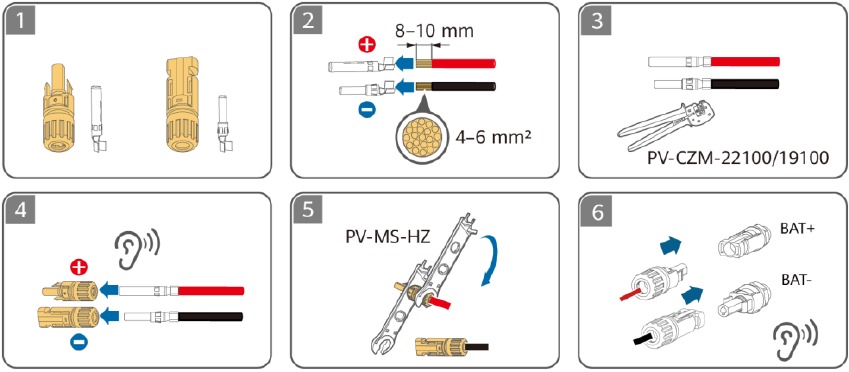

Preparing DC Cables

Use the Staubli MC4 positive and negative metal terminals and DC connectors delivered with the product.

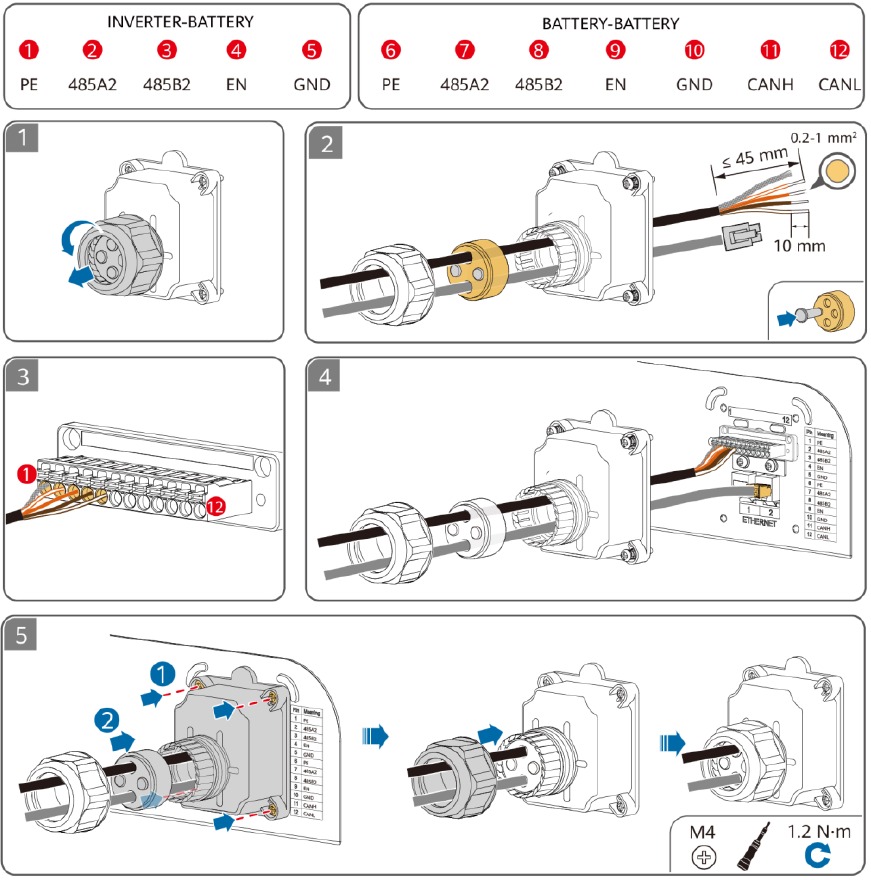

Preparing Signal Cables

Ensure that the terminal nuts and waterproof rubber plugs on the ESS and the devices connected to it are tightened. Otherwise, the desired waterproof performance may not be achieved, resulting in device damage.

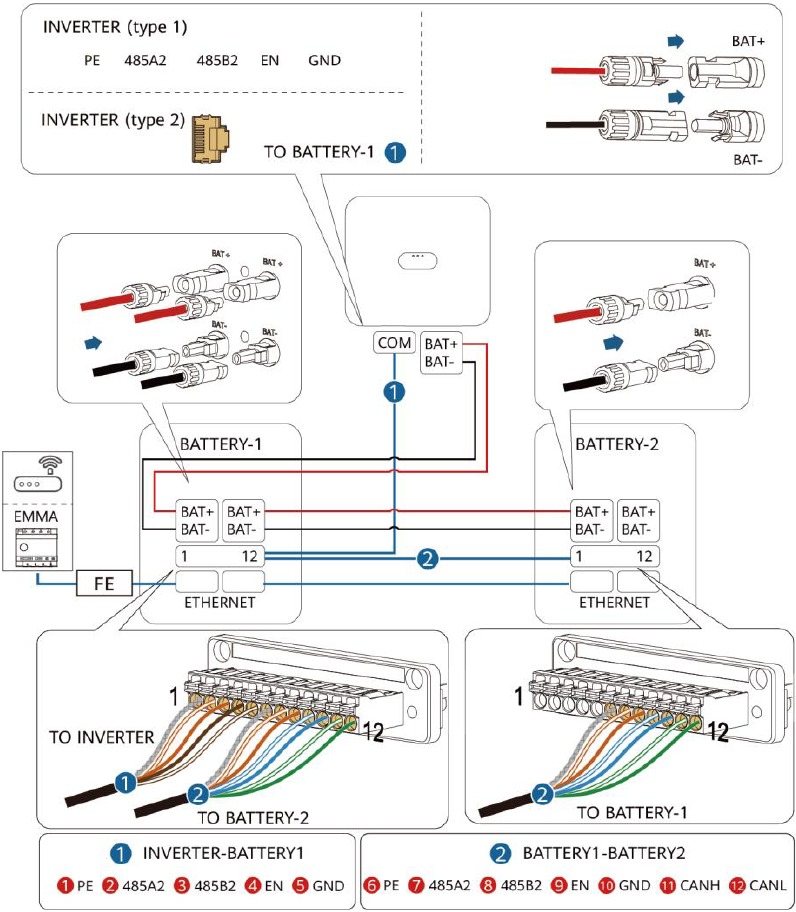

Electrical Connections

For details about how to connect parallel cables, see the user manual.

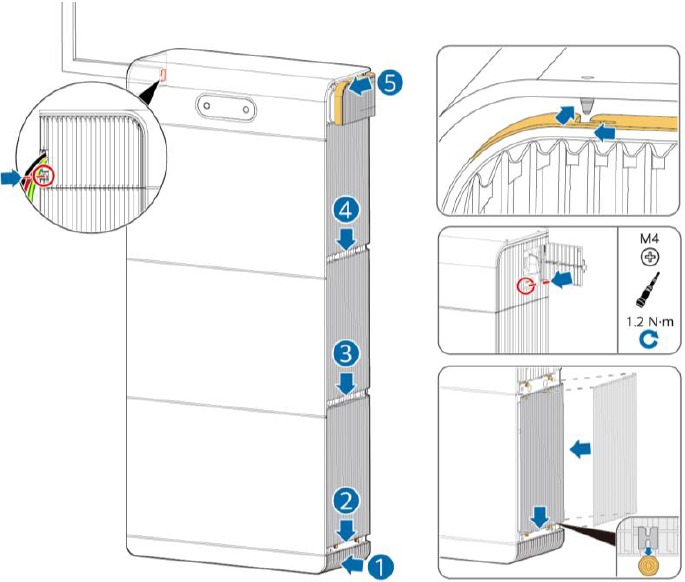

Installing Decorative Covers

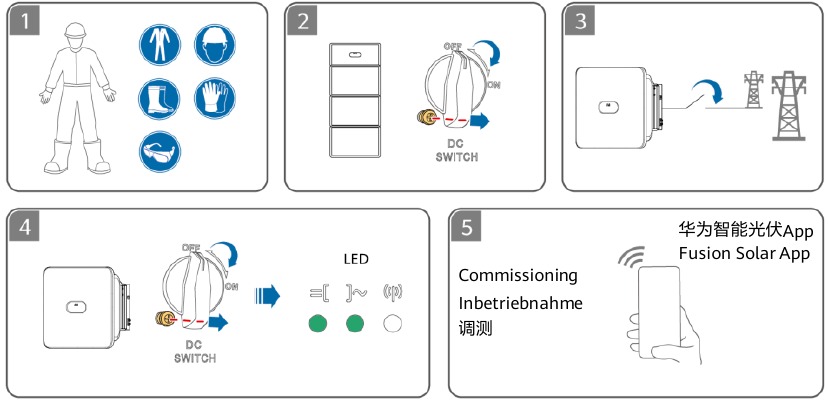

Power-On and Commissioning

Power on the ESS within 24 hours after unpacking. If the ESS cannot be powered on in time, put it in the original packaging and place it in a dry indoor environment without corrosive gases.

Scan the QR code for commissioning instructions, other operations and support.

digitalpower.huawei.com
