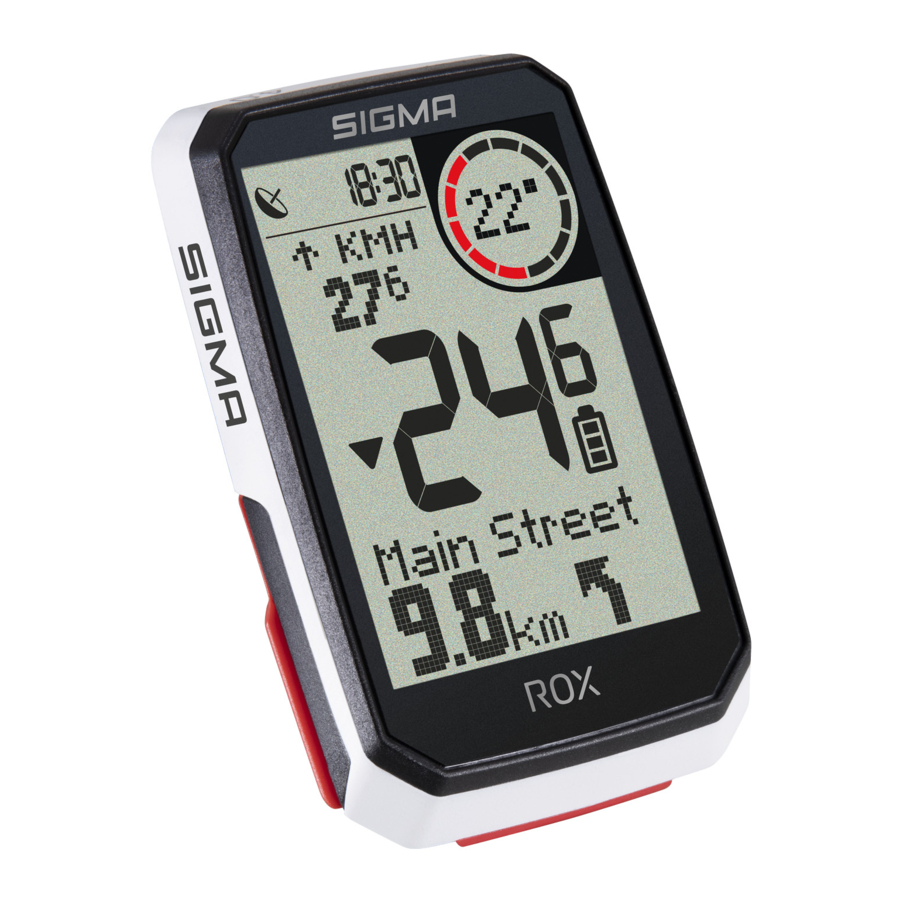

Sigma ROX 4.0 Manual

CONTENTS

INSTALLATION

HEART RATE SENSOR

HEART RATE SENSOR BATTERY CHANGE

SPEED / CADENCE SENSOR FIRST START

TIP : Watch the video tutorial for more information, follow this link:

goto.sigmasport.com/rox4-0-tutorials

Blue light flashes.

SPEED SENSOR

The SPEED sensor can be mounted on the bicycle hub of both wheels.

CADENCE SENSOR

BUTTON FUNCTIONS

1. START/STOP/MENU button
   • Start training
   • Stop training
   • Confirm input
   • One menu level down
   • Switch on the device (press for 3s)
     Press and hold the button:
   • Open and close menu
2. PLUS button
   • One page forward
   • Increase value
     Press and hold the button:
   • Save and reset training values
3. MINUS button
   • One page backward
   • Decrease value

FIRST START

Scan Code with the SIGMA RIDE App

TIP
SIGMA RIDE App

The app offers you many functions for setting up and customising the ROX 4.0.
For more information on the app functions, see the „SIGMA RIDE app" page.

1. Press START Button for 5s to Wake-Up.
2. Connect RIDE App OR configure the general settings of your device manually.
3. Enjoy your device and start your first ride!

TRAINING

1. Press START button for 3s to start the device. SIGMA RIDE App

2. Don't move and search for clear sky location for fast GPS fix.
3. Wait for „GPS OK". Press START button to start the training session.

4. Press START button to stop the training session.

5. Hold „+" button to reset training values and save your training.

6. Sync with Smartphone for full data analysis and sharing.

   SIGMA RIDE App

MENU OVERVIEW

MAIN MENU

1. Hold START button, when training is NOT started.

2. You have access to the main menu with all the functions of the ROX 4.0.


SHORT CUT MENU

1. Hold START button, when training is active or in auto pause.

2. You can edit the most important settings during training.


SETTINGS

1. Choose Settings in main menu to set the device.

2. You can edit Device settings and Totals.

3. Choose a setting you want to edit and press START button to set.
4. Press „-" button to decrease a value or to toggle through options.
5. Press „+" button to increase a value or to toggle through options.
6. Press START button to confirm the setting.

   Example
7. Use the App to set your training views.

   SIGMA RIDE App - training views
8. Use the App to update your firmware.

   SIGMA RIDE App - firmware

SENSOR CONNECTION

1. Choose MAIN MENU > CONNECTION to edit connections.

2. Choose SENSORS to pair new sensors or manage paired sensors.

3. Choose „SEARCH NEW" to add new sensors.

4. Make sure that sensors are switched on!

5. Select Sensor with + or - and press START to pair sensor. Repeat, if you want to pair more sensors.


TIP: Some sensors are available in Bluetooth and ANT+ at the same time. We recommend to choose the ANT+ connection.

E-BIKE CONNECTION

1. Choose MAIN MENU > CONNECTION to edit connections.

2. In Connection choose E-Bike to pair a new E-Bike or manage paired Bikes.

3. Make sure that E-Bike is switched on!

4. Press START button to pair E-Bike.


Check QR Code for compatible E-BIKEs goto.sigmasport.com/rox4-0-ebike

SIGMA RIDE APP

1. Set Device and Training Views

2. Analyze your training

3. Share your data

4. Tracks and many more...


TIP: Check for Firmware Updates regularly. To access the changelog, follow this link:

goto.sigmasport.com/rox4-0-updates

CHARGING AND DATA TRANSFER

1. Open USB Cover.

2. Insert USB-C cable.
   Check that the cable and port are dry!
3. Charge with 5V max. 1000mA.
4. Connect to PC for data transfer.


Please ensure that the USB cover is always closed before starting a training session.

TECHNICAL INFORMATION

ROX 4.0 / Speed Transmitter / Cadence transmitter / Heart Rate Transmitter R1 Duo

Please note that our ROX devices have only been tested in the laboratory and in the field in conjunction with original SIGMA mounting systems. Accordingly, we can only grant guarantee or warranty claims for damage resulting from the connection of the bike computer to a mounting system for devices connected to original SIGMA mounting systems.
