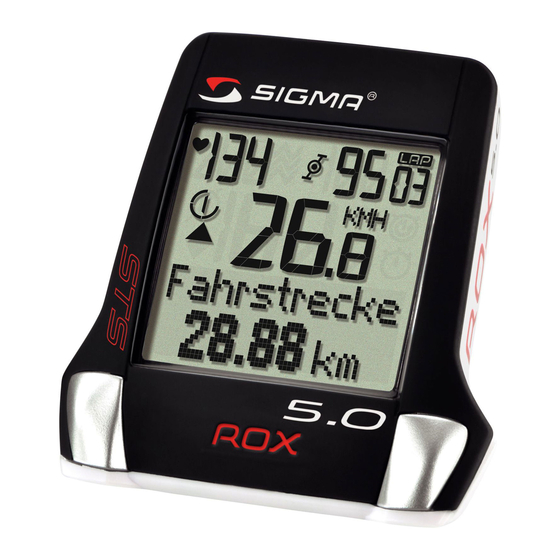

Sigma ROX 5.0 User Manual

Bike computer
Hide thumbs Also See for ROX 5.0:
Table of Contents

Advertisement

Quick Links

See also: Manual
dIgItal
wIreless
dIgItal
wIreless
dIgItal
wIreless
count
log
sPort
ready
BIKE COMPUTER
5.O

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROX 5.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sigma ROX 5.0

Summary of Contents for Sigma ROX 5.0

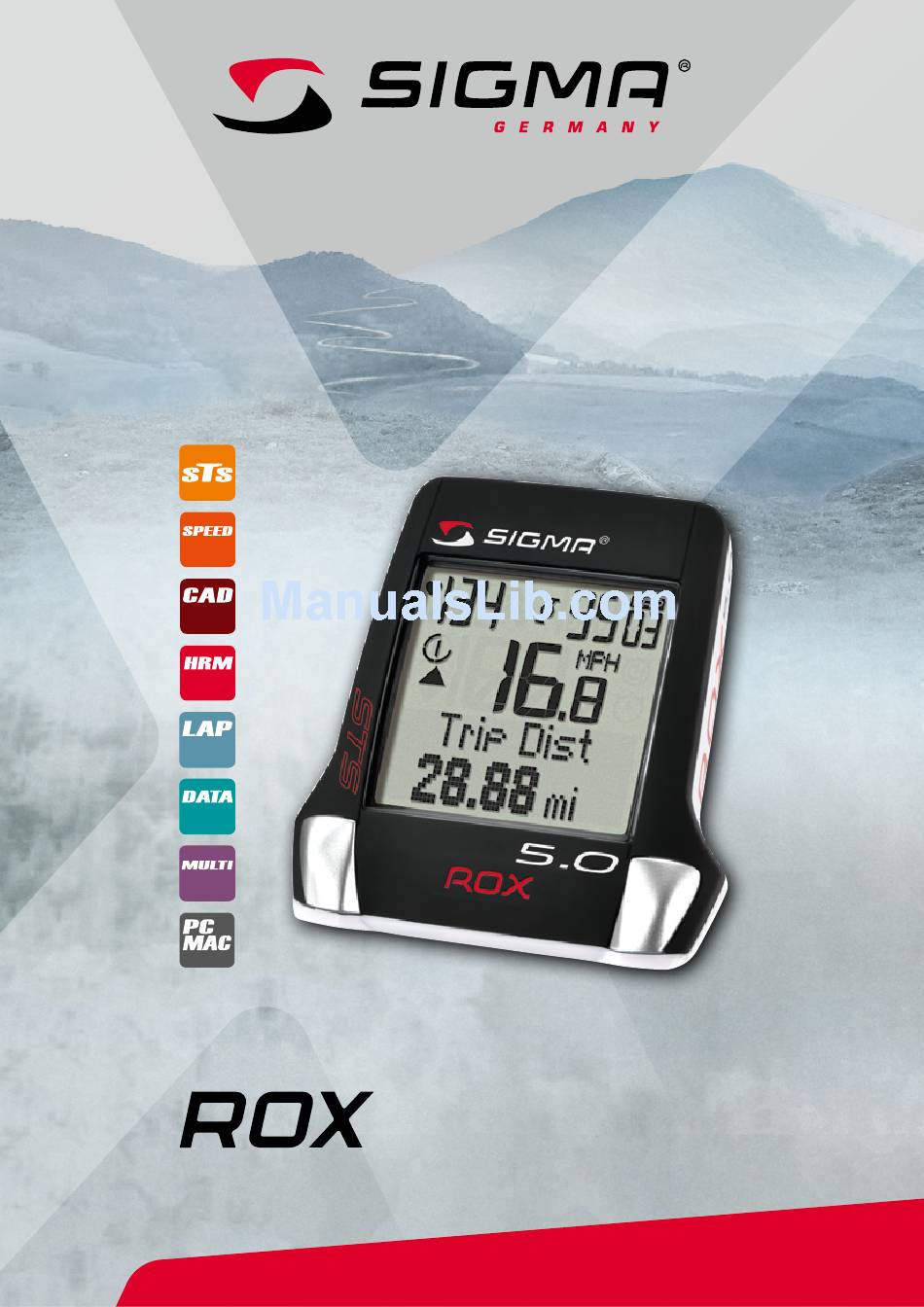

  • Page 1 dIgItal wIreless dIgItal wIreless dIgItal wIreless count sPort ready BIKE COMPUTER...

  • Page 3: Table Of Contents

    – speed and cadence ................... 10 Putting on the chest belt ..........................10 setting up a 2nd bike ............................ 10 attaching the sigma roX 5.0 to the bracket ..................10 Initial use ................................11 synchronizing the transmitters ........................ 11 2.8.1...
  • Page 4 5.10 transport mode .............................. 28 5.11 Pc interface / downloadable ........................28 5.12 wired speed transmission ......................... 29 running with the roX 5.0 ............................30 synchronizing the chest belt ........................30 starting the running time..........................30 resetting the running time ........................30 Important information, troubleshooting, and FaQ ..................
  • Page 5 5.0 contents 8.3  temperature, batteries ..........................36 warranty and guarantee ............................37 Index ....................................39 www.sigmasport.com roX 5.0 Page 5...

  • Page 7: Functions And Contents

    Functions and contents 1.1 Foreword thank you for choosing a sIgMa sPort bike computer. your new roX 5.0 will be a reliable companion for years to come. to familiarize yourself with and learn how to use the many functions of your new bike computer, please read these operating instructions carefully.

  • Page 8: Optional Accessories

    Battery compartment key attachment materials (cable ties, o-ring) roX 5.0 quick start guide 1.2.1 Optional accessories docking station wired bracket www.sigmasport.com roX 5.0 Page 8...

  • Page 9: Rox 5.0 Functions

    5.0 can be connected to a Pc or Mac. the optional docking station enables you to transmit data between your Pc and the roX 5.0. you can also set up the roX 5.0 on the Pc and then transmit the settings to the bike computer.

  • Page 10: Attaching The Rox 5.0 And Initial Use

    (5 sec). red led: bike 2; green led: bike 1. see attachment figure 2.6 Attaching the Sigma ROX 5.0 to the bracket see attachment figure www.sigmasport.com roX 5.0...

  • Page 11: Initial Use

    Moisten the electrodes on the chest belt and put it on. Move within 100 cm (approx 36 inches) of the roX 5.0 or get onto your bike. the roX 5.0 usually synchronizes with the chest belt in less than 10 seconds.

  • Page 12: Resetting The Synchronization

    5.0 attaching the roX 5.0 and initial use synchronizing the transmitters 2.8.4 Resetting the synchronization If a transmitter does not display any values or the wrong transmitter is synchronized, the synchronization can be reset. Press and hold the button for three seconds.

  • Page 13: Operating Concept

    5.0 operating concept Button functions Operating concept 3.1 Button functions Set + Reset buttons the backlight is switched on/off by simultaneously pressing both buttons. Reset button Mode 2 button use this button to scroll backward Press this button to scroll through in a menu level.

  • Page 14: Button Functions In Bike Mode

    5.0 operating concept Button functions 3.1.1 Button functions in bike mode Mode 1 functions Mode 2 functions trip distance target zone/% max. heart rate ride time Intensity zones avg. speed avg. heart rate Max. speed Max. heart rate avg. cadence...

  • Page 15: Display Structure

    5.0 operating concept display structure 3.2 Display structure the roX 5.0’s display is divided into three main areas: 3.2.1 Top display segment Reset Mode 2 this displays four current values. current heart rate (only if you are wearing the chest belt)

  • Page 16: Basic Settings

    ‘setting oPen’ flashes on the display. the preset language then appears. If you are using the roX 5.0 for the first time and awakening it from deep sleep mode, it will automatically jump to setting mode without you pressing and holding button.

  • Page 17: Calculating The Wheel Size

    ROX 5.0 Basic settings Setting the wheel size 1 and 2 4.3.1 Calculating the wheel size There are three ways to determine the wheel size: − Follow instructions in Figure A or B − Find in the table (Figure C) based on tire size.

  • Page 18: Setting The Clock

    5.0 Basic settings setting the clock 4.4 Setting the clock Reset Mode 2 Press the button to switch to the preset time. Mode 1 Press the button. the hours digit flashes. Press to increase or decrease the value respectively.

  • Page 19: Setting Your Weight

    ‘set oK’ appears on the display. Mode 1 4.8 Setting your gender Reset Mode 2 Press the button to switch to the preset gender. (the roX 5.0 is Mode 1 preset to ‘male’ by default.) Press the button. the display flashes. Press to set your gender.

  • Page 20: Setting The Training Zone

    Reset Mode 2 the roX 5.0 has three target zones. the target zones ‘Fitness’ (Fit Zone) and ‘Fatburning’ (Fat Zone) are automatically calculated based on your maximum heart rate. the ‘Individual’ target zone, can be customized based ons your own heart rate values.

  • Page 21: Setting The Intensity Zones 1, 2, 3, And 4

    Reset Mode 2 the roX 5.0 has four intensity zones, which make it easier to control your long term training. the values are automatically calculated based on your maximum heart rate. you can also customize the values for the individual intensity zones.

  • Page 22: Setting The Total Distance For Bike 1 Or Bike 2

    5.0 Basic settings setting the total distance for bike 1 or bike 2 4.12 Setting the total distance for bike 1 or bike 2 Reset Mode 2 you can use this option to enter existing values (e.g. transferred from your old device).

  • Page 23: Setting The Total Running Time

    5.0 Basic settings setting the total running time 4.14 Setting the total running time Reset Mode 2 you can use this option to enter existing values (e.g. transferred from your old device). new values are then added to these.

  • Page 24: Setting The Total Running Calories

    5.0 Basic settings setting the total running calories 4.16 Setting the total running calories Reset Mode 2 you can use this option to enter existing values (e.g. transferred from your old device). new values are then added to these.

  • Page 25: Exiting The Basic Settings

    5.0 Basic settings exiting the basic settings 4.19 Exiting the basic settings Press and hold the button for three seconds to exit the basic settings. ‘setting close’ flashes on the display. www.sigmasport.com roX 5.0 Page 25...

  • Page 26: General Rox 5.0 Functions

    5.0 general roX 5.0 functions display backlight General ROX 5.0 functions 5.1 Display backlight Reset the backlight function is switched on/off by simultaneously pressing the buttons. ‘light on/light off’ briefly appears on the display. Reset the display lights up when any button is pressed; the respective function only opens when the button is pressed a second time.

  • Page 27: Opening The Lap View

    5.0 general roX 5.0 functions opening the lap view 5.4 Opening the lap view Reset Mode 2 Press and hold the middle button ( ) for three seconds. ‘lap view oPen’ flashes on the display. Press the buttons to switch between the following values: lap Mode 1 time, time since start, lap distance, distance since start, max.

  • Page 28: Resetting Trip Data

    5.8 Total values for bike 1 and bike 2 If you use the roX 5.0 on one bike, only the total values for the first bike will be displayed. If you also use a second bike, the total values are displayed under ‘bike 1’, ‘bike 2’...

  • Page 29: Wired Speed Transmission

    5.0 general roX 5.0 functions wired speed transmission 5.12 Wired speed transmission the roX 5.0 can be retrofitted with a wired speed transmitter to measure the speed (the cadence and heart rate transmission remain wireless). www.sigmasport.com roX 5.0 Page 29...

  • Page 30: Running With The Rox 5.0

    Running with the ROX 5.0 the roX 5.0 can also be used as a running computer. Please use the included wristband for running or hiking. when the roX 5.0 is attached to the wristband, all the bike functions are hidden (but still remain saved and can be accessed on your next bike trip).

  • Page 31: Important Information, Troubleshooting, And Faq

    Important information, troubleshooting, and 7.1 Important information 7.1.1 ROX 5.0 water resistance the roX 5.0 is watertight. It can be used in the rain without any risk of damage. the buttons can be pressed. 7.1.2 Water resistance of the transmitters...

  • Page 32: Troubleshooting

    Is the chest belt correctly positioned against your body? − Have you checked the heart rate transmitter’s battery status? Display blank − Have you checked the roX 5.0’s battery status? − Has the battery been correctly inserted (+ up)? − are the battery contacts okay (bend carefully)? Display weak/slow −...

  • Page 33: Frequently Asked Questions (Faq)

    In general, the roX 5.0 and all three transmitters are designed so that the battery lasts at least a year (based on one hour of use each day).

  • Page 34: Technical Data

    5.0 technical data Max, min, and default values Technical data 8.1 Max, min, and default values Unit Min. Max. Bicycle current speed kmh/mph 199.8/124.2 avg. speed kmh/mph 0.00 199.8/124.2 Max. speed kmh/mph 0.00 199.8/124.2 trip distance km/mi 0.00 9999.99 current cadence avg.
  • Page 35 5.0 technical data Max, min, and default values Unit Min. Max. Total values total distance km/mi 99999 Bike 1/2 Bike 1+2 total time mm:ss/hhh:mm:ss 12:00 aM 999:59 Bike 1/2 Bike 1+2 total calories kcal 99999 Bike 1/2 Bike 1+2 www.sigmasport.com...

  • Page 36: Changing The Batteries

    5.0 technical data changing the batteries 8.2 Changing the batteries low battery warnings for the bike computer and transmitters (speed, cadence, and/or chest belt) appear on the display. after changing the battery, only the clock needs to be reset.

  • Page 37: Warranty And Guarantee

    Fcc authorization to operate this equipment. this class B digital apparatus complies with canadian Ices-003. this equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Fcc rules.
  • Page 38 5.0 warranty and guarantee − reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

  • Page 39: Index

    5.0 Index 10 Index total calories 23 total distance 22 total ride time 22 wheel size 16 accessories 8 setting the countdown 27 attaching the bracket 10 setting the date 18 setting the intensity zone 21 setting the language 16...
  • Page 40 SIGMA-ElEkTro GmbH Dr. - Julius - Leber - Straße 15 D-67433 Neustadt /Weinstraße SIGMA SPorT USA 3487 Swenson Ave. St. Charles, IL 60174, U.S.A. SIGMA SPorT ASIA 4F, No.192, Zhonggong 2 Rd., Xitun Dist., Taichung City 407, Taiwan...
