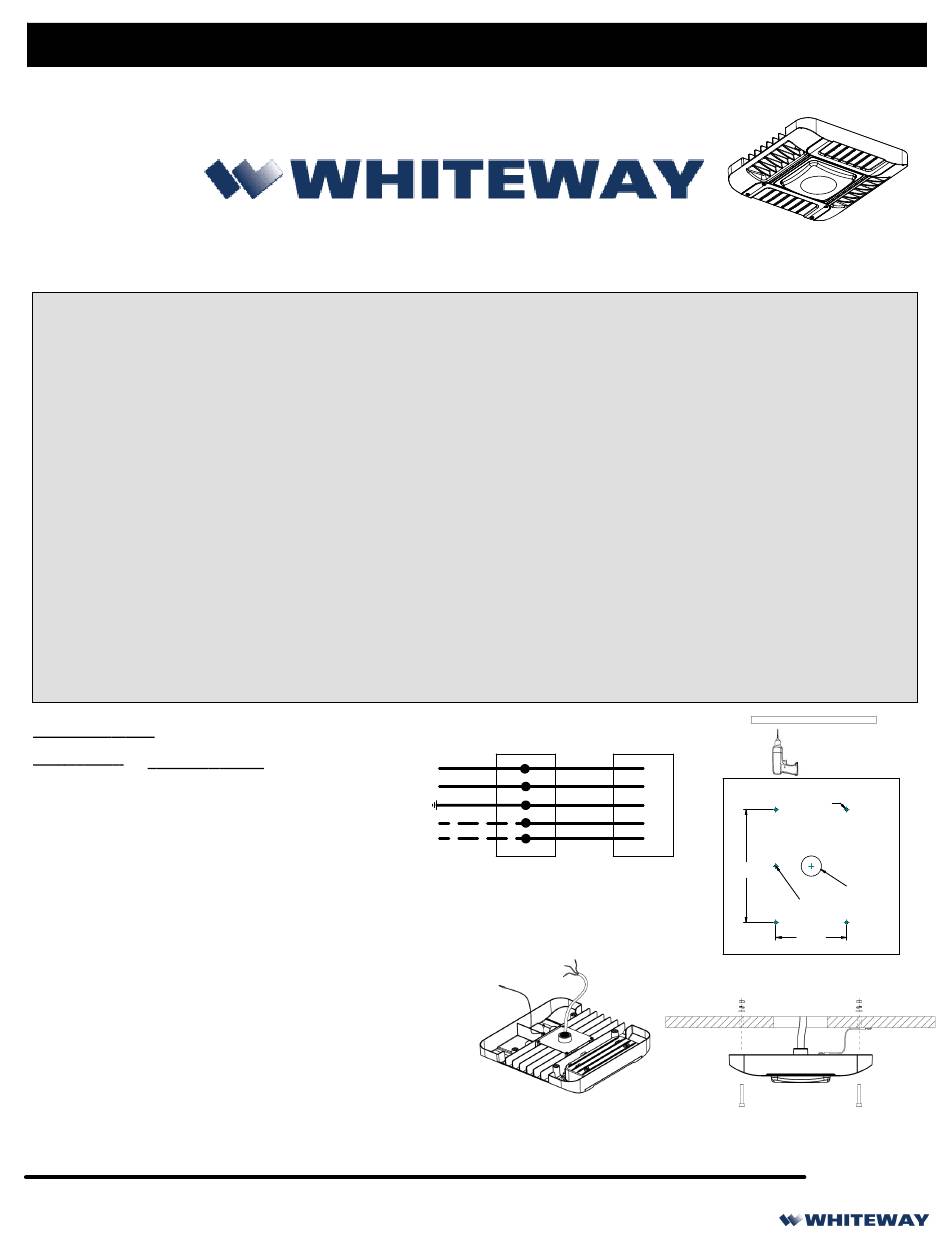

HUBBELL LIGHTING Whiteway Galasy II Series Installation Instructions

INSTALLATION INSTRUCTIONS - GSY GAS CANOPY
WARNING! Fixtures must be grounded and installed in accordance with the National Electrical Code and all local codes. Failure to do so may increase
the RISK OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH. Install and use so fixture failures do not cause a hazard and use only in
environments for which the product is specifically marked.
WARNING! This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. Thoroughly
wash hands after installing, handling, cleaning, or otherwise touching this product.
WARNING! Dangerous voltage exist within the unit and all precautions usually observed in handling high voltage equipment should be observed when
replacing light engine or otherwise servicing luminares. Disregarding this warning could result in electrical shock and possible injury to the individual
installing or servicing this equipment. Installation and servicing should be done by qualified personnel.
CAUTION! Follow ALL luminaire recommendations, product markings, instructions, restrictions and warnings regarding luminaire operation and burning
position. Luminaire label shows electrical and environmental requirements and restrictions.
NOTE! This luminare is designed for outdoor lighting applications with ambient temperatures not exceeding 40°C (104°F).
All electrical work must be done by a qualified electrician.
Turn off electric power to all affected circuits and allow to cool before installation or servicing.
A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention. Dusting with a soft, clean,
dry cloth is normally sufficient for the optical system. Any accumulation of dust or dirt should be removed regularly.
Carefully read these instructions before installing product. If you do not understand these instructions, before starting any work, contact your Hubbell
Lighting distributor or techsupport@hubbell-ltg.com or (864) 678-1000
Give instructions to facility owner/manager for future reference.
Mounting The Fixture
Tools Required:
Hardware included:
Power Drill
Self tapping Screws (4 pcs) - M6.3x60mm
Drill Bit
Safety wire (1 pc)
Drive Bit
Screw for safety wire (1 pc) - M5x6mm
Foam Housing Pads (4 pcs)
•
Turn off power to electrical connections.
•
Wiring must be performed by a qualified electrician.
•
Make electrical connections according to the local and National Electrical
Codes.
•
This product is only suitable for Universal Voltage wiring.
•
Remove fixture from packaging along with hardware bag.
There are 5 wires coming out of this fixture: (Wiring shown on FIGURE 1)
Black Wire - Line Voltage
White Wire - Neutral
Green Wire - Ground
Purple Wire - (V+) DIM Lead (if applicable)
Pink Wire - (V-) DIM Lead (if applicable)
If the dimming leads are not used, cap off each of the these wires.
•
Ceiling Mount :
•
Drill holes or utilize self-drilling screws into ceiling in the pattern shown (you
may use the fixture itself as a pattern for the mounting holes) (Fig. 2)
•
Attach one side of the safety wire to the fixture and the other side to the ceiling
to securely hold the fixture in place during installation (Fig. 3).
•
Connect the wires as shown (Fig. 1) and then secure fixture to the ceiling with
the screws and washers as shown (Fig. 4).
93131705 Rev. D
Hubbell Outdoor Lighting, a division of Hubbell Lighting, Inc.
701 Millennium Blvd., Greenville, SC 29607
Tel: 864-678-1000 Website: www.hubbelllighting.com
SAVE THESE INSTRUCTIONS
READ THOROUGHLY BEFORE INSTALLATION
