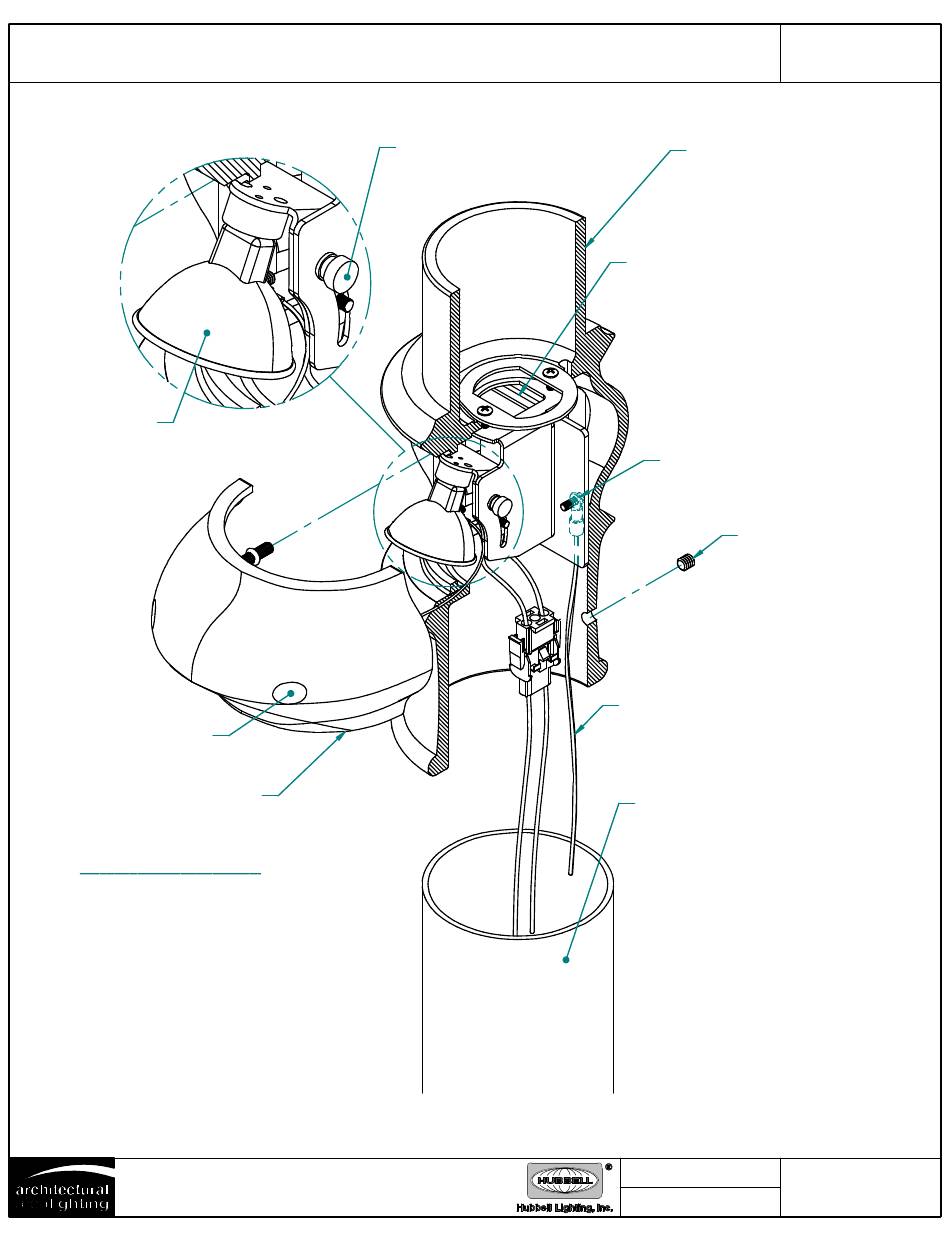

INSTALLATION INSTRUCTIONS
MR16 LAMP
BY OTHERS
NOTE:
50W MAXIMUM.
(2) HATCH MOUNTING
SCREWS
HATCH
INSTALLATION INSTRUCTIONS:
1. TURN OFF ALL POWER.
2. CONNECT THE LEADS FROM THE
EGRESS POST TOP ADAPTER TO THE
AUXILIARY POWER SUPPLY AND PASS
THE MAIN POWER SUPPLY LEADS
THROUGH THE ADAPTER WIREWAY.
3. PLACE THE EGRESS POST TOP
ADAPTER ON THE POLE TOP
BUT DO NOT TIGHTEN YET.
4. LOOSEN (2) HATCH MOUNTING
SCREWS. REMOVE HATCH.
5. INSTALL (1) MR16 (50 WATT MAX)
LAMP PROVIDED BY OTHERS.
16555 East Gale Avenue
City of Industry, CA 91745
(626)968-5666
THUMB SCREW
EGRESS TENON
ADAPTER WIRE WAY
GROUNDING
(3) S/S SET SCREW
GROUNDING WIRE
4" O.D. POLE (REF)
6. LOOSEN (1) THUMB SCREW AND
ADJUST THE VERTICAL LAMP
POSITION TO THE DESIRED LOCATION.
TIGHTEN (1) THUMB SCREW.
7. REPLACE HATCH ON THE EGRESS
POST TOP ADAPTER AND TIGHTEN
(2) HATCH MOUNTING SCREWS.
8. ROTATE EGRESS POST TOP
ADAPTER ON POLE TOP IN
ORDER TO ADJUST THE HORIZONTAL
LAMP POSITION. TIGHTEN (3) S/S
SET SCREWS TO SECURE ADAPTER.
9. CONNECT THE LEADS FROM THE
MAIN POWER SUPPLY TO THE POST
TOP FIXTURE. PLACE THE POST TOP
FIXTURE OVER THE EGRESS TENON
AND SECURE THE FIXTURE TO THE
EGRESS TENON. (BY OTHERS)
DATE
APPRVD
PART NO.
7/27/2010
DATE
REV.
CATALOG NUMBER
EPA-T
A96473
