16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX 626/968-5716

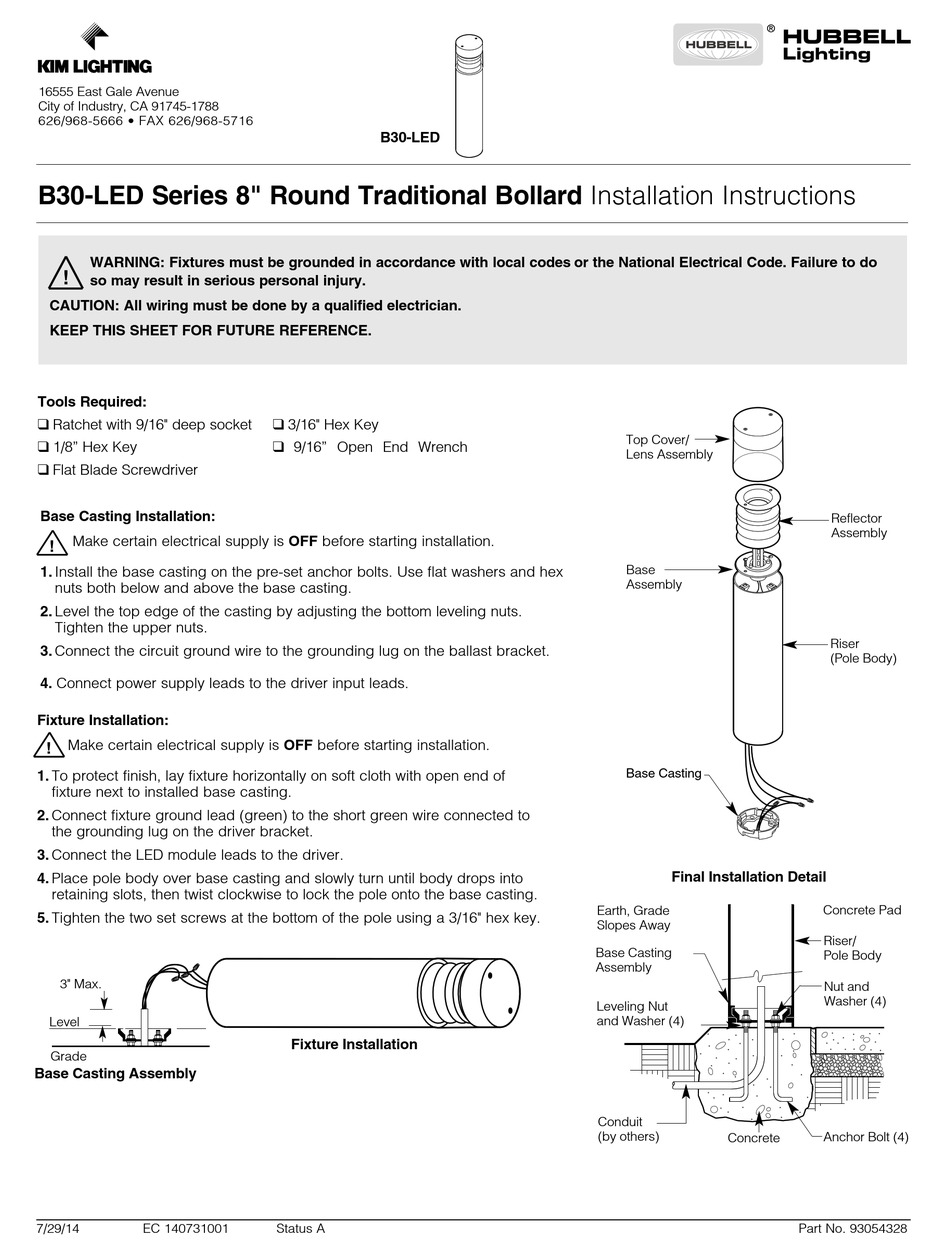

B30-LED Series 8" Round Traditional Bollard Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code. Failure to do
!
so may result in serious personal injury.
CAUTION: All wiring must be done by a qualified electrician.
KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required:
q Ratchet with 9/16" deep socket
q 1/8" Hex Key
q Flat Blade Screwdriver
Base Casting Installation:
Make certain electrical supply is OFF before starting installation.
!
1. Install the base casting on the pre-set anchor bolts. Use flat washers and hex
nuts both below and above the base casting.
2. Level the top edge of the casting by adjusting the bottom leveling nuts.
Tighten the upper nuts.
3. Connect the circuit ground wire to the grounding lug on the ballast bracket.
4. Connect power supply leads to the driver input leads.
Fixture Installation:
Make certain electrical supply is OFF before starting installation.
!
1. To protect finish, lay fixture horizontally on soft cloth with open end of
fixture next to installed base casting.
2. Connect fixture ground lead (green) to the short green wire connected to
the grounding lug on the driver bracket.
3. Connect the LED module leads to the driver.
4. Place pole body over base casting and slowly turn until body drops into
retaining slots, then twist clockwise to lock the pole onto the base casting.
5. Tighten the two set screws at the bottom of the pole using a 3/16" hex key.
3" Max.
Level
Grade
Base Casting Assembly
7/29/14
EC 140731001
B30-LED
q 3/16" Hex Key
q 9/16" Open End Wrench
Fixture Installation
Status A
Top Cover/
Lens Assembly
Base
Assembly
Base Casting
Final Installation Detail
Earth, Grade
Slopes Away
Base Casting
Assembly
Leveling Nut
and Washer (4)
Conduit
(by others)
Concrete
Reflector
Assembly
Riser
(Pole Body)
Concrete Pad
Riser/
Pole Body
Nut and
Washer (4)
Anchor Bolt (4)
Part No. 93054328
Advertisement
Related Manuals for HUBBELL LIGHTING Kim Lighting B30-LED Series
Summary of Contents for HUBBELL LIGHTING Kim Lighting B30-LED Series
- Page 1 16555 East Gale Avenue City of Industry, CA 91745-1788 626/968-5666 • FAX 626/968-5716 B30-LED B30-LED Series 8" Round Traditional Bollard Installation Instructions WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code. Failure to do so may result in serious personal injury.
- Page 2 B30-LED Series 8” Round Traditional Bollard Installation Instructions Unswitched Input Black (+) Standard Input Black (+) White (-) Green (GND) Gray Dimming Lead (-) Purple Dimming Lead (+) Fixture 30 mA Max Housing FOR OPTIONAL BATTERY BACKUP 0-10V DIMMING Driver assembly and base casting looks Driver has a 0-10V dimming interface with like image above.
- Page 3 B30-LED Series 8” Round Traditional Bollard Installation Instructions LED BOLLARD WARRANTY When properly installed and under normal conditions of use, Kim Lighting warrants LED Bollard products (“Product(s)”) sold by Kim Lighting to be free from defects in material and workmanship for (i) a period of five (5) years for metal parts, (ii) a period of ten (10) years for exterior housing paint finish(s), and, (iii) a period of six (6) years for LED Light Engines () and, (iv) a period of five (5) years for LED power components (LED Driver), from the date of sale of such goods to the buyer as specified in Kim Lighting shipment documents for each Product(s).
