HUBBELL LIGHTING KIM LIGHTING KLV206 Installation Instructions

16555 East Gale Avenue
City of Industry, CA 91745-1788
626/968-5666 • FAX 626/968-5716
Accent Light - KLVL206 Installation Instructions
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS: Do not overdrive fixtures with greater
!
than 12 volts or fixture over-heating and short lamp life will occur. Do not overload the transformer by
installing (or relamping) higher wattage lamps than planned. Note: Total wattage of all lamps connected to one
transformer must not exceed the capacity of that transformer. Do not install luminaire within 10 feet (3.04m) of a
pool, spa or fountain. DO NOT operate luminaire with missing or damaged lens.
SAFETY WARNING: When relamping, be sure electrical supply is OFF. Use discretion when touching
!
fixture and be sure to allow fixture to cool before relamping.
MAINTENANCE: To maintain light efficiency and prevent fixture-overheating, glass lenses and enclosure must
be kept clean and free of dirt, dust, leaves, trash (combustible materials) and mineral deposits from water.
Particular care should be taken not to locate fixtures where small children can reach them if higher wattages
are used.
KEEP THIS SHEET FOR FUTURE REFERENCE.

Tools Required:

q Philips Screwdriver
q 1/8" Allen Wrench
! Make certain the electrical supply is OFF before starting fixture installation.

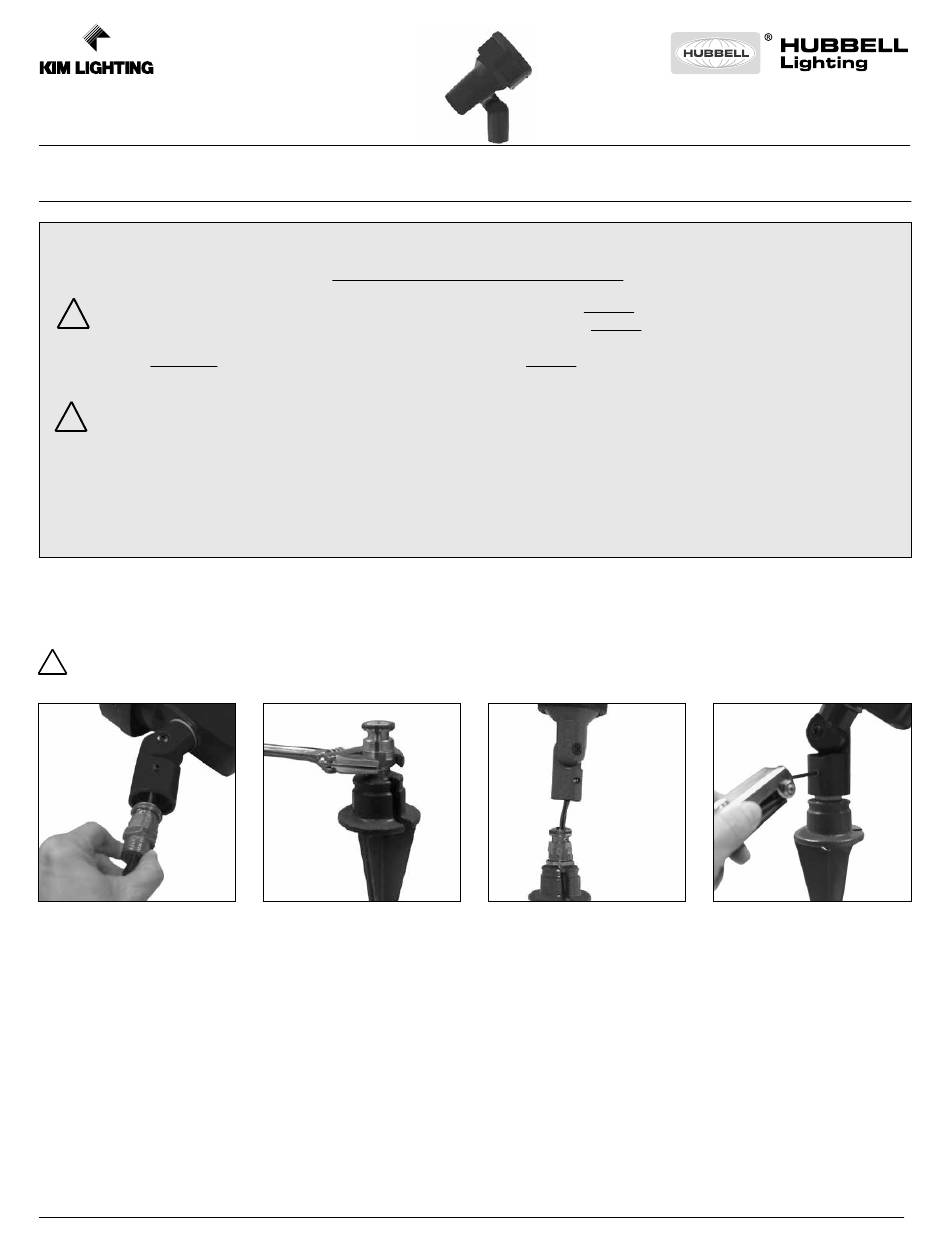

1. Remove coupling from fixture.
IMPORTANT: Do not overload the transformer by installing higher wattage fixtures than planned. Remember, the total wattage of all
fixtures connected to one transformer must not exceed the capacity of that transformer.
IMPORTANT: When fixtures are aimed up, particular care should be taken to keep lens free of debris and mineral deposits. When
fixtures are in an area where debris or mineral deposits are likely to be a problem, lower wattage lamps should be used, and lenses
should be cleaned on a regular maintenance schedule.
*Consult Kim Landscape Lighting Collection Catalog for mounting device options.
3/24/14 EC 140326006
KLV206

IMPORTANT SAFETY INSTRUCTIONS!

q Flat Blade Screwdriver
q 3/16" Allen Wrench
2. Tighten coupling onto
mounting device.
Status A
q Adjustable Wrench
3. Install fixture onto coupling.
Attach fixture leads.
Note: KIM KLV Mounting
Options can be installed
before fixture is attached.
4. Loosen set screw, adjust
fixture rotation, and tighten
set screw.
Part No. 93049435
