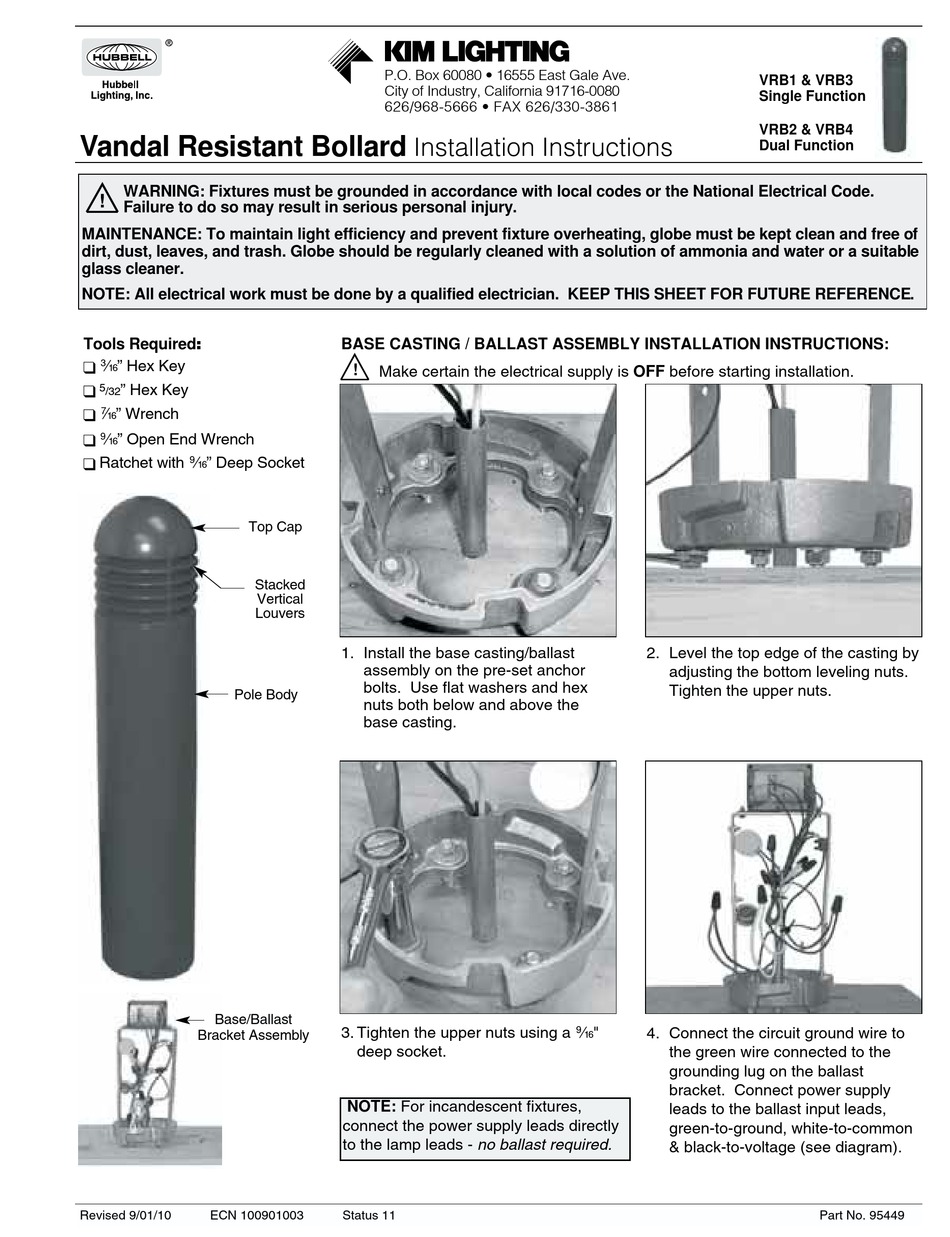

HUBBELL LIGHTING KIM LIGHTING VRB1 Installation Instructions

Vandal Resistant Bollard
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
MAINTENANCE: To maintain light efficiency and prevent fixture overheating, globe must be kept clean and free of
dirt, dust, leaves, and trash. Globe should be regularly cleaned with a solution of ammonia and water or a suitable
glass cleaner.
NOTE: All electrical work must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required:
F" Hex Key
5 /32
" Hex Key
G" Wrench
N" Open End Wrench
Ratchet with N" Deep Socket
Top Cap
Stacked
Vertical
Louvers
Pole Body
Base/Ballast
Bracket Assembly
Revised 9/01/10 ECN 100901003
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
Installation Instructions
BASE CASTING / BALLAST ASSEMBLY INSTALLATION INSTRUCTIONS:
!
Make certain the electrical supply is OFF before starting installation.
1. Install the base casting/ballast
assembly on the pre-set anchor
bolts. Use flat washers and hex
nuts both below and above the
base casting.
3. Tighten the upper nuts using a N"
deep socket.
NOTE: For incandescent fixtures,
connect the power supply leads directly
to the lamp leads - no ballast required.
Status 11
VRB1 & VRB3
Single Function
VRB2 & VRB4
Dual Function
2. Level the top edge of the casting by
adjusting the bottom leveling nuts.
Tighten the upper nuts.
4. Connect the circuit ground wire to
the green wire connected to the
grounding lug on the ballast
bracket. Connect power supply
leads to the ballast input leads,
green-to-ground, white-to-common
& black-to-voltage (see diagram).
Part No. 95449
