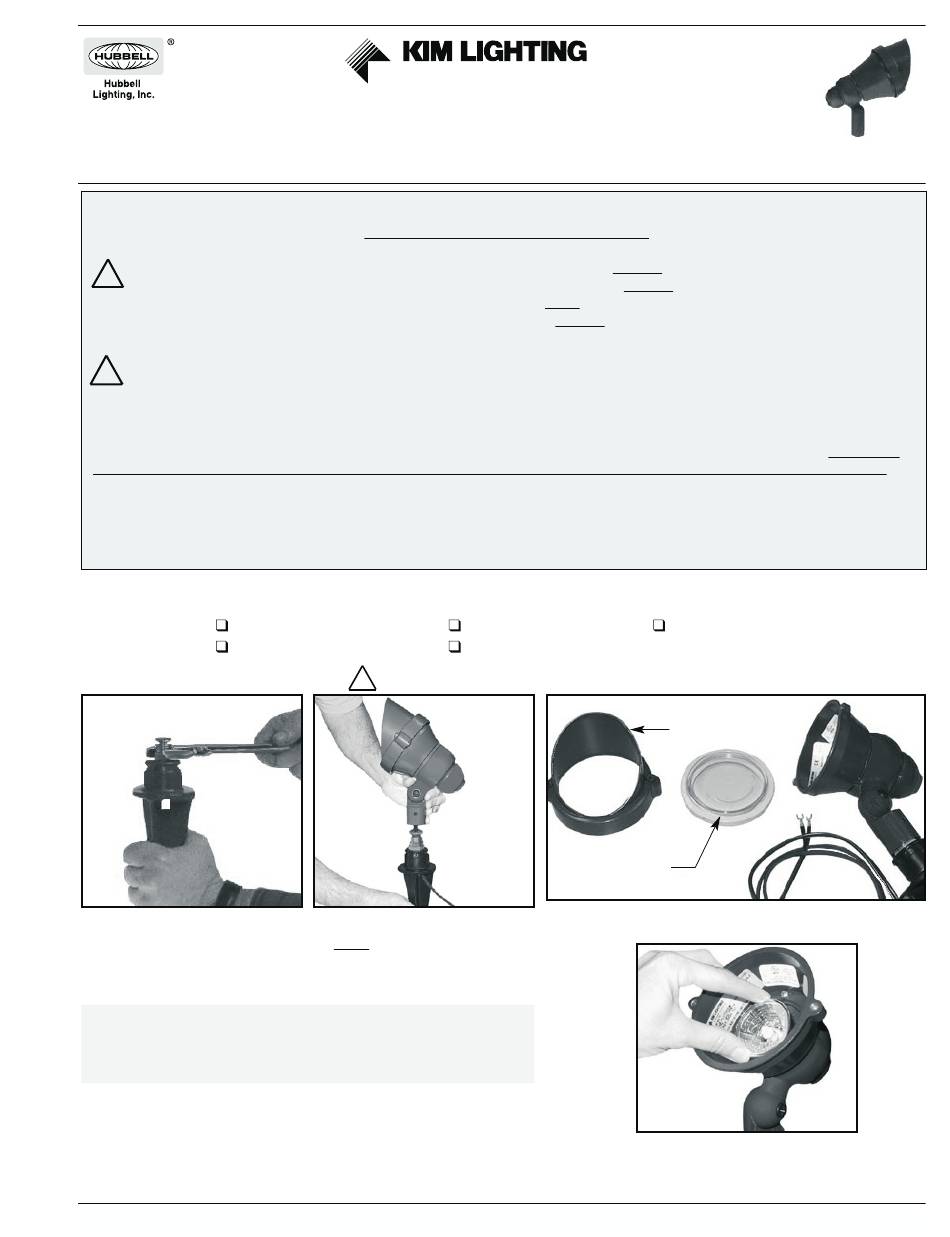

HUBBELL LIGHTING KIM LIGHTING Scarab Ascent Series Installation Manual

- KLV720 / 721 / 725 / 726 Accent Series Installation
Scarab
™
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS: Do not overdrive fixtures with greater
!
than 12 volts or fixture over-heating and short lamp life will occur. Do not overload the transformer by
installing (or relamping) higher wattage lamps than planned. Note: Total wattage of all lamps connected to one
transformer must not exceed the capacity of that transformer. Do not install luminaire within 10 feet (3.04m) of a
pool, spa or fountain.
SAFETY WARNING: When relamping, be sure electrical supply is OFF. Lighted lamp is HOT! Low voltage
!
fixtures can become very hot depending on the lamp wattage used. Glass lenses and metal areas above &
around the lamp can become hot enough to blister hands. Use discretion when touching fixture and be sure to
allow fixture to cool before relamping. When relamping fixture avoid touching the lamp envelope with bare
hands. If touching the lamp is necessary during installation, clean the envelope with alcohol and dry with a
clean, soft cloth before turning ON. Contamination of the envelope may reduce lamp performance. Particular
care should be taken not to locate fixtures where small children can reach them if higher wattages are used.
NOT INTENDED FOR INDOOR USE. DO NOT operate luminaire with missing or damaged lens.
NOTE: Keep the lamp free from impact while burning, as this may deform the filament and shorten the lamp life.
All wiring should be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required: Phillips Screwdriver
Adjustable Wrench
INSTALLATION INSTRUCTIONS:
1. Tighten coupling onto
mounting device. (Consult
Kim Landscape Catalog for
mounting device options.)
IMPORTANT! Do not overload the transformer by installing (or
re-lamping) higher wattage lamps than planned. The total
+wattage of all lamps connected to one transformer must not
exceed that transformer.
Additional wire and connectors may be purchased from
Kim Lighting:
KLV427 #12-2 Cable
KLV432 #8-2 Cable
Revised 7/16/10 EC 100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
IMPORTANT SAFETY INSTRUCTIONS!
B" Hex Wrench
Silicone Grease
Make certain electrical supply is OFF before starting installation.
!
2. Install fixture onto coupling.
Note: Kim "KLV" Mounting
Options can be installed
before fixture is attached.
KLV410 Connector
KLV411 Connector
Status 6
Flatblade Screwdriver
Shield
Lens
3. Remove lens and shield. (Step 3 not required on
L.E.D. version, for L.E.D. fixture skip to step 6).
4.
Install lamp of type and watttage shown on fixture label
and chart on page 2. Do not exceed maxi-mum wattage.
Coat screws with silicone grease. (Step 4 not required
on LED version, for LED fixture skip to step 6).
KLV720
KLV721
KLV725
KLV726
Part No. 95666
