ROOMS TO GO 10124802 Assembly Instructions

Manufactured by AMFU for Rooms To Go
Step
2, 3 Plastic Pyramid Leg
3,4 2" Wood Screw
6 Adhesive Felt Pad
Assembly Instructions
Figure 1
Figure 4
Hardware Pack Location: Behind pillows attached to cushion/pillow tie.
Assembly Instructions
10324818, 10424810, 10924810, 10137518, 10237518, 10337512, 10437514, 10937514, 10137520, 10237522,
1037524, 10437526, 10937526, 10105371, 10205375, 10305375,10405377, 10205373, 10905377, 10105383,
10205385, 10305387, 10405389, 10905389, 10155263, 10255265, 10355267, 10455269, 10955269, 10155251,
10255265, 10355267, 10455269, 10955269, 10155251, 10255253, 10355255, 10455257, 10955257, 10112580,
Hardware
Figure 2
Figure 5
SKU#
10124802, 10224804, 10324806, 10424808, 10124814, 10224816,
10212582, 10112592, 10212594
QTY 1. Remove hardware from red zip bag.
4 2. Place leg at one corner inset 1/8" - 1/4" as
8 shown in Figure 1.
4 3. Place a 2" Wood Screw in the two larger
1 holes on the bottom side of the leg, Figure 2.
4. Using a #2 square bit or phillips bit
screwdriver (not included) , shown in Figures
3, 4, and 5, turn the screw clock-wise until
the leg is snug with the bottom of the piece
of furniture. Use caution not to over-tighten.
Repeat for the second screw.
5. Repeat steps 2-4 for the remaining 3 corners.

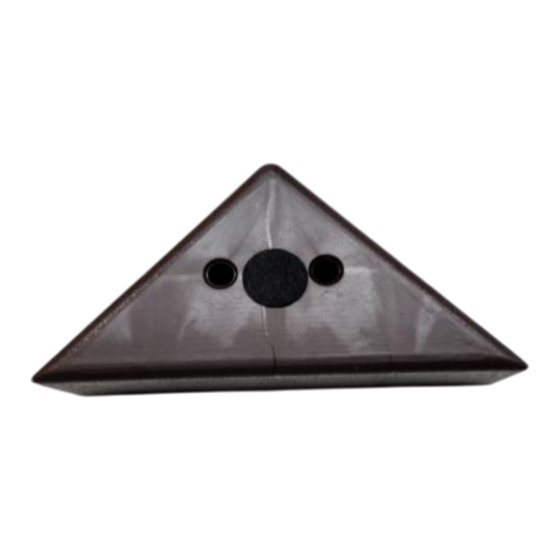

6. Remove adhesive felt pad from paper and
apply to the center of the leg, Figure 6.
Figure 6
Figure 3
