Dual power recliner
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

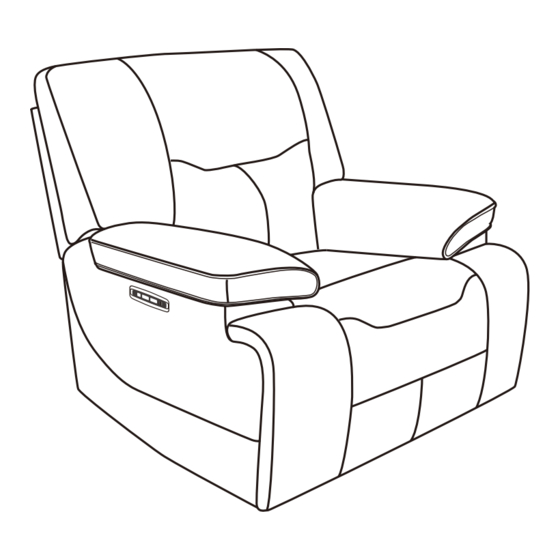

YOUZ E2968
SKU:15629681
DUAL POWER RECLINER
SKU:15629693
Manufactured for Rooms To Go
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15629681 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ROOMS TO GO 15629681

Summary of Contents for ROOMS TO GO 15629681

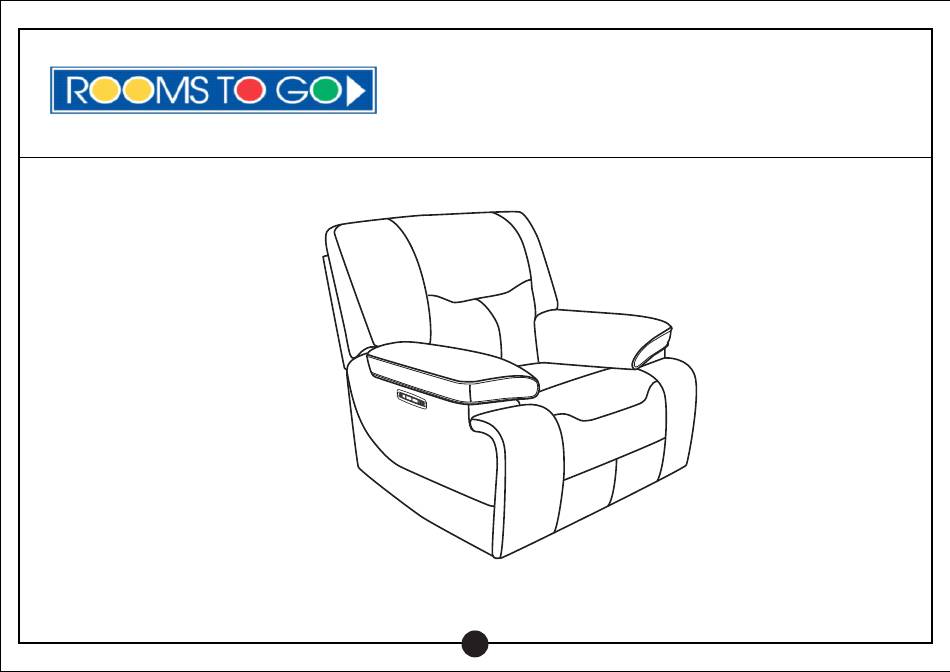

  • Page 1 YOUZ E2968 SKU:15629681 DUAL POWER RECLINER SKU:15629693 Manufactured for Rooms To Go...

  • Page 2: List Of Parts

    List of Parts TOOLS REQUIRED:NO TOOLS REQUIRED PART LIST NO Description Sketch Quantity Back Body LAF ARM RAF ARM Power cord 1.77"* 45*Φ0.23" 4 sets Screw and Nut 0.79"*M6...
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1: Attach 2 screws onto bottom of armrest (C), then install armrest (C) by inserting 2 screws into pre-drilled holes on arm frame of sofa body (B). Screw up nuts clockwise from bottom to fix the armrest. RAF Armrest (D) installation is same as LAF armrest(C).

  • Page 4: Power Connections

    POWER CONNECTIONS Velcroed Flaps IMPORTANTSAFETYINSTRUCTIONS WARNING Misuse can result in FIRE or DEATH by ELECTRICAL SHOCK Misuse can result in FIRE or DEATH by ELECTRICAL SHOCK Read all instructions before using this furnishing. Read all instructions before using this furnishing. DANGER –...
  • Page 5 POWER CONNECTIONS STEP 3:Connect power cord to transformer . Step 4:Connect female headrest plug to male sofa base plug. Power Cord to Transformer Power Headrest Connection Female Plug Male Plug from Back from Base STEP 5:Connect wall plug transformer from Left Arm Seat to outlet. STEP 6:After all connections are made, the green LED will be lit up.

  • Page 6: Electrical Controls

    Electrical Controls STEP 7 1.Press button to raise the headrest forward. 2.Press button to lower the headrest back. 3.Press button to recline the chair to your desired position. 4.Press button to raise the chair to the upright seated position. 5.Press button One button reset.
  • Page 7 WARNINGS *Keep unit at least 24" from all heat sources. *Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. *Maintain minimum of 6″space between thefurniture backs and wall. ″...

  • Page 8: Care And Cleaning

    *If unit must be moved, do not drag. Unit must be lifted in order to be moved. *Do not continuously operate mechanism for more than one minute or unit may go into protection mode by shutting down to prevent overheating. *Unplug unit from power source prior to cleaning mechanism.

  • Page 9: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION No Reclining Check all power connections ( Step 3,4,5,6 ) Make sure headrest power cable is connected to chair cable Headrest Not Working ( Step 3,4,5,6 ) Check all power connections ( Step 3,5 ,6) USB Not Working verify that USB cable functioning Ensure the backrests are properly clipped into the male posts located on seat mechanism.
