Manufactured for Rooms To Go
NO.
Description
A
B
C
D
E
ASSEMBLY INSTRUCTION

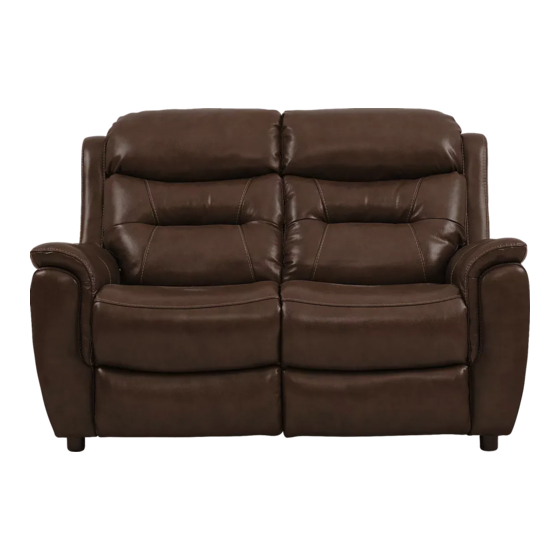

STATIONARY LOVESEAT
HLVN 10021 / 10023 / 10024 /1002A
LIST OF PARTS
Backrest
LSF Wing
RSF Wing
Seat
Plastic Leg
HLVN
10021-02
10023-02
10024-02
1002A-02
Item
SKU:
15500336
15500312
15500324
11500318
Quantity
1
1
1
1
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO Collin Park HLVN 10021-02
Summary of Contents for ROOMS TO GO Collin Park HLVN 10021-02
- Page 1 ASSEMBLY INSTRUCTION STATIONARY LOVESEAT HLVN 10021 / 10023 / 10024 /1002A Manufactured for Rooms To Go HLVN SKU: 10021-02 15500336 10023-02 15500312 10024-02 15500324 1002A-02 11500318 LIST OF PARTS Description Item Quantity Backrest LSF Wing RSF Wing Seat Plastic Leg...
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushion, wings & seat from the packing. Step 2: With seat cushion facing upside down. Unzip bottom fabric & remove the plastic legs from inside. Turn 4 pcs plastic legs clockwise until it has been completely screwed in. Step 3: Positing the female metal receiver brackets over the male metal posts.
- Page 3 WARNINGS * Keep unit at least 24" from all heat sources. * Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. * Do not sit on arms or backrest. * Do not jump or roughhouse on furniture.
