Manufactured for Rooms To Go
NO.
Description
A
(LSF, Middle, RSF)
B
LSF Wing
C
RSF Wing
D
Wall plug
E
transformer
ASSEMBLY INSTRUCTION
HLVN 10021 / 10023 / 10024 /1002A
LIST OF PARTS
Backrest
Seat

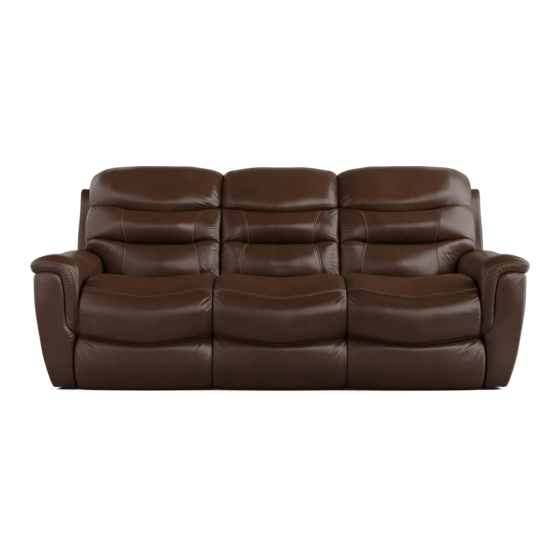

POWER SOFA
Item
HLVN
SKU:
10021-39
15100338
10023-39
15100314
10024-39
15100326
1002A-39
11100310
Quantity
3
1
1
1
1
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO HLVN 10021-39
Summary of Contents for ROOMS TO GO HLVN 10021-39
- Page 1 ASSEMBLY INSTRUCTION POWER SOFA HLVN 10021 / 10023 / 10024 /1002A Manufactured for Rooms To Go HLVN SKU: 10021-39 15100338 10023-39 15100314 10024-39 15100326 1002A-39 11100310 LIST OF PARTS Description Item Quantity Backrest (LSF, Middle, RSF) LSF Wing RSF Wing...
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions, wings & seat from the packing. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click" is heard. Step 3: Insert the wings to the back on both sides.
- Page 3 WARNINGS * Keep unit at least 6" from wall. * Keep unit at least 24" from all heat sources. * Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur.
- Page 4 CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
