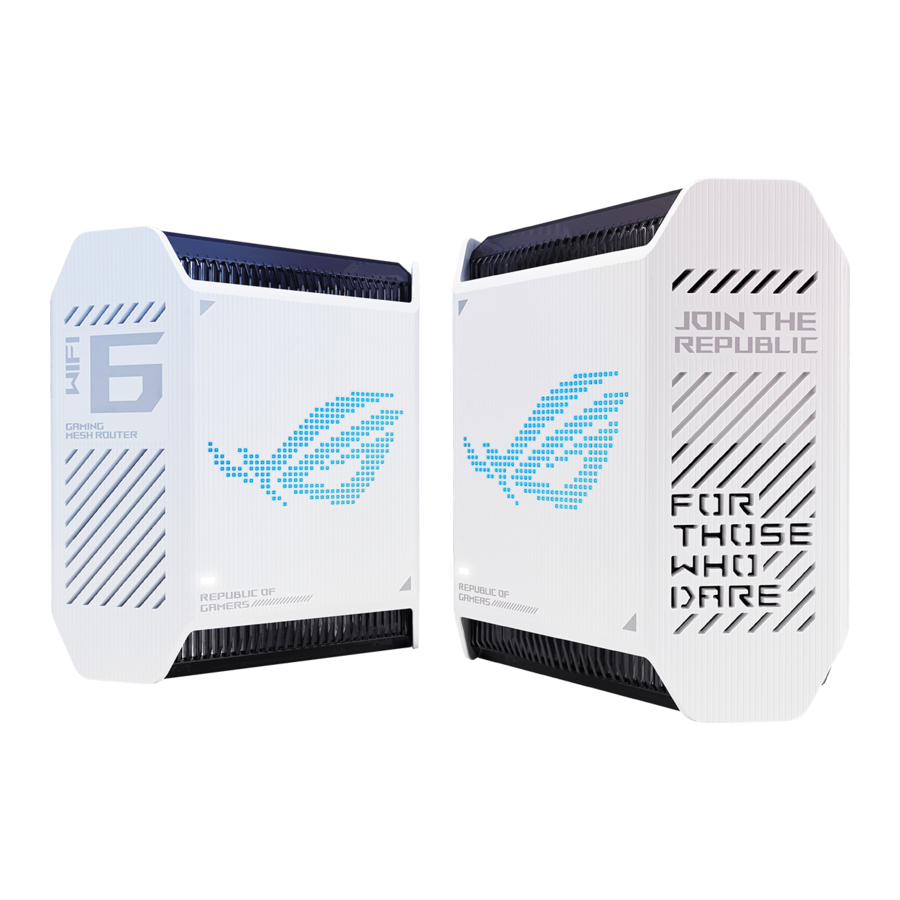

Asus ROG Rapture GT6 (W-2-PK) Manual

Hardware Explanations

GT6 I/O Overview

	2.5G / 1G WAN port Connect your modem to this WAN port with a network cable.
	LAN ports 1-3 Connect your PC to a LAN port with a network cable.

GT6 LED Overview

ROG Rapture GT6 LED indicator

	Solid blue Your ROG Rapture GT6 is ready for setup.
	Solid white Your ROG Rapture GT6 is online and works well.
	Solid red Your ROG Rapture GT6 router has no Internet connection. / Your node is disconnected from the router.
	Solid yellow The signal between your ROG Rapture GT6 router and the node is weak.

Specifications

DC Power adapter	DC Output: +19V with max 2.37A current DC Output: +19.5V with max 2.31A current
Operating Temperature	0~40^oC	Storage	0~70^oC
Operating Humidity	50~90%	Storage	20~90%

Before Setup

Preparing to set up an AiMesh WiFi system
Before Setup

Find two ROG Rapture GT6, and power them on.
Use a network cable to connect your modem to the WAN port of either ROG Rapture GT6. This ROG Rapture GT6 will be the AiMesh router, and the other ROG Rapture GT6 will be the AiMesh node.
The LED indicator turns solid blue to indicate that ROG Rapture GT6 is ready for setup.

ASUS Router App

Download free ASUS Router APP to set up and manage your router(s).

AiMesh Setup Steps

Setup Steps

Prepare
Place your ROG Rapture GT6 router and node within 1~3 meters of each other during the setup process.
AiMesh node
Keep your AiMesh node powered on and standby for AiMesh system settings.
Launching ASUS Router APP
Launch ASUS Router APP, and then follow the on-screen instructions to finish the AiMesh setup.

NOTES: When you're using a wireless backhaul to connect your router and AiMesh node, the WAN port on your AiMesh node can be used as a LAN port providing up to 2.5G transimission speed.

Troubleshooting

If your AiMesh router cannot find any AiMesh node nearby or synchronization fails, please check the following and try again.

Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 1~ 3 meters.
Your AiMesh node is powered on.

Relocation

THE BEST PERFORMANCE
Locate the AiMesh router and node at the best place.
Relocation
NOTES: To minimize interference, keep the routers away from devices like cordless phones, Bluetooth devices and microwave ovens. We recommend that you place the routers in an open or spacious location.

FREQUENTLY ASKED QUESTIONS

Does the AiMesh router support Access Point mode?

Yes. You can choose to set the AiMesh router as router mode or access point mode. Please go to web GUI (http://www.asusrouter.com), and go to the page Administration > Operation Mode.

Could I setup wired connection between AiMesh routers (Ethernet backhaul)?
Yes. AiMesh system supports both wireless and wired connection between AiMesh router and node to maximize throughput and stability. AiMesh analyzes the wireless signal strength for each frequency band available, and then determines automatically whether a wireless or wired connection is best to serve as the interrouter connection backbone.

Follow the setup steps to establish a connection between the AiMesh router and node via WiFi first.
Place the node in the ideal locations for best coverage. Run an Ethernet cable from the LAN port of the AiMesh router to the WAN port of AiMesh node.
AiMesh system will auto-select the best path for data transmission, whether wired or wireless.

Safety Notices

Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
DO NOT place or drop objects on top and do not shove any foreign objects into the product.
DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
DO NOT cover the vents on the product to prevent the system from getting overheated.
DO NOT use damaged power cords, accessories, or other peripherals.
If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
DO NOT mount this equipment higher than 2 meters.
